Dimensional measurements of electrolytic capacitors

Dimensional measurements of electrolytic capacitors

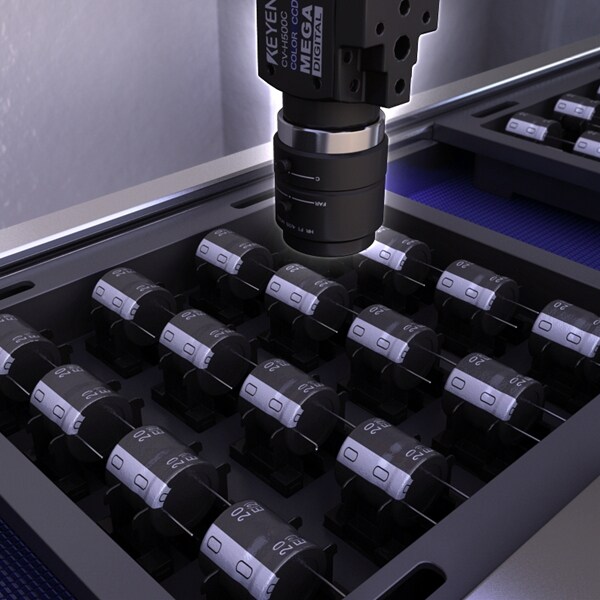

The vision system measures the surface, lead dimensions, and bend.

Edge position information can be acquired by setting the measurement areas to cover the profile of the capacitor. Based on the acquired information, it is possible to easily calculate such things as the maximum/minimum width, maximum/ minimum position, angles of two approximate-lines, and distances.


Dimensional measurements were partially done by using the basic edge inspection tools. The XG Series can perform more specific dimensional measurement using calculations to accurately manipulate dimensional information of the processed image.


  • Offering a lineup of up to 21 megapixel area cameras and 8K line scan cameras, the XG Series contains powerful vision system technology providing flexibility and power to solve a wide range of applications.

  • The XG Series offers programming directly with the controller or advanced programming using the optional Vision Editor development software.

  • The CV-X Series is an innovative, user-friendly vision system that uses high-speed cameras to solve inspection applications across all manufacturing industries. The CV-X vision system incorporates cameras and lighting to stably image parts in-line to improve efficiency and ensure quality. Industries served include automotive, electronics, medical, food and packaging, and any process that requires inspection on high-volume parts. Common applications include defect detection and surface inspection, presence of parts and features, assembly verification, vision guided robotics, measurement, and code reading.

  • The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.

  • Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
