Flaw/dent detection on forged products

Flaw/dent detection on forged products

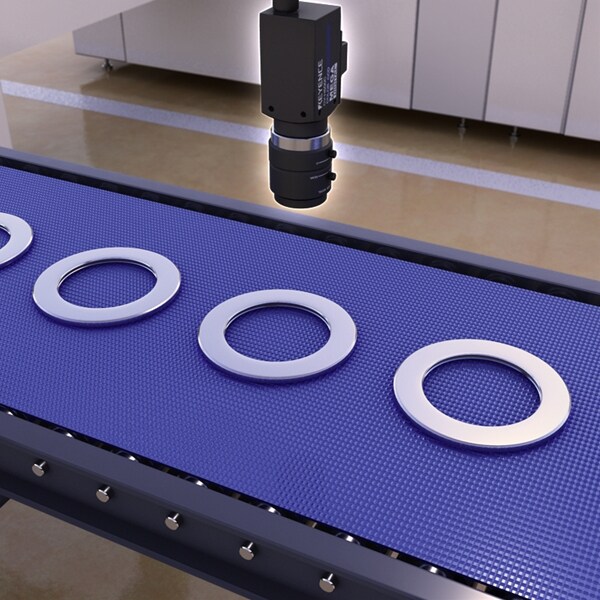

The vision system detects dents on forged products.

The XG Series isolates contrast changes by cancelling subtle gradations in the background using a blur filter and the Real-time Shade Correction filter. By causing the normal surface contours to blend together and then removing the variations caused by uneven lighting, it is possible to isolate just the flaws and dents.


Dents were detected with a Stain Tool and a Subtraction filter, but the variations in surface contour caused the inspection to become unstable. The XG Series makes it possible to stably detect dents with the combined use of the Real-Time Shade Correction filter and the Blur filter.


  • Offering a lineup of up to 21 megapixel area cameras and 8K line scan cameras, the XG Series contains powerful vision system technology providing flexibility and power to solve a wide range of applications.

  • The XG Series offers programming directly with the controller or advanced programming using the optional Vision Editor development software.

  • The CV-X Series is an innovative, user-friendly vision system that uses high-speed cameras to solve inspection applications across all manufacturing industries. The CV-X vision system incorporates cameras and lighting to stably image parts in-line to improve efficiency and ensure quality. Industries served include automotive, electronics, medical, food and packaging, and any process that requires inspection on high-volume parts. Common applications include defect detection and surface inspection, presence of parts and features, assembly verification, vision guided robotics, measurement, and code reading.

  • The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.

  • Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
