Applications Wide Area CMM WM-6000 series

Dimension and form measurement of metal frames

3D/GD&T Measurement is possible for a variety of characteristics, including width, height, squareness, and hole distance.

Measurement of equipment post assembly and adjustment

Measurement of the center of gravity, position, and other factors is possible.

Whatever the job, wherever the job

Measurement can be performed for targets without drawings or models, and the measurement data can be output as CAD data.

Shape and form measurement

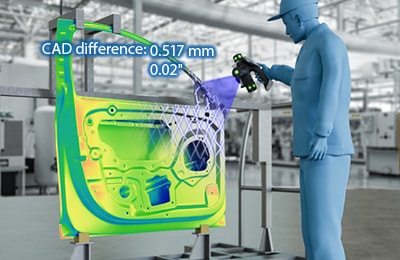

Scanning measurement can be performed for free-form shapes, complex curves, and other unique shapes.

Check material allowance for dies, molds, and castings

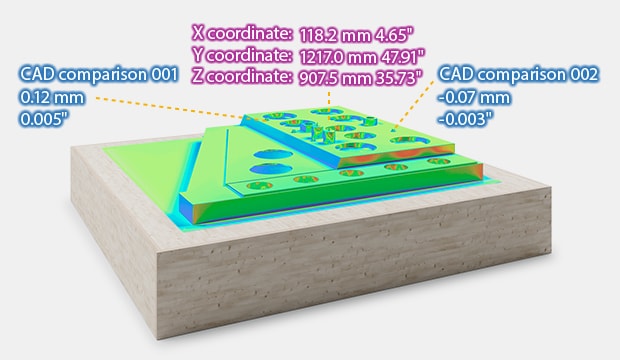

The machining allowance can be checked by comparing scanned data with CAD data.

Post-welding strain

Clear identification of correction points is possible, reducing rework time.

Steel frames

Measurement of steel frame joints, step height, etc.

Concrete

Diagonal measurement of segments, etc.

Construction machinery

Dimensional measurement of counterweights, etc.

Slitter equipment

Slitter roll position measurement, etc.

Jigs/Inspection jigs

Inspection jig and CAD data comparison position measurement, etc.

Automotive components

Battery surface flatness measurement, etc.

Wooden molds

Wooden casting mold and CAD data comparison shape confirmation, etc.

Propellers

Casted product machining allowance checking, etc.
