Image Dimension Measurement System

IM-X1000 series

Catalogs View Catalog

New

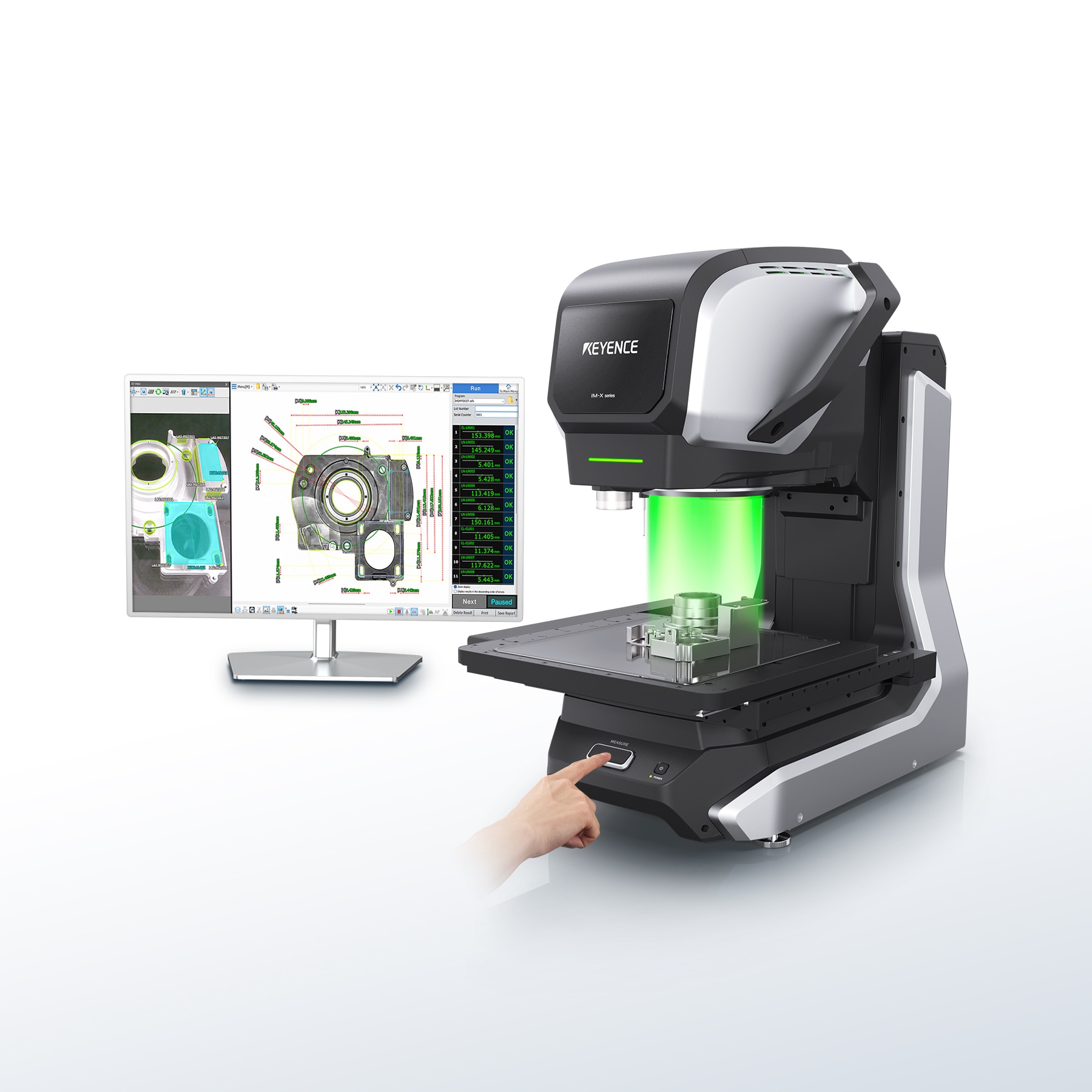

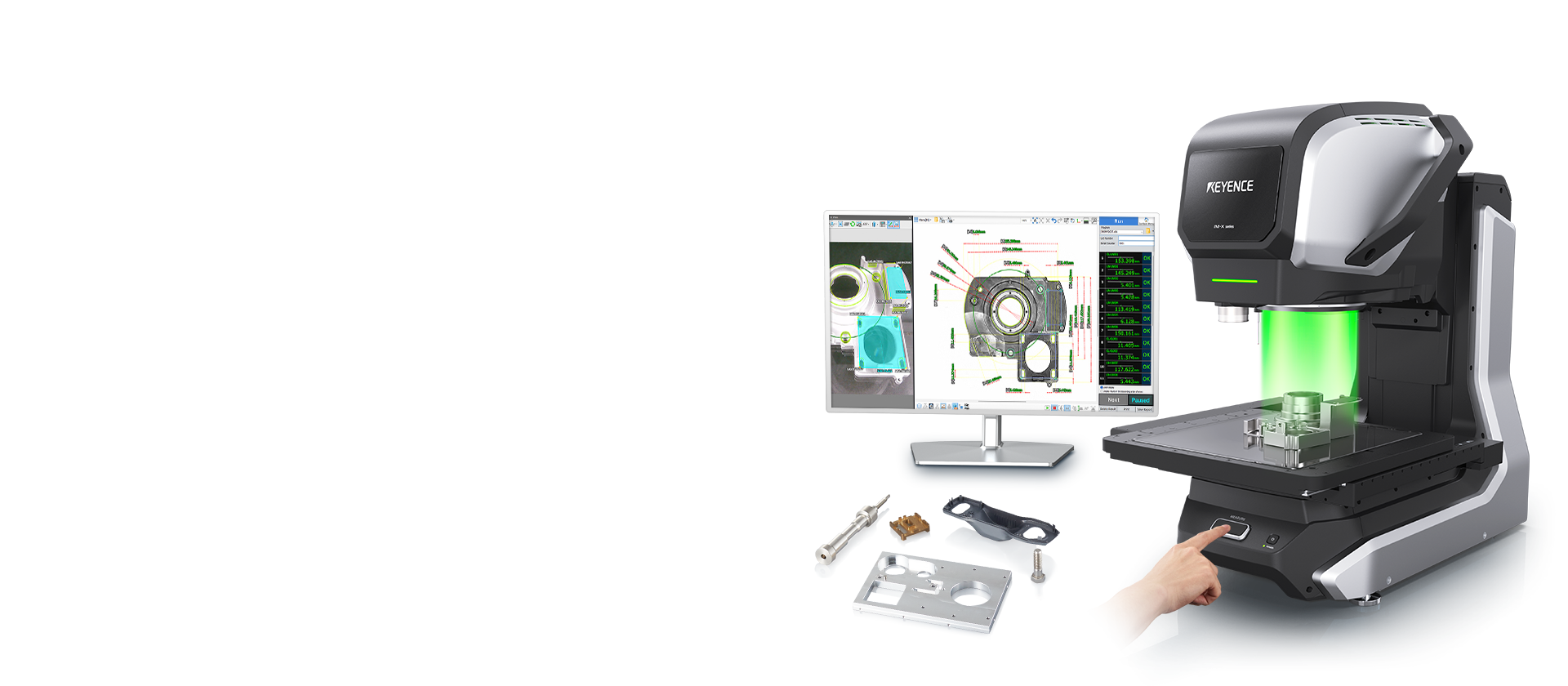

Image Dimension Measurement System IM-X1000 series

Significantly Increased Measurement Range

"Place-and-Press" Instant Measurement

  • Consistent measurement results

  • Automatic drawing import

  • Large stage up to 500 mm (19.69″) in size

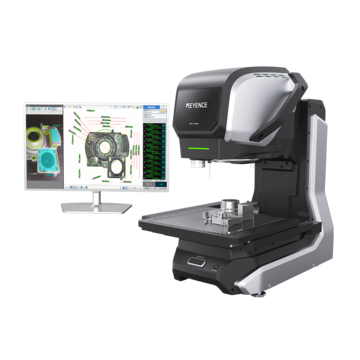

IM-X1000 series - Image Dimension Measurement System

Instantly measure your parts with the push of a button. The Instant Measurement System takes place-and-press measurement to the next level with a significantly increased measurement range of up to 500 mm (19.69″) and multisensor capabilities including; optical, probe, laser, and rotary. This system features a new automatic drawing import function to help automate programming by importing CAD files and now PDF, JPEG and paper drawings. Furthermore, the built-in Smart Assist tool auto-optimizes focus and lighting for expert level programming and optimal performance even with no prior optical metrology experience. This new Instant Measurement System enables fast, easy, and accurate inspections, even on large parts.

View Catalog IM-X1000 Series Image Dimension Measurement System Catalog

Price

Ask an Expert

1-888-539-3623

Features

For a Wide Range of Applications, From Small Parts to Large

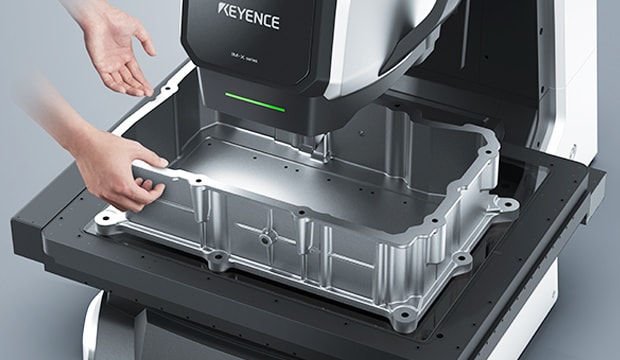

New Feature: Extra-Wide Large Stage (500 mm (19.69″) in Size)

The system has a significantly increased measurement range that is 3.3x that of previous generations. Furthermore, it can handle taller parts with a maximum height of 2.7x that of previous generations. This latest system makes it possible to measure large parts with a single operation.

  • Extra-wide large stage with dimensions of X: 500 mm × Y: 400 mm (X: 19.69″ × Y: 15.75″)
  • Increased Z range up to 200 mm (7.87″)

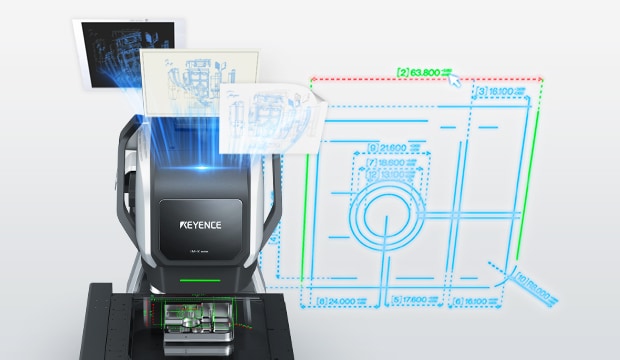

Import Drawings and Automatically Create Programs

From Drawing to Program in 3 Steps

Easily create programs by importing CAD, PDF, JPEG and even paper drawings. Just select your critical dimensions, design values, and tolerances to create a program.

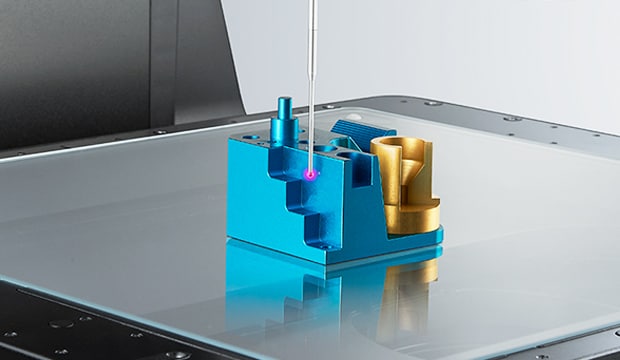

Accurate Measurement in Three Dimensions

The low-measuring-pressure touch probe moves freely vertically, horizontally, and at an angle, allowing the desired points to be measured with a soft touch. Even parts with 3D shapes can be measured accurately.

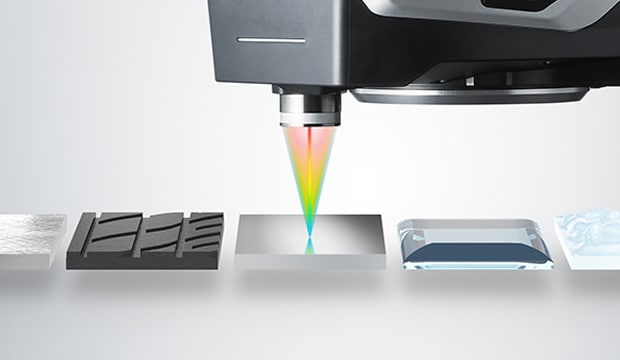

Instant Height Measurement of Any Shape or Material

The built-in multi-color laser instantaneously captures the height of the specified location on the part, allowing for accurate measurement regardless of the material.

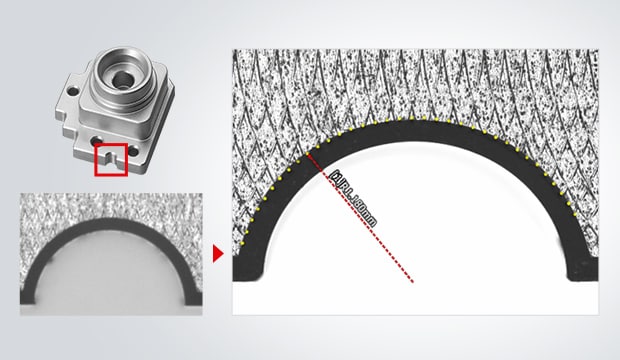

Crisp, Clear Images for Precise Measurement

The built-in 20-megapixel CMOS sensor enables stable and accurate measurement of even the finest and most complex measurement points.

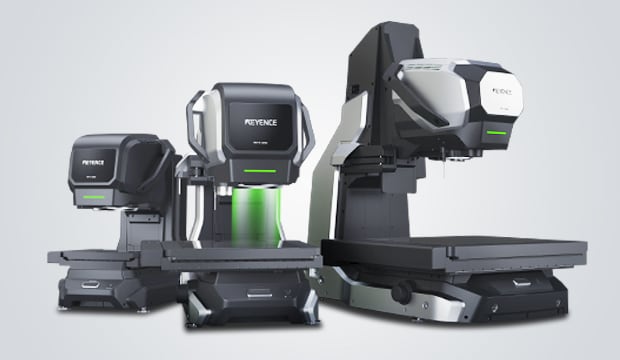

A Modular System Designed to Meet Your Inspection Needs

The stage and head can be separated, allowing you to use the combination that is most suitable for your measurement needs. Heads with different magnifications and viewing angles as well as three sizes of stages are available.

  • Head types: wide-field head and high-accuracy head
  • Stage types: small stage (200 mm × 200 mm (7.87″ × 7.87″)), medium stage (300 mm × 300 mm (11.81″ × 11.81″)), and large stage (500 mm × 400 mm (19.69″ × 15.75″))

* The measurement range differs depending on the combination of the head and stage. Learn more in the catalog.
