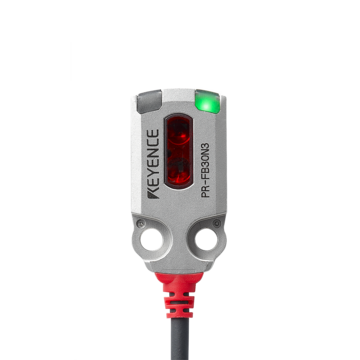

Self-contained Miniature Photoelectric Sensor

PR-M/F series

Catalogs View Catalog

Self-contained Miniature Photoelectric Sensor PR-M/F series

Ultra-Compact Metal Photoelectric Sensor

PR-M/F series - Self-contained Miniature Photoelectric Sensor

The PR-M/F Series is the smallest metal photoeye in its class with an SUS316L stainless housing and offers both thrubeam and reflective options. Each model features a fixed field, meaning no calibration is required. This series has a range of up to 1.2m (3.94') and offers hard wired and M8 connector cable options.



Durable and Long Life

The “hybrid structure” of the PR-M/F features an SUS316L stainless steel body that is also resin filled. The NEMA and IP rated enclosure means these units are highly resistant to oils, acids, and even alkaline detergents.

Stable Operation

Stable Operation

The PR-M/F Series is designed with Background Suppression and Automatic Cross Talk Prevention to provide highly stable detection. External light or movement will not interfere with the sensor.

Ease of Use

Ease of Use

Installation is made simple because mounting requires only two M3 screws. Sensitivity adjustment is not needed, as the sensor's fixed range allows for immediate use.
