CMOS Multi-Function Analog Laser Sensor
IL series
CMOS Multi-Function Analog Laser Sensor IL series
Achieve Stable Detection, Unaffected by Color or Material
-
High stability made easy for anyone
-
Wide detection range, from 20 mm to 3500 mm 0.79″ to 137.80″
-
Multi-function amplifier with an all-in-one design
IL Series CMOS multi-function analog laser sensors are reflective laser displacement sensors that provide the best-in-class detection ability and stability at a reasonable cost. Stable detection is possible without tuning for workpiece types or their surface conditions, so the IL Series can be added to production lines to help make setup, changeover, and product changes easier. With a wide-ranging lineup of sensor heads, including high-accuracy models and long-range (up to 3.5 m 11.5') models, these laser sensors can be applied to diverse applications thanks to their broad dynamic range and environmental resistance. 1 μm repeatability allows for use in high-tolerance detection setups that previous sensors could not stably provide.
Features
Easily Achieve Highly Stable Measurement on Any Material Without False Detections

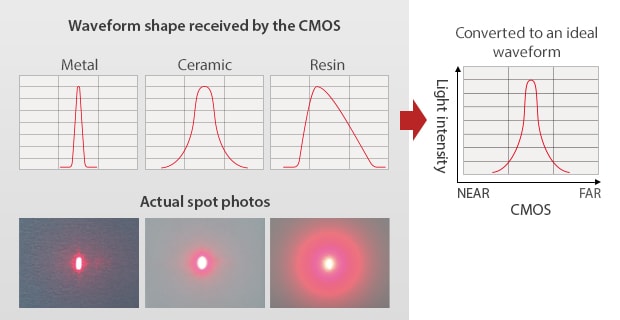

Equipped with a super-resolution algorithm, this sensor achieves stable, tuning-free detection even on workpieces that were conventionally difficult to detect, such as those with metal hairline finishes, resins, and rubbers.

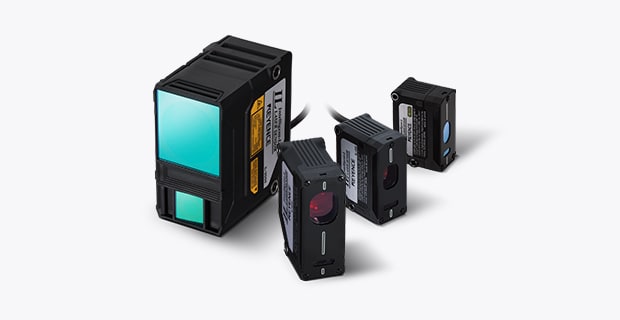

A Lineup of Nine Heads Are Available for Applications Ranging from 20 mm to 3500 mm 0.79″ to 137.80″
Supports all kinds of situations, from high-precision to long-range applications. Stable detection is achieved even in high-temperature or harsh environments, with an install distance of up to 3500 mm 137.80″.
Applications
Measuring the height of a chip after bonding
Press stroke control

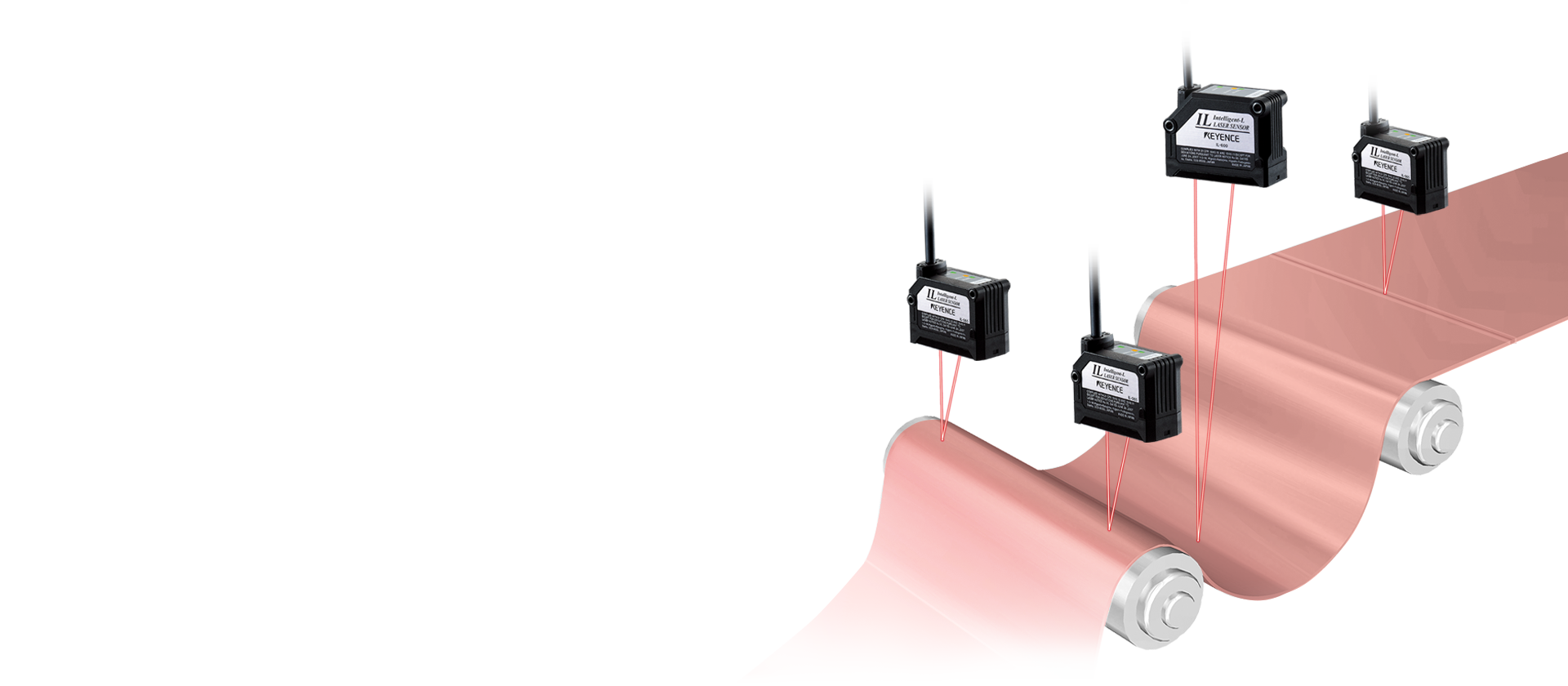

Sheet material thickness detection
Stacker device counts and stacking disturbances
