I want to monitor PLC device values without creating a screen.

This section introduces how to monitor PLC device values without creating a screen with parts such as value displays.

Setting procedure

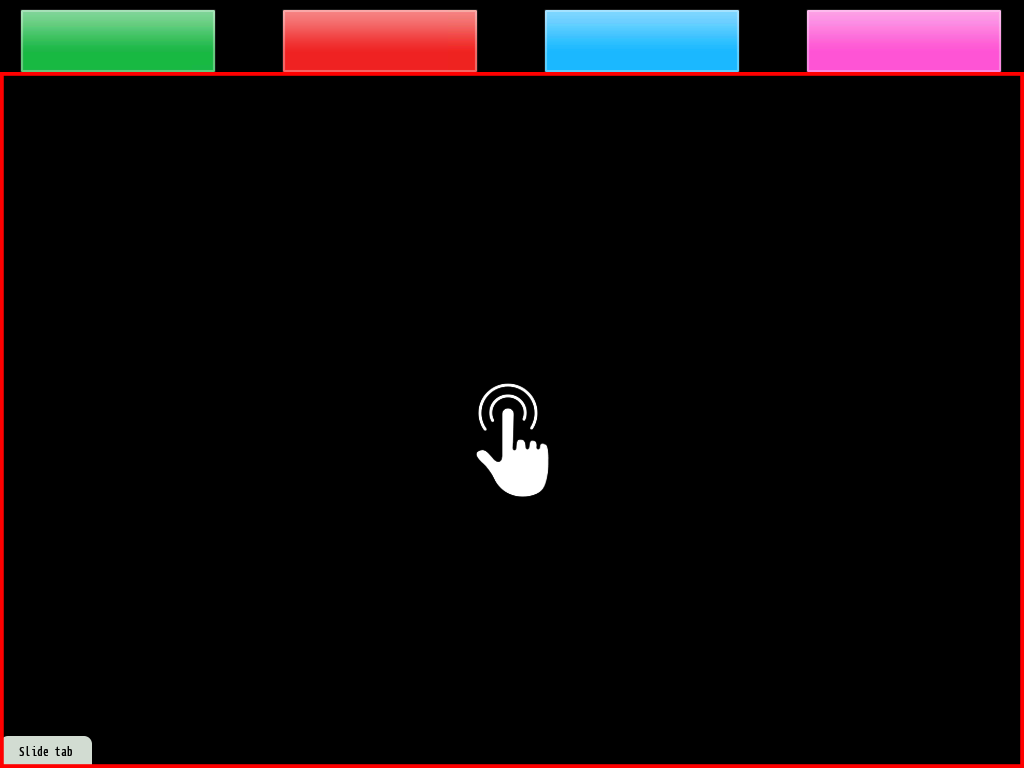

1. Hold down a part of the screen on which there are no switches.

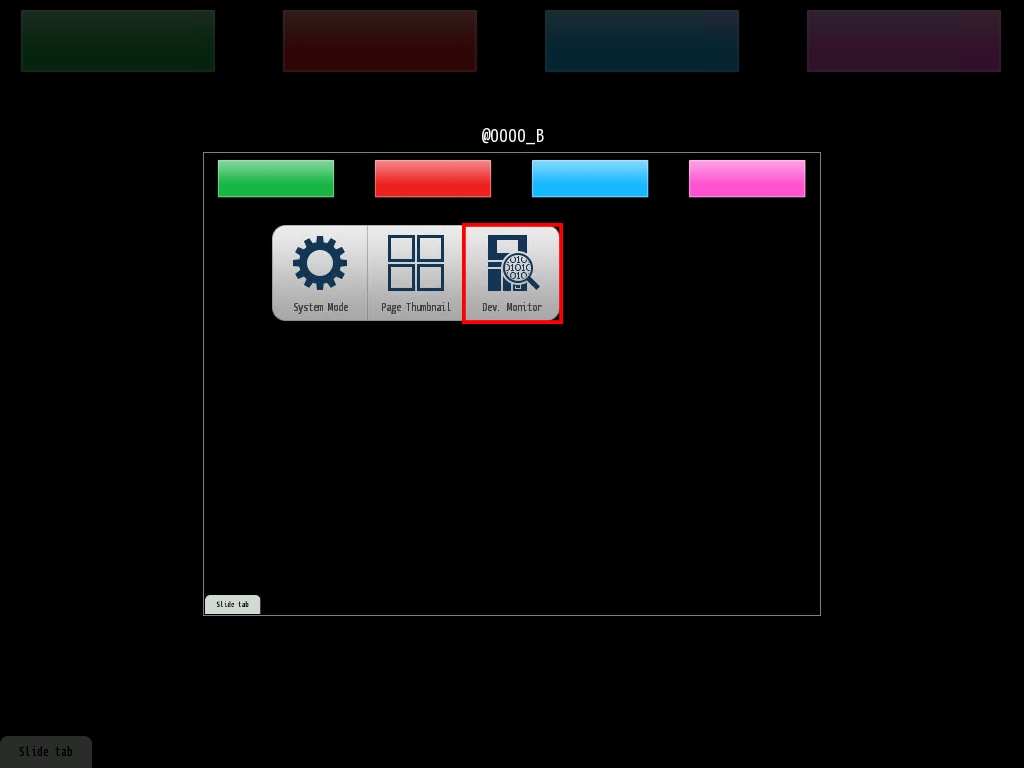

2. The system menu appears. Tap [Dev. Monitor].

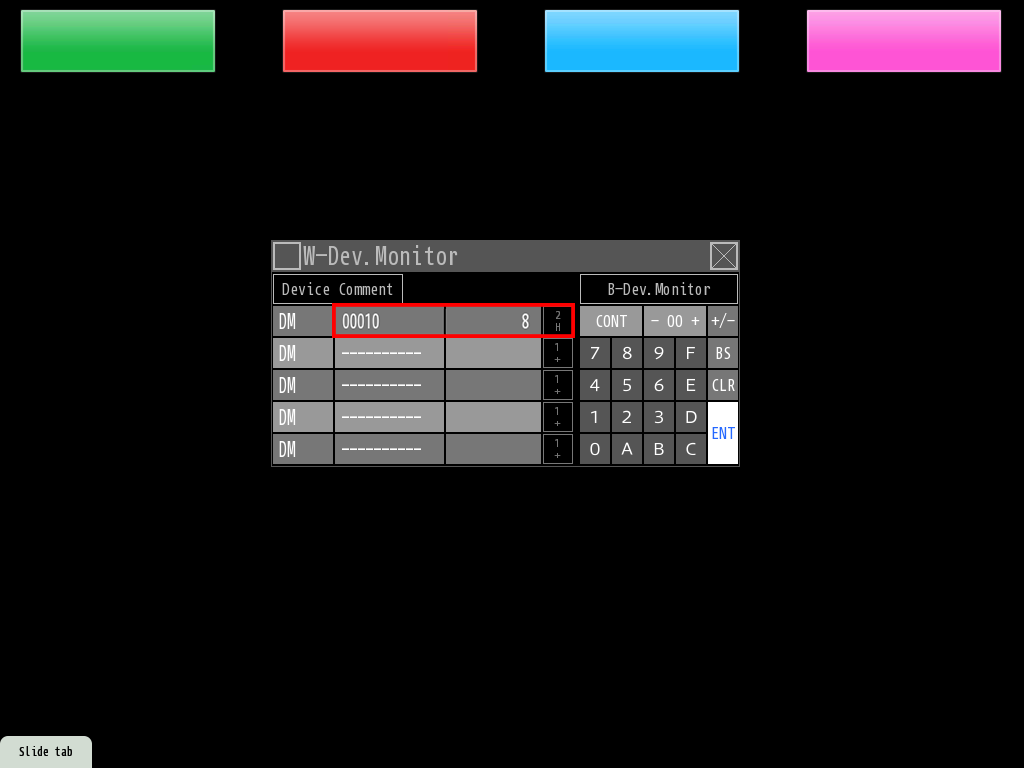

3. The device monitor is displayed. Specify a device to monitor its value.
You can also change device values.

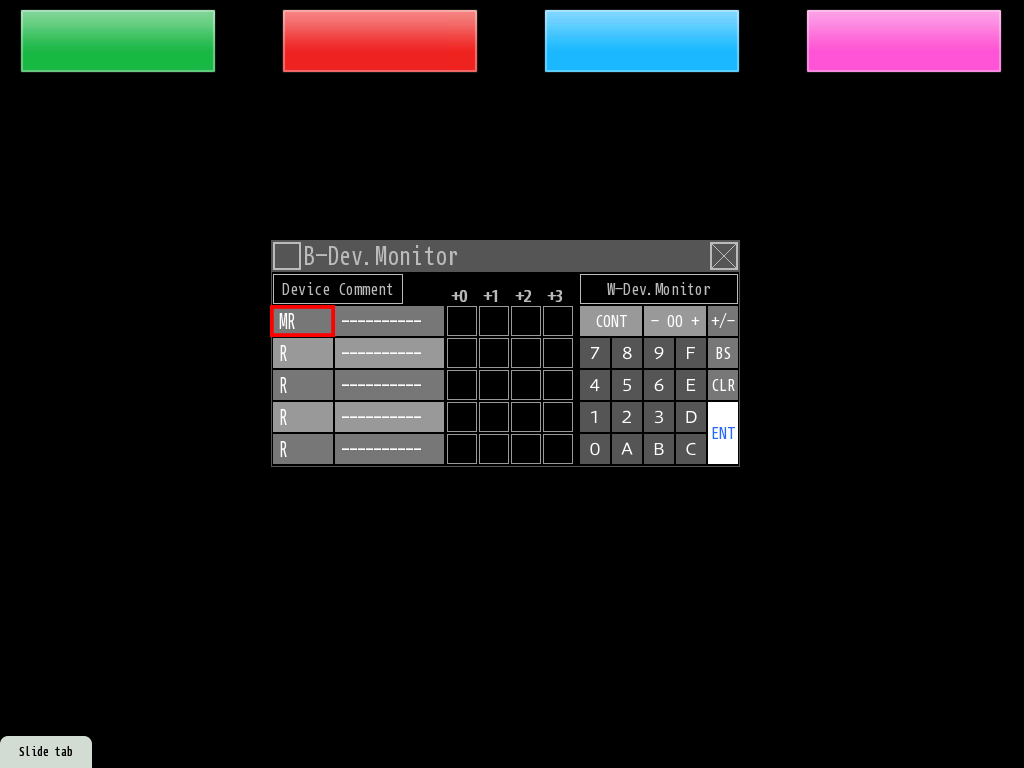

4. Tap the button at the top of the ten-key pad to switch between bit devices and word devices.

5. Tap the device classification to change the type of monitored device.
