I want to change the screen data without using a PC.

By storing on a memory card screen data to load on the VT5, you can change the screen on the VT5.
This section explains how to create screen data to load and how to change the screen on the VT5.

Creating screen data to load

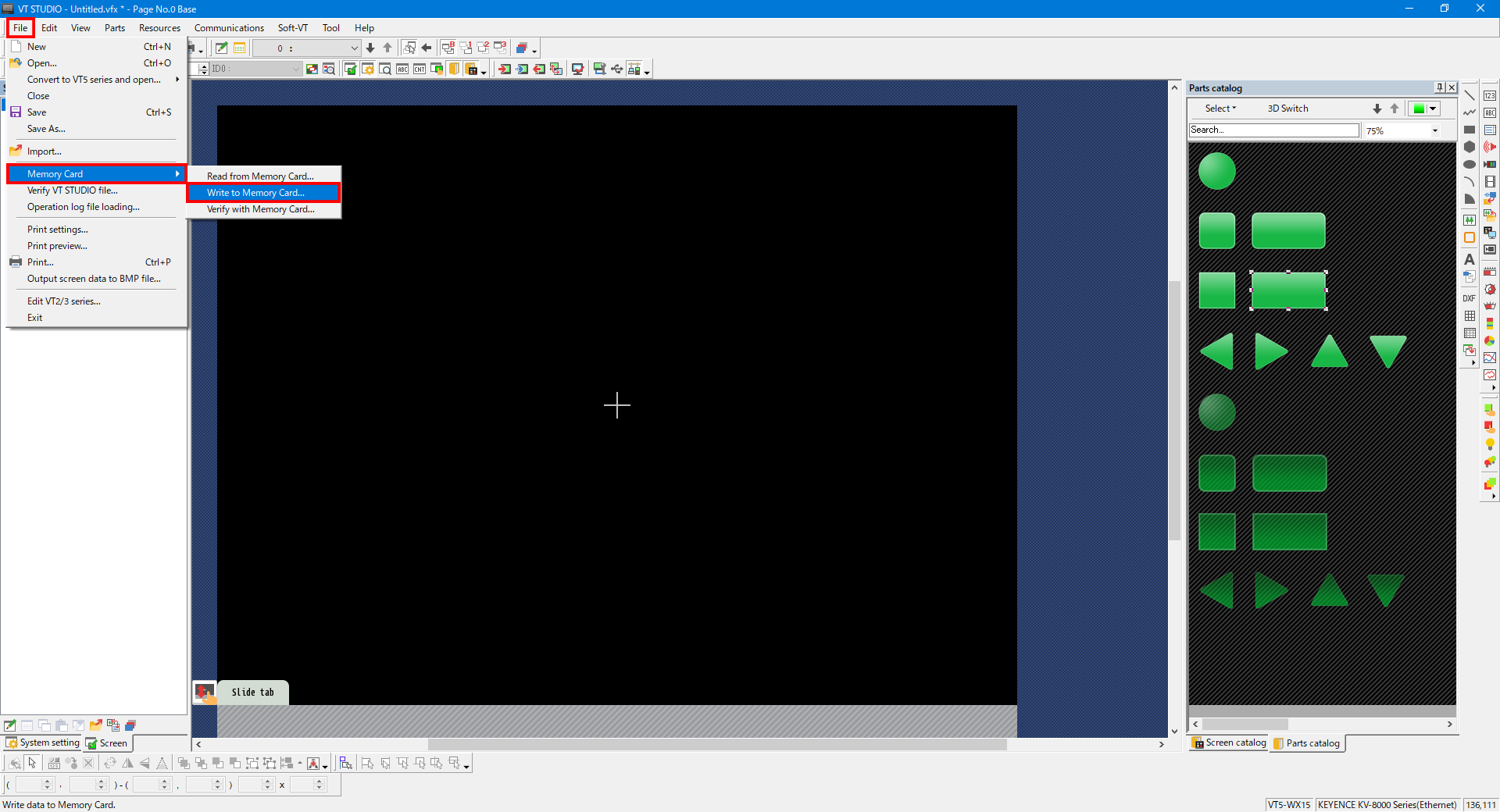

1. Use VT STUDIO to create screen data to load.
From the menu, select [File] -> [Memory Card] -> [Write to Memory Card].

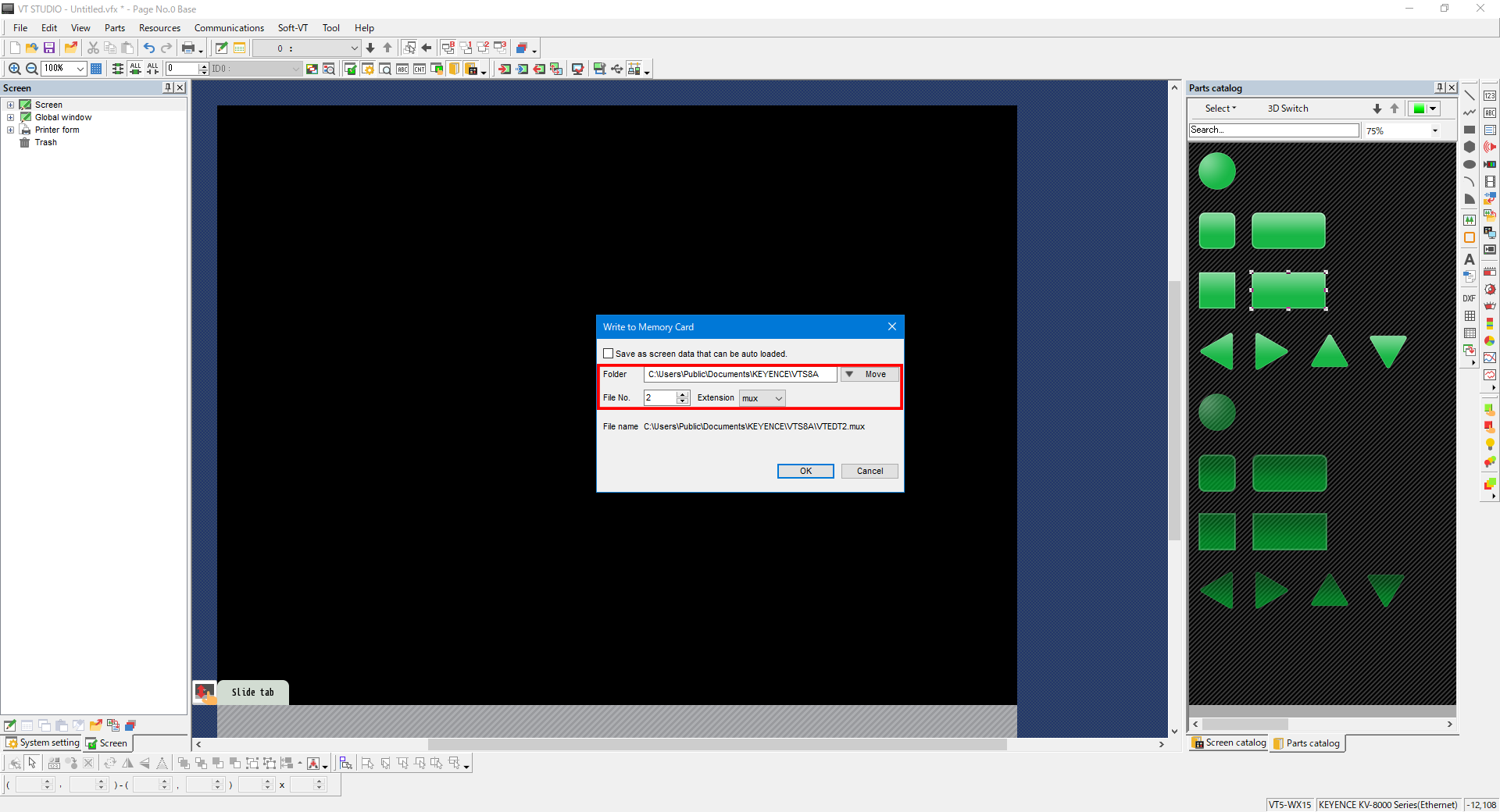

2. Select the folder in which to create screen data to load, and then specify the file number.
Select the “Save as screen data that can be auto loaded” check box to set this screen data as that which will be loaded automatically when the power turns on.

3. Store the created file to load on a memory card, and then insert this memory card into the VT5.

  • *
    Do not change the file name.

Changing the screen data

This section explains how to change the screen data by loading a file.

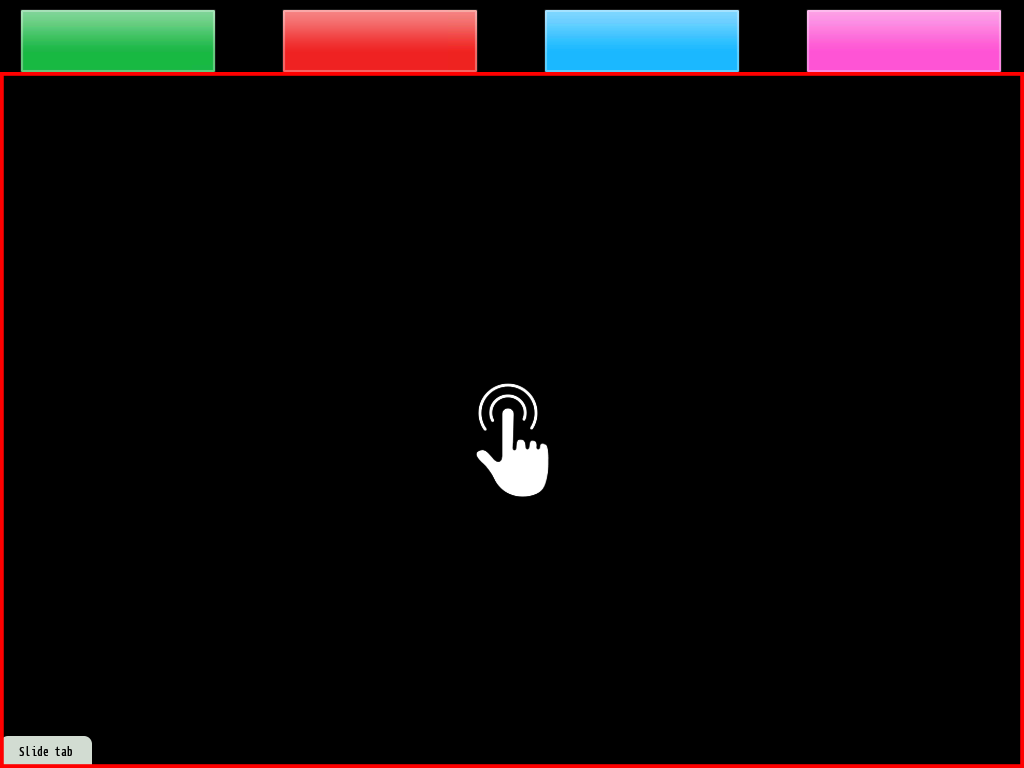

4. Hold down a part of the screen on which there are no switches.

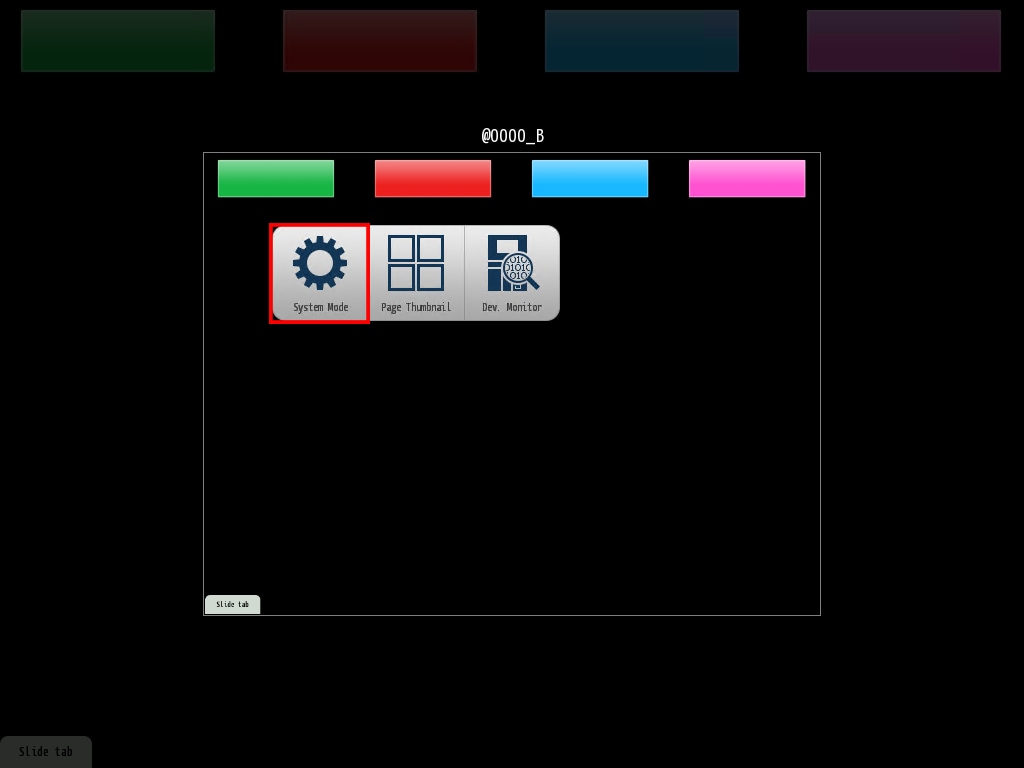

5. The system menu appears. Tap [System Mode].

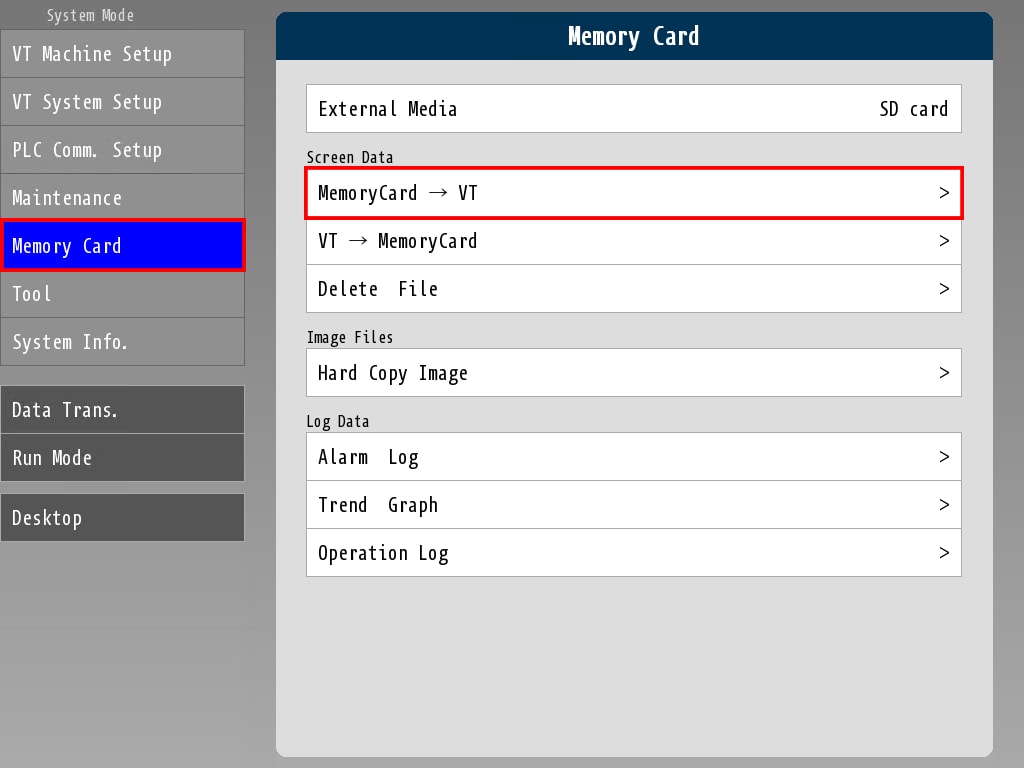

6. Tap [Memory Card] -> [MemoryCard -> VT].

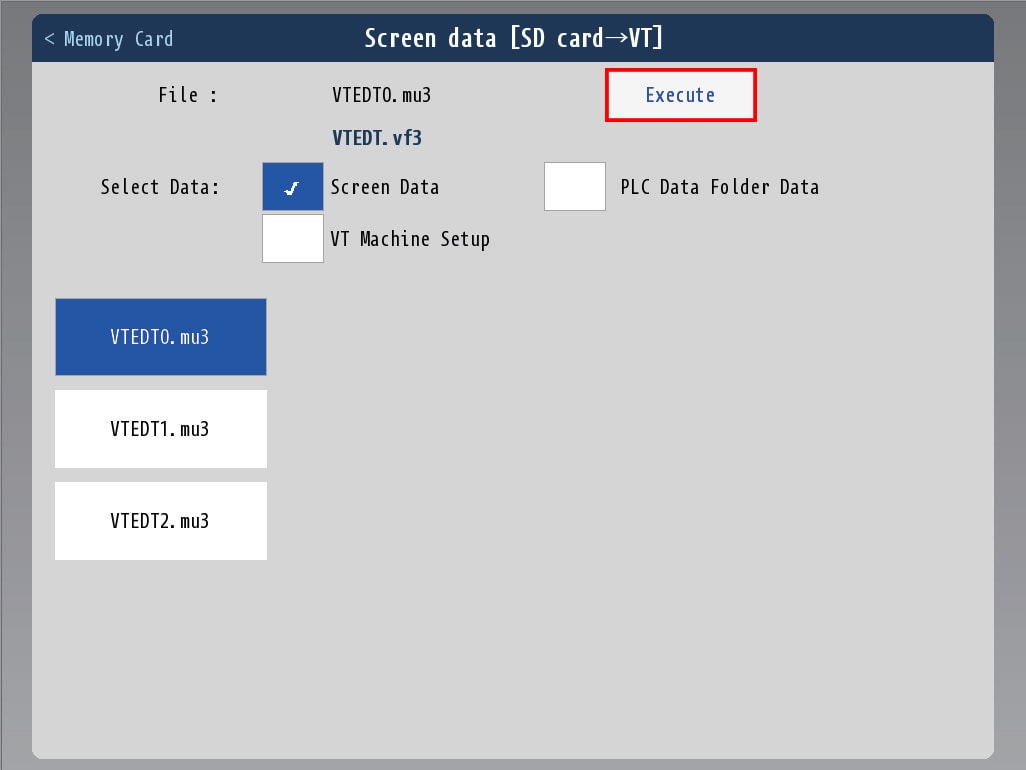

7. Select the screen data and details to load, and then tap [Execute] to change to the selected screen.
