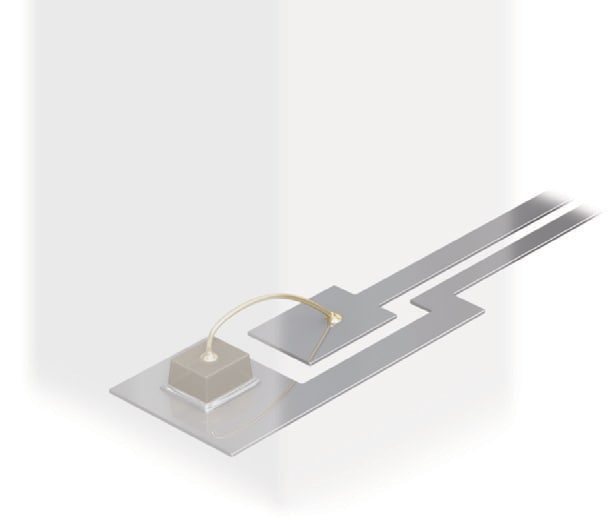

Height and profile of wire bonding

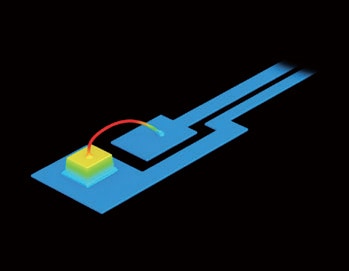

As electronic components become thinner, controlling peak wire bond height is becoming more critical. The WI Series captures a 3D image of an area in a single shot, making it possible to measure the height difference between the components and wire’s peak height. With a minimum measurement pitch of 4 µm (0.000157"), the WI Series supports even small diameter wires.
