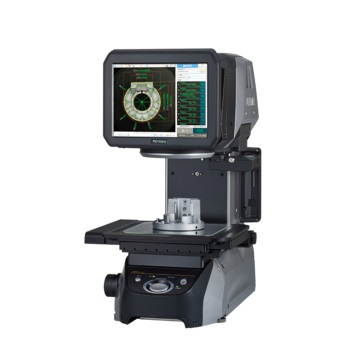

Image Dimension Measurement System IM-7000 series

IM-7000 series - Image Dimension Measurement System

The IM Series Instant Measurement System is an automated optical comparator that can perform up to 99 dimensional measurements in 3 seconds or less at the push of a button. The unit also automatically records measurement data and creates detailed inspection reports. Our latest IM-7030T model has an 8x12" measurement area for large or more space for multiple small parts. The unit also has a built-in automated height gauge for Z-axis measurements.

Features

  • Measure larger targets on the 300x200mm stage
  • Measure a large amount of parts simultaneously
  • Measure height and depth
