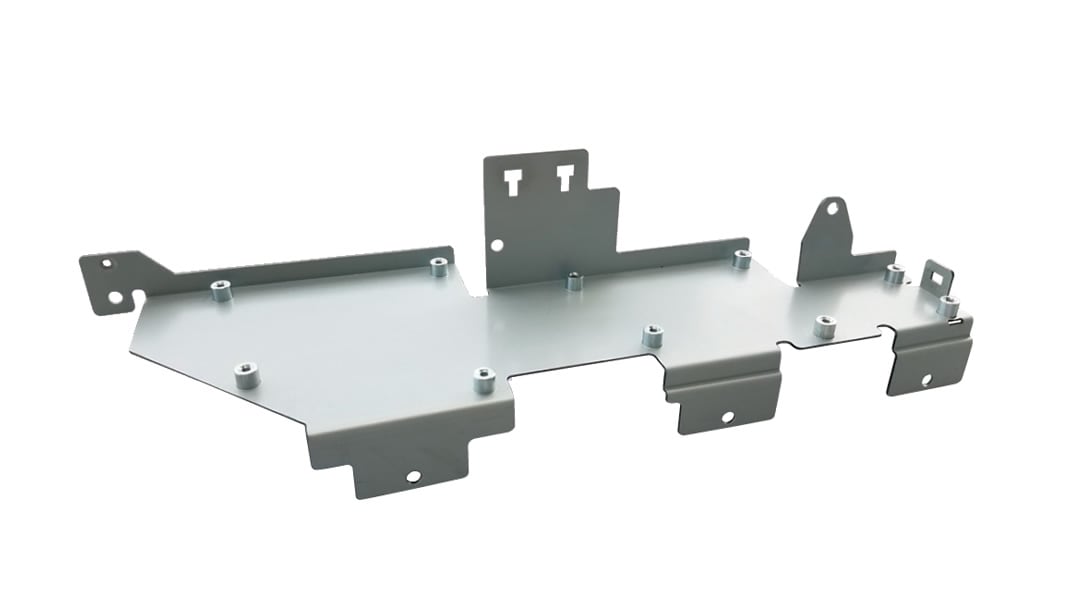

Measurement of pressed metal plates
-
Industry:
- Metals
-
Products:
- 3D Measurement Systems
The distance from a virtual line (the intersecting line between two planes) to a hole position can be measured. The XY coordinates of a boss-shaped screw hole on the metal plate can be measured.

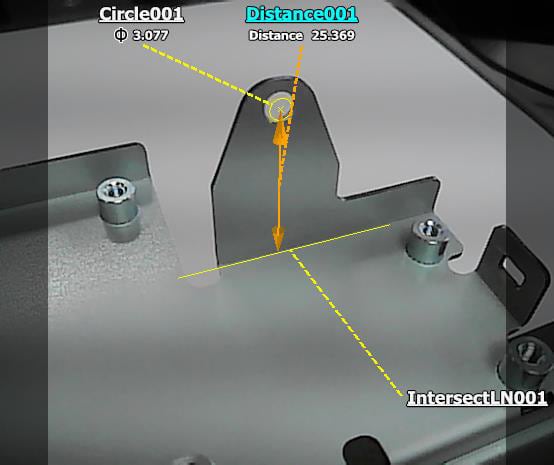

Distance from virtual line to hole position

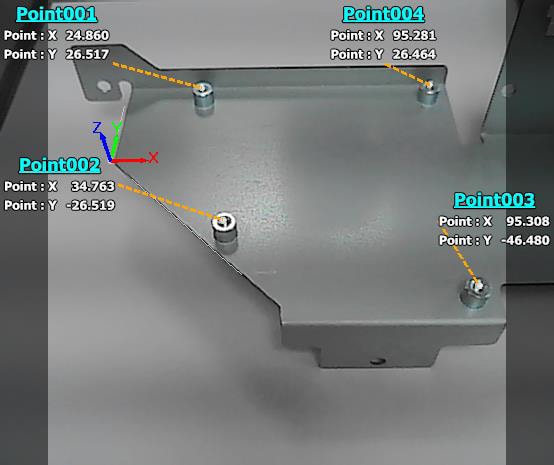

Measurement of the XY coordinates of a boss-shaped screw hole from a virtual point
