Connector terminal coplanarity measurement

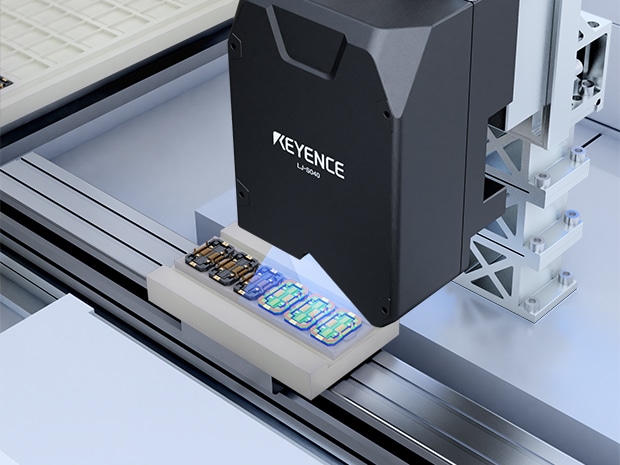

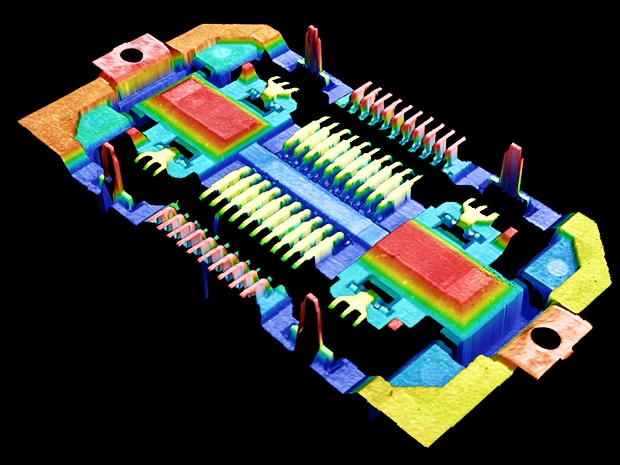

The LJ-S8000 Series can be used to inspect for connector terminal warpage. Unlike conventional area cameras, which only look at grayscale information, 3D dimension measurement also considers height information to enable highly stable results. A wide variety of inspection tools are available, including height, flatness, position, width, area, volume, angle, and GD&T measurement.
