U-pin dimension inspection

Various dimensions must be checked after forming flat wires, including the width of coil ends. Using a high-resolution camera ensures tighter tolerances, which prevents improper stator insertions downstream.

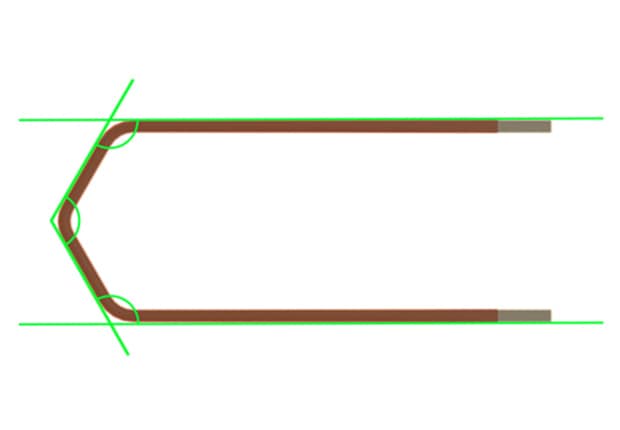

OK

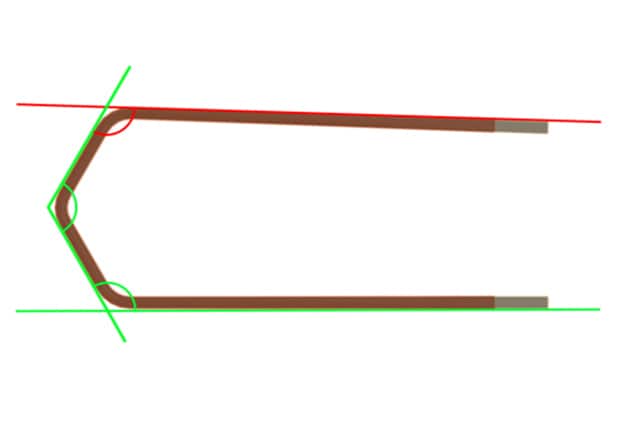

NG
