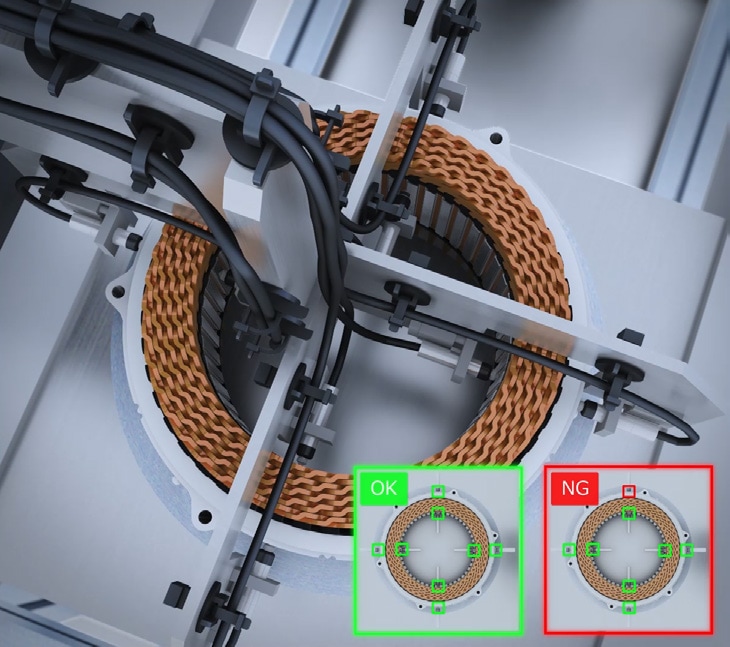

Measuring the Perpendicularity and Outer Diameter of the Stator

If the stator is not perpendicular, it may interfere with the rotors. It is therefore necessary to check that the stator is in a 90-degree phase. It is possible to check not only the perpendicularity, but also the outer diameter at the same time by measuring several points in the vertical direction. Owing to its small size, the GT2 Series can be installed directly on the internal diameter.
