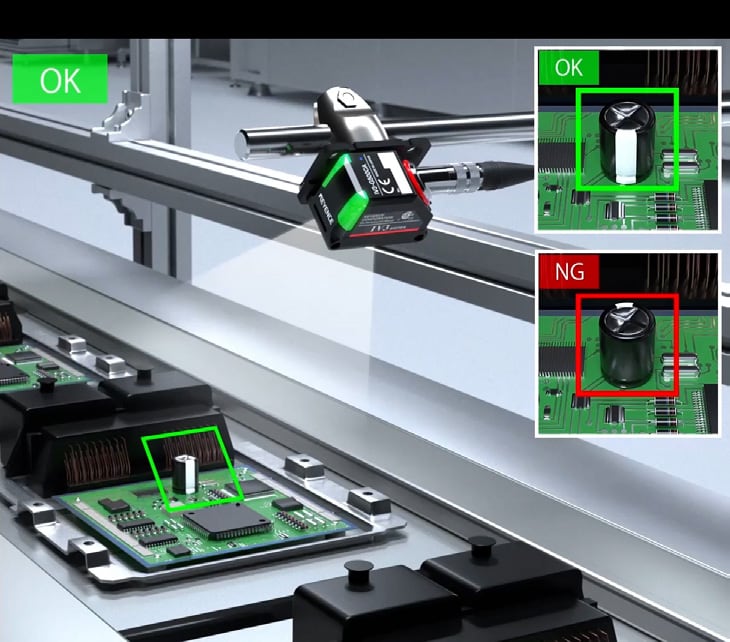

Capacitor Orientation Detection

If the capacitor is inserted backwards, or if the wrong type is mixed in, assembly will result in a defective product. When a capacitor is installed backwards, the subtle differences in surface patterns must be detected. Configuration is often difficult, but once done, the IV series learning tools make it easy for anyone else to recreate a similar configuration. In addition, it makes it possible to reliably detect multiple capacitors at the same time.
