Limtronik GmbH, based in Limburg an der Lahn, is a leading company in the field of Electronic Manufacturing Services (EMS). Very small components and high packing densities place high demands on quality assurance. With the KEYENCE VHX-X1 digital microscope, Limtronik observes solder joints and components at high magnification and fully in focus, views them flexibly from various angles, and documents everything seamlessly—for early defect detection and reliable traceability.
Key Points at a Glance
- Fully focused observation. Solder joints and complete components are inspected at high magnification and fully in focus to ensure undamaged connections and prevent short circuits.
- Flexible tilting. The camera can be tilted and the XY stage rotated, allowing even hard-to-reach areas to be analyzed from various angles.
- Seamless documentation. The high storage capacity allows all images to be saved and supports traceability for complaint investigations, audits, and compliance with standards.
- Early defect detection. Precise observation of surface structures makes it possible to identify potential defects early and verify component adhesion.
- Ideal for regulated industries. In the automotive, medical technology, and industrial electronics industries, the digital microscope complements constantly evolving analysis and inspection methods.
Full focus
High-magnification, fully focused observation of solder joints and components
Tiltable
Tiltable camera and rotatable XY stage for all viewing angles
Documentation
High storage capacity for seamless traceability
About Limtronik
Limtronik GmbH is a leading company in the field of Electronic Manufacturing Services (EMS). With around 170 employees at the site in Limburg an der Lahn and an additional 50 at the subsidiary Aurora (USA), the company develops and produces electronic assemblies and customized systems.
ChallengeQuality Assurance for the Smallest Components
Very small electronic components, high packing densities and sensitive components require precise manufacturing with new forms of quality assurance. A solution is needed that precisely visualizes the surface structures of components such as resistors and solder joints.
Only in this way can the quality of the connections be reliably evaluated, potential defects identified, and component adhesion verified—the foundation for defect-free electronics manufacturing.
SelectionWhy the KEYENCE VHX-X1?
The VHX-X1 digital microscope supports exactly this task: components are viewed at high magnification and fully in focus, allowing both individual solder joints and complete components to be inspected in detail. At the same time, the flexible tilting allows for a comprehensive view, making it quick and easy to inspect a wide variety of components.

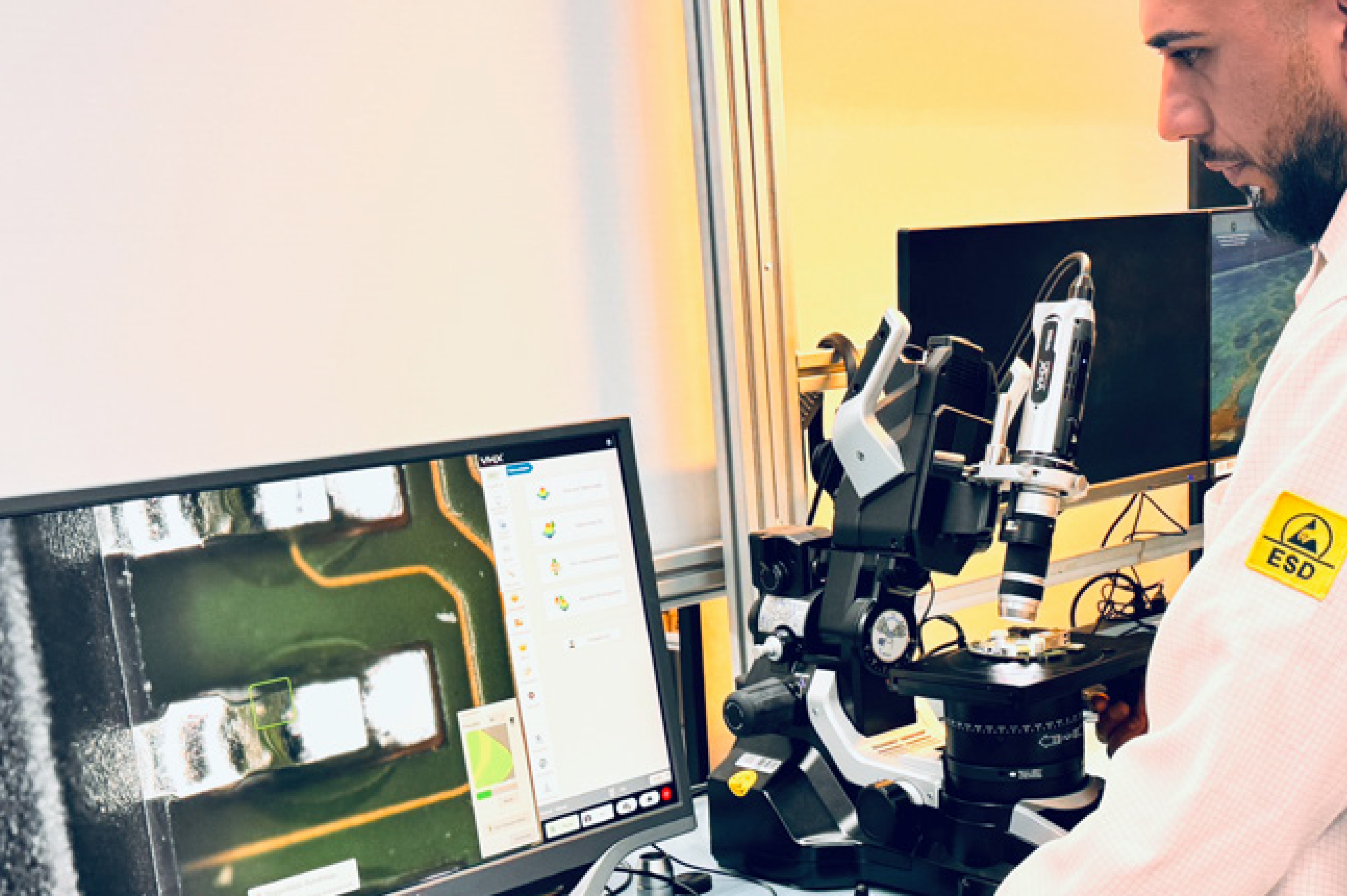

“The camera can be tilted by up to 90 degrees, and the XY stage is rotatable. This allows us to gain insights into the entire component surface from different angles. As a result, even hard-to-reach areas can be analyzed relatively easily.”
— Gerd Ohl, Managing Director of Limtronik GmbH
ResultsSolder Joints and Components in Focus
With the VHX-X1, Limtronik inspects individual solder joints as well as complete components—crucial for ensuring that all connections are undamaged and, for example, short circuits are avoided. A second focus is on documentation: The high storage capacity of the VHX-X1 allows all images to be saved, supporting long-term traceability.
“In electronics manufacturing, we must be able to prove at any time that our components and connections meet quality standards, especially in regulated industries. It is essential that we permanently archive every analysis and, if necessary, trace whether a component was defect-free. This facilitates complaint investigations, audits, and compliance with standards.”
— Gerd Ohl, Managing Director of Limtronik GmbH
ImpactKey Benefits for Limtronik
The use of the VHX-X1 digital microscope both optimizes and simplifies quality assurance at Limtronik. Three advantages stand out:
- High magnification and depth of field: The advanced optics enable precise viewing of solder joints and complete components.
- Flexible tilting: The tiltable camera and rotatable XY stage allow for a comprehensive view from different angles, facilitating the analysis of the entire component surface.
- Documentation and analysis: With the measurement and analysis functions, employees can perform precise measurements and document the results—so past inspections can be retrieved at any time if questions arise later.
“Particularly in industries such as the automotive industry, medical technology, and industrial electronics, increasingly high quality standards are required. These are strictly defined by guidelines and standards. We regularly introduce new analysis and inspection procedures. The digital microscope complements these perfectly.”
— Gerd Ohl, Managing Director of Limtronik GmbH
Frequently Asked Questions (FAQ)
Q Why does Limtronik need new forms of quality assurance, and how does the KEYENCE VHX-X1 help?
A
Very small electronic components, high packing densities, and sensitive components require precise manufacturing with new forms of quality assurance. The VHX-X1 digital microscope supports the observation of surface structures of components such as resistors and solder joints.
Q How does the VHX-X1 support the inspection of solder joints?
A
With the VHX-X1, Limtronik can observe components at high magnification and fully in focus. This allows both individual solder joints and complete components to be inspected in detail. This is crucial to ensure that all connections are undamaged and, for example, short circuits are avoided.
Q What advantage does the flexible tilting of the KEYENCE VHX-X1 offer?
A
The camera can be tilted by up to 90 degrees, and the XY stage is rotatable. This allows Limtronik to gain insights into the entire component surface from different angles, making even hard-to-reach areas relatively easy to analyze.
Q How does Limtronik document the results of the KEYENCE VHX-X1?
A
The high storage capacity of the VHX-X1 enables all images to be saved, supporting long-term traceability. This facilitates complaint investigations, audits, and compliance with standards.
Q In which industries is quality assurance with the KEYENCE VHX-X1 particularly demanding?
A
Particularly in industries such as the automotive industry, medical technology, and industrial electronics, increasingly high quality standards are required, which are strictly defined by guidelines and standards. Limtronik regularly introduces new analysis and inspection procedures, which are ideally complemented by the digital microscope.
Q What central advantages does the VHX-X1 bring to Limtronik?
A
Three advantages stand out: high magnification and depth of field for precise observation of solder joints and components, flexible tilting for observation from different angles, and comprehensive documentation and analysis that can be retrieved at any time for future inquiries.
