Eagle Alloy, part of the US foundry group Eagle Group, has long integrated 3D scanning across inspection, reverse engineering and prototyping — and it plays an essential role in the company’s shell-mold casting process. To push its inspection capabilities further, Eagle Alloy adopted the KEYENCE WM-6000, a handheld 3D scanner and CMM. The result: faster, more accurate and more consistent inspection, plus new capabilities in reverse engineering, tooling evaluation and data-driven customer collaboration.
This case at a glance
- Faster, more accurate inspection. The WM-6000 captures tens of millions of data points instantly, cutting inspection time while improving accuracy, with real-time feedback that prevents rework downstream.
- Reverse engineering without CAD. When customers provide only a physical part, the team scans it into a detailed digital model — invaluable for prototypes, short-run castings and legacy part reproduction.
- In-house replacement parts. Obsolete or proprietary components can be scanned and reproduced in-house, minimizing production downtime.
- Smarter tooling maintenance. A scan detected subtle warping in an aging mold before it affected parting-line quality, so the team corrected it and minimized waste.
- Data transparency with customers. Exportable visual reports and digital meshes provide clear evidence of part conformity, building trust and speeding approval cycles.
360°
Handheld scanning of large or intricate parts
Millions
Data points captured instantly for faster, more accurate inspection
Real-time
Scan confirmation eliminates repeat scans
About Eagle Alloy and the Eagle Group
The Eagle Group is a collaborative team of companies including Eagle CNC, Eagle Precision and Eagle Alloy. Together they have long recognized the transformative potential of 3D scanning in modern manufacturing, integrating the technology across their operations not only for inspection but also for reverse engineering and prototyping. At Eagle Alloy in particular, 3D scanning plays an essential role in the shell-mold casting process. In its pursuit of continuous improvement, Eagle Alloy has consistently upgraded its 3D scanning tools — most recently by adopting the KEYENCE WM-6000, the newest generation of high-precision 3D scanners.
ChallengeBalancing speed, precision and data transparency
Traditional manual measurement tools like calipers, air gauges and go/no-go gauges still serve a purpose within the Eagle Group, but they can fall short in capturing complex geometries or large-scale parts with the level of speed and accuracy modern manufacturing demands.
The team sought a solution that would:
- Accelerate inspection processes
- Improve measurement consistency
- Enable reverse engineering and design validation
- Enhance internal collaboration and customer communication
SelectionWhy the KEYENCE WM-6000?

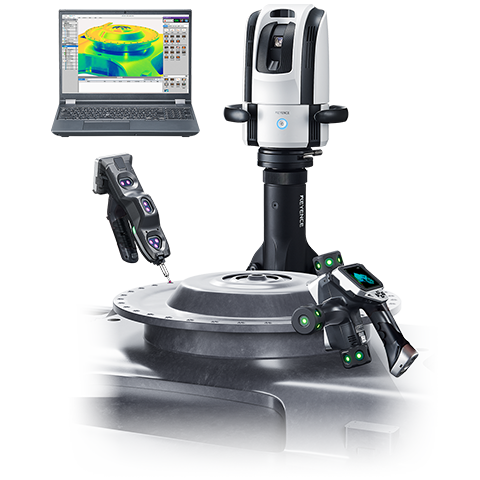

To meet these goals, Eagle Alloy implemented the KEYENCE WM-6000, an advanced handheld 3D scanning system with features that push the boundaries of traditional quality control:

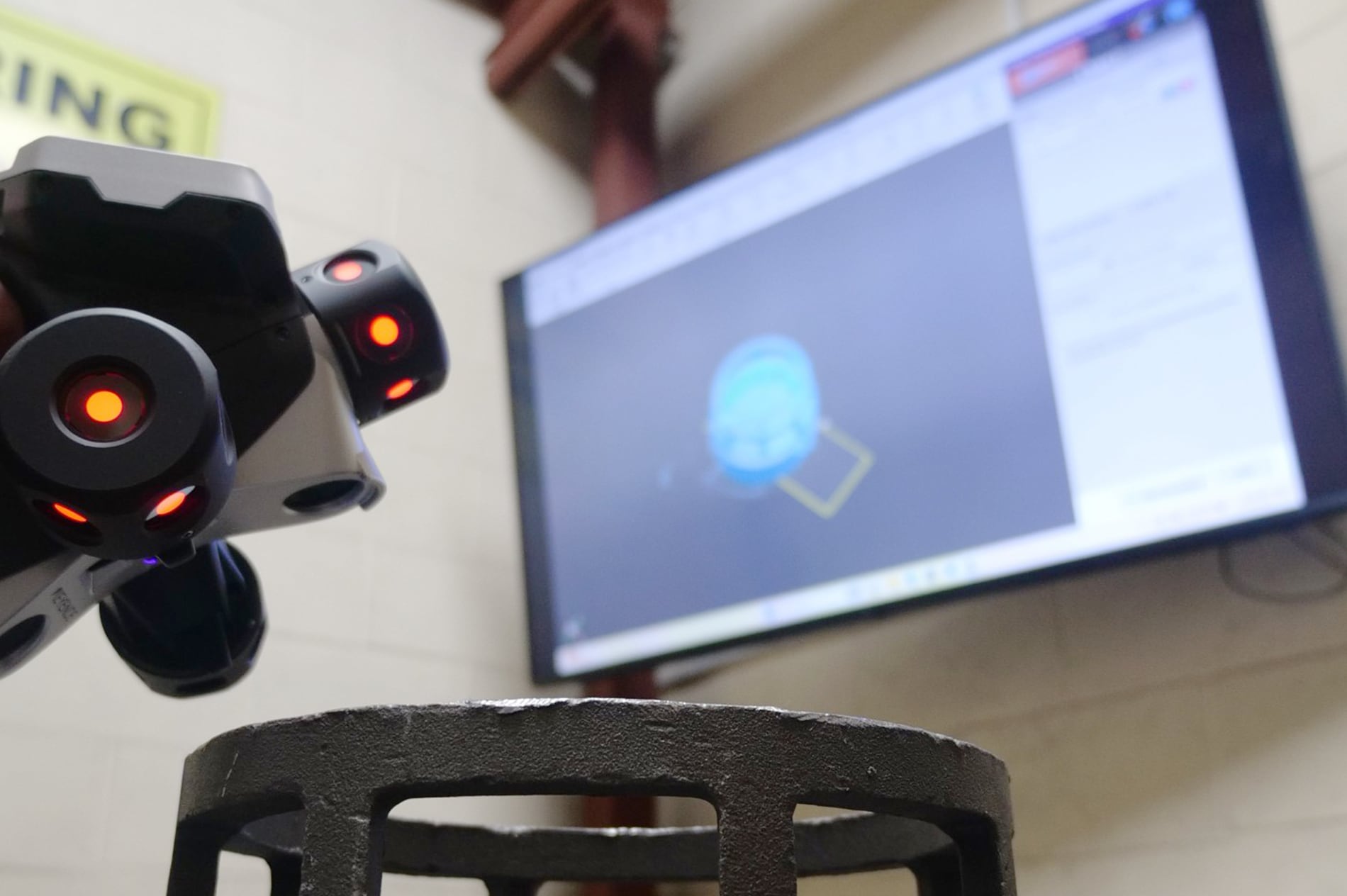

- Triple-camera system for synchronized scanning.

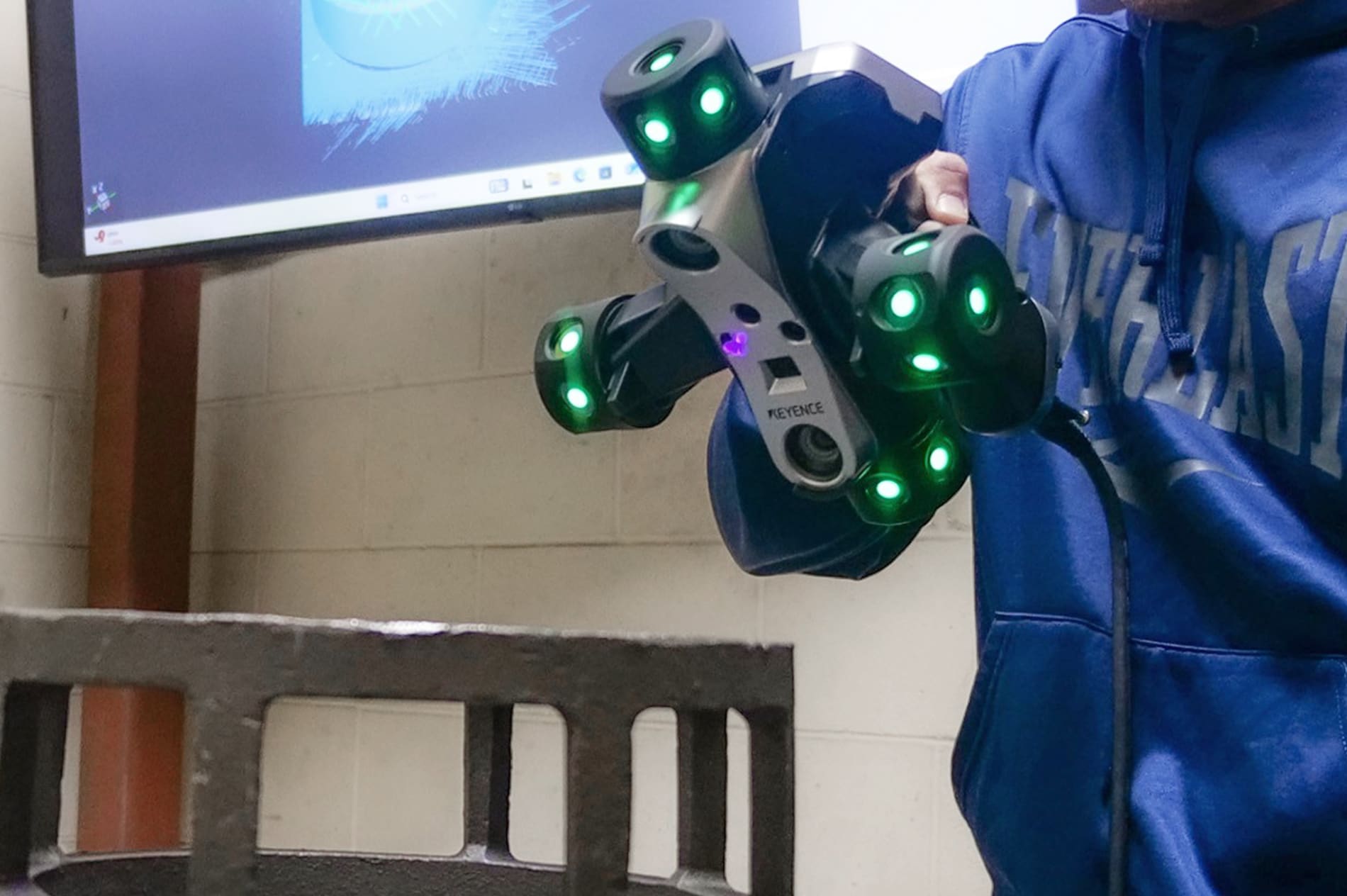

- Handheld unit enabling flexible, 360° scanning of large or intricate parts.
- Built-in violet laser, ensuring stable performance across a variety of surfaces.
- Real-time scan confirmation, eliminating the need for repeat scans.
- Surface condition evaluation, detecting defects early in the process.
These features combine to deliver faster, more accurate and more consistent inspection results across a wide range of parts and applications.
ResultsFrom faster inspection to reverse engineering

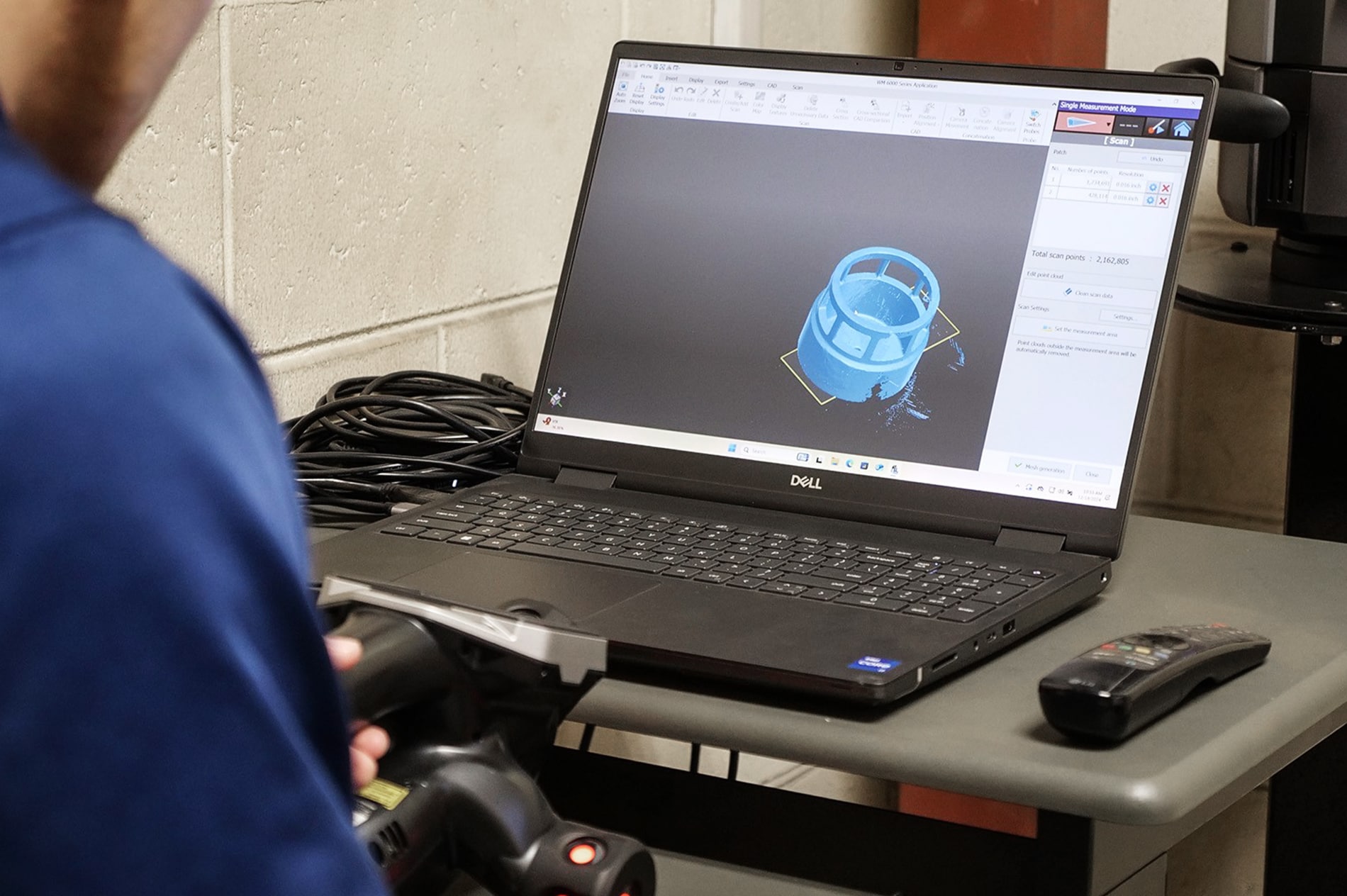

Streamlined inspection. The WM-6000 captures tens of millions of data points instantly, significantly reducing inspection time while improving accuracy. The real-time feedback ensures that inspections are thorough and reliable, preventing errors and rework downstream.
The WM-6000 helps Eagle deliver better castings faster, while maintaining the highest standards of precision.
— Eagle Alloy (Eagle Group)
Beyond routine inspection, the scanner opened up new capabilities across the operation:
- Reverse engineering for production and prototyping: when customers provide only a physical part — without CAD files or drawings — Eagle Alloy uses the WM-6000 to reverse engineer detailed digital models, invaluable for prototype development, short-run castings and legacy part reproduction.
- In-house replacement parts: when proprietary or obsolete components fail, the team scans existing parts to create custom replacements in-house, minimizing downtime and keeping production on track.
- Tooling evaluation and maintenance: a recent scan detected subtle warping in an aging mold that could have impacted parting-line quality; with the scan data, the team quickly corrected the issue by remounting the tooling, preserving part accuracy and minimizing waste.
- Data transparency and customer collaboration: the software creates visual reports and digital meshes that can be exported and shared, delivering precise visual evidence of part conformity to build trust and accelerate approval cycles.
ImpactElevating quality through innovation
For Eagle Alloy and the wider Eagle Group, the KEYENCE WM-6000 represents more than just an equipment upgrade — it is a strategic investment in quality, efficiency and transparency. By streamlining inspections, enabling advanced analysis and fostering collaborative workflows, the WM-6000 helps Eagle deliver better castings faster while maintaining the highest standards of precision.
The KEYENCE WM-6000 represents more than just an equipment upgrade — it’s a strategic investment in quality, efficiency, and transparency.
— Eagle Alloy (Eagle Group)
The move reflects Eagle’s ongoing commitment to innovation and customer satisfaction — core values that continue to shape the company’s success in today’s competitive manufacturing landscape.
Frequently asked questions (FAQ)
QWhat did Eagle Alloy use before the WM-6000, and what was the challenge?
A
Traditional manual measurement tools such as calipers, air gauges and go/no-go gauges still serve a purpose within the Eagle Group, but they can fall short in capturing complex geometries or large-scale parts with the speed and accuracy modern manufacturing demands. Eagle Alloy wanted to accelerate inspection, improve measurement consistency, enable reverse engineering and design validation, and enhance internal collaboration and customer communication.
QWhy did Eagle Alloy choose the KEYENCE WM-6000?
A
The WM-6000 is a handheld 3D scanner and CMM built for demanding inspection. Its triple-camera system enables synchronized scanning, the handheld unit allows flexible 360-degree scanning of large or intricate parts, a built-in violet laser ensures stable performance across a variety of surfaces, real-time scan confirmation eliminates the need for repeat scans, and surface condition evaluation detects defects early in the process.
QHow does the WM-6000 speed up inspection in a foundry?
A
The WM-6000 captures tens of millions of data points instantly, significantly reducing inspection time while improving accuracy. Real-time feedback ensures inspections are thorough and reliable, preventing errors and rework downstream.
QCan the WM-6000 be used for reverse engineering?
A
Yes. When customers provide only a physical part, without CAD files or drawings, Eagle Alloy uses the WM-6000 to reverse engineer detailed digital models. This has proven invaluable for prototype development, short-run castings and legacy part reproduction, and it also lets the team scan existing components to create custom replacement parts in-house.
QHow does the WM-6000 help with tooling evaluation and maintenance?
A
Beyond part inspection, Eagle Alloy uses 3D scanning to evaluate tooling condition. In one case, a scan detected subtle warping in an aging mold that could have impacted parting-line quality; using the scan data, the team quickly corrected the issue by remounting the tooling, preserving part accuracy and minimizing waste.
QHow does the WM-6000 improve customer collaboration?
A
The system’s advanced software can export and share detailed scan data, creating visual reports and digital meshes that enhance customer communication. By delivering precise, visual evidence of part conformity, Eagle Alloy builds trust and accelerates approval cycles.
