Laser Processing

Discover how KEYENCE laser markers are used to solve problems in real work sites. Also, learn the tricks behind on-site improvements.

Direct Marking on Surfaces Painted for Rustproofing

Problem 1

We have painted metal products, and we currently use labels to manage them. Could we use a laser marker instead?

The paint provides rustproofing, so using a laser would be pointless if it peels off the paint. What should we do?

Solution: We recommend that you try testing with a CO2 or UV laser marker!

It's true that most laser markers will peel off paint due to the heat required to leave a mark. However, it's possible to use a CO2 or UV laser marker to remove only a tiny layer of paint, keeping the rustproofing intact. KEYENCE laser markers have been used to mark automotive undercarriage parts (e-coated products), which are highly susceptible to rusting.

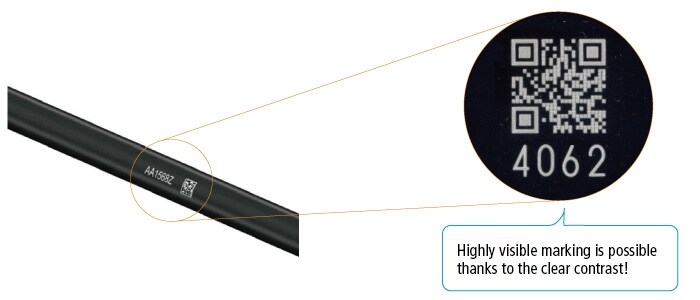

Highly visible marking is possible thanks to the clear contrast!

Laser markers eliminate running costs and have the key advantage of creating permanent marks.

* KEYENCE makes no guarantees regarding corrosion of painted products after marking. Be sure to perform evaluations such as salt spray tests.

Processing/Marking on Front and Back Surfaces at the Same Time

Problem 2

We use edged tools to cut the sheath off of coaxial cables, but we want to use a laser marker.

However, our installation space is limited and it would be difficult to install two separate units (one to mark each cable side). What should we do?

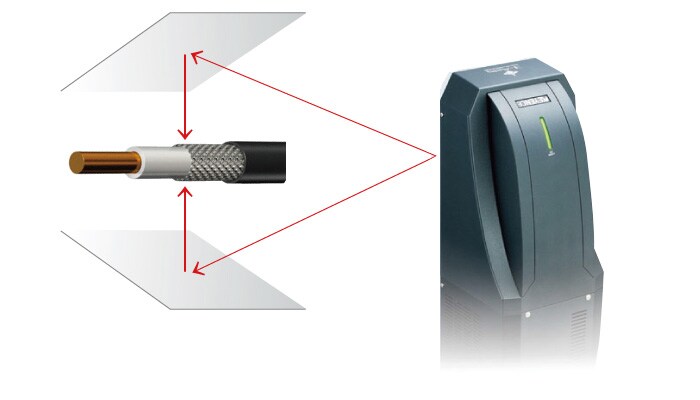

Solution: We recommend that you use mirror reflections to process both sides!

As cable sizes get smaller, the benefits of using non-contact processing become greater since there's no risk of damaging the cable with a laser marker. In scenarios where installing two laser markers isn't possible, you can use mirrors to reflect the optical axes of a single system to process both sides of a cable. What's more, KEYENCE's 3-Axis control makes it possible to eliminate tooling changes even when a cable's diameters changes. This original manufacturing process is only possible with KEYENCE.

We recommend that you use mirror reflections to process both sides!

Laser markers make it possible to perform damage-free processing. They're also maintenance-free, which eliminates the problem of edged tools deteriorating. Overall, lasers greatly contribute to improving quality and produce yield.

Thicker Marking without Increasing Machine Takt Time

Problem 3

We currently use your laser markers to mark ICs, but we want to improve the marking visibility by using thicker lines. However, increasing the line thickness also increases our marking time. We can't slow down our process anymore or we won't meet the machine takt time. What should we do?

Solution: Try defocusing the laser!

Adjusting a line's thickness will naturally increase the overall marking time. However, it's possible to mark thicker lines by slightly de-focusing the laser marker. This results in wider single lines and no change in marking time.

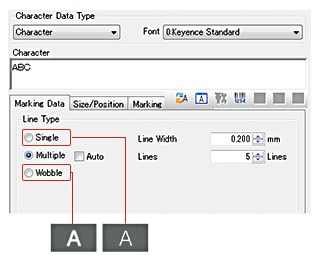

Normal line thickness settings

Normally, you need to increase the number of lines, or laser passes, in order to increase marking thickness. Doing so naturally increases the marking time.

Defocused marking

Purposefully defocus the laser marker to create a larger beam spot at the target surface.

Best solution

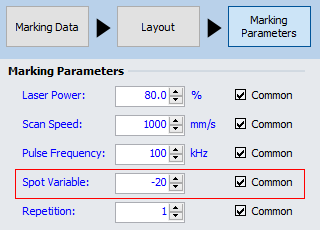

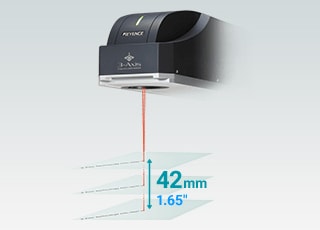

With 3-Axis control, a laser marker's beam spot can perform defocused marking without the need for any physical adjustments.

When the Color Generated on the Resin Package Varies between Different Products

Problem 4

We use fiber lasers to create contrast on resin molded packages, but the colors generated on each product vary because of slight material differences.

The same line is used for multiple product models, so we have to set new marking conditions every time we change products. Manually adjusting the laser like this is difficult. What should we do?

Solution: We recommend a UV laser!

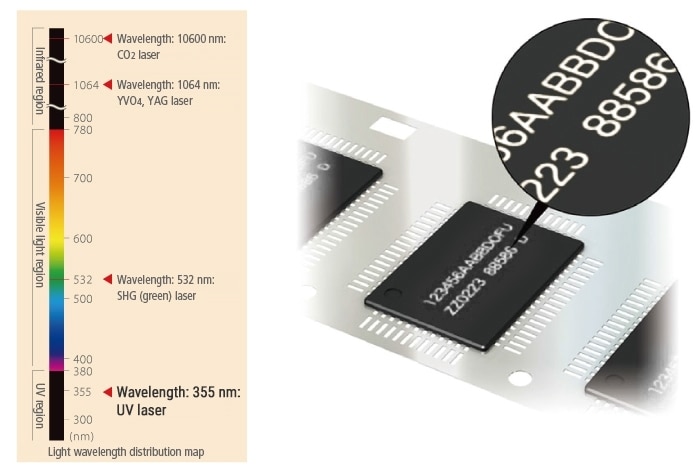

It's true that there may be color differences when marking resins with a standard, 1064 nm wavelength. The good news is that other wavelengths are better suited to resin marking. As a laser's wavelength becomes shorter, its energy and absorption rate generally get higher. UV laser markers (which have a 355 nm wavelength) can use the same parameters to create exceptional color and visibility on resins even if the material changes.

We recommend an SHG wavelength (green) laser!

Laser markers can be used for a staggering number of different processing applications, from high-speed processing to damage-free marking.
