Capabilities Image Dimension Measurement System IM-X1000 series

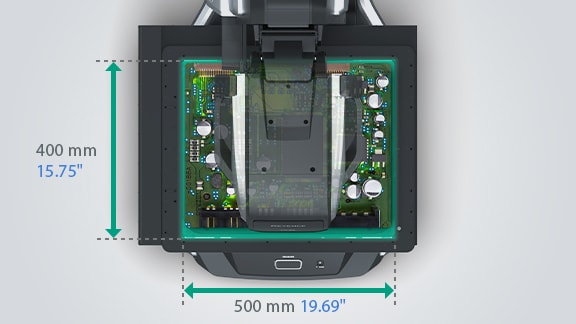

Introducing the new extra-wide stage at 500 mm (19.69") in width. The measurable area has been significantly increased to 3.3× the area of the previous generation’s largest model. Even large parts that have not previously been measured can be measured in one run.

With significantly more measurement space, even large-sized parts that would have to be abandoned with conventional models can be measured all in one go. In addition, it is possible to measure multiple parts scattered on the large stage, reducing the number of labor hours required.

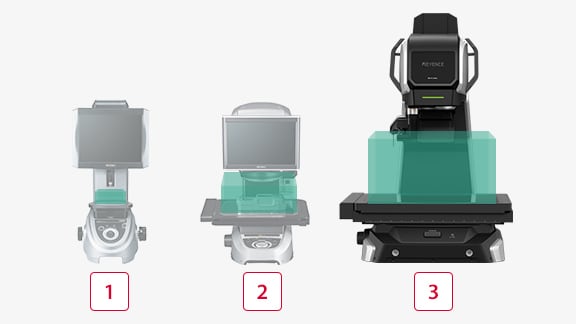

• 1
  IM-6020
  Ø100 mm Ø3.94" (Height: 30 mm 1.18")
• 2
  IM-8030
  300 mm × 200 mm 11.81" × 7.87" (Height: 75 mm 2.95")
• 3
  IM-X1540

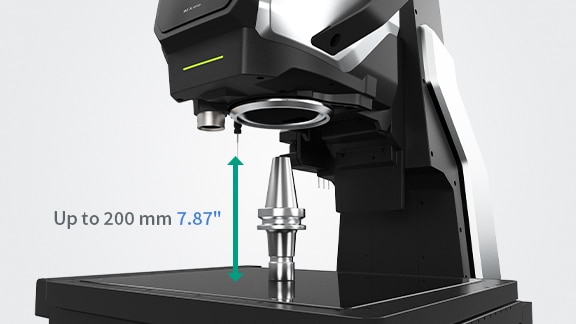

  500 mm × 400 mm 19.69" × 15.75" (Height: 200 mm 7.87")

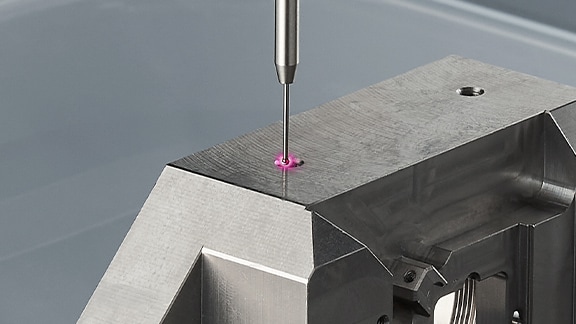

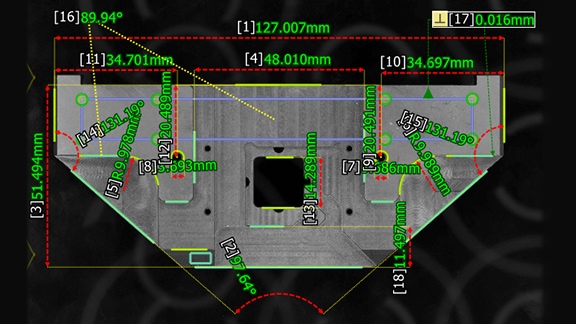

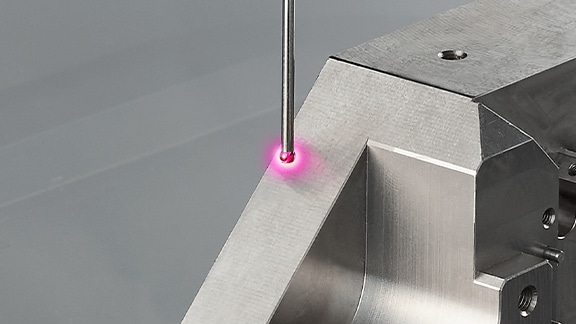

The low-measuring-pressure touch probe makes it easy to measure 3D machined shapes, including the perpendicularity of the top and side surfacesand the angle of slopes, which were difficult to detect with conventional measurement detects. It can also be used with commercially availablestyluses, allowing accurate measurement of deep holes and narrow grooves.

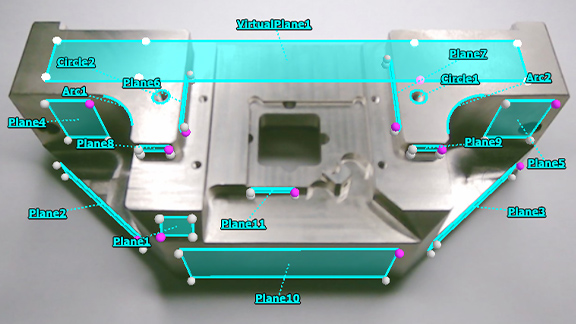

The front camera is mounted at an angle above and in front of the target, allowing it to look over the entire stage. Images taken with the front camera can be superimposed with measured elements in a 3D display. Since the measurement points are clearly visible at a glance, this can also be used as an impressive image in reports.

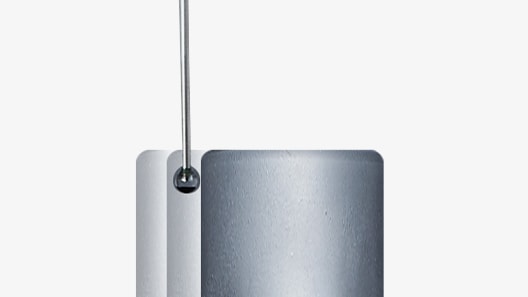

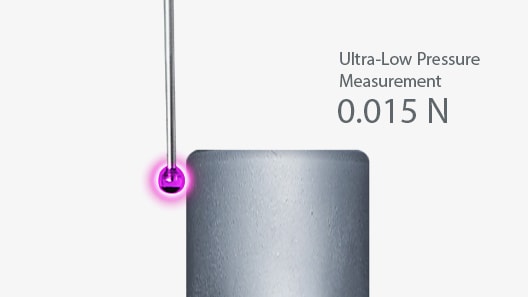

Conventional contact-type measurement systems use a strong measuring pressure that can cause misalignment due to the pressure applied to small and lightweight parts. The low-measuring-pressure touch probe uses an ultra-low measuring pressure of 0.015 N to accurately take measurements without the hassle or cost of securing the part using a jig. This also eliminates concerns about deformation when flexible parts are measured.

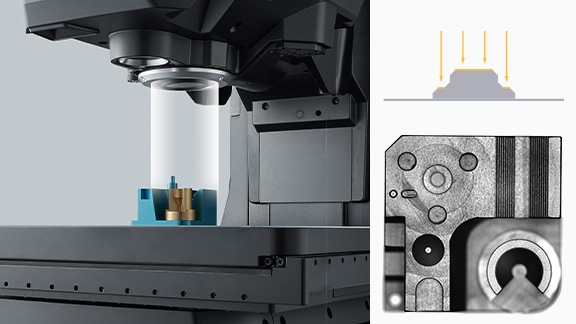

Any material can be measured, including metals, plastics, glass, rubber and ceramics. It is capable of accurately measuring parts that are too small or soft to measure with the contact-type system.

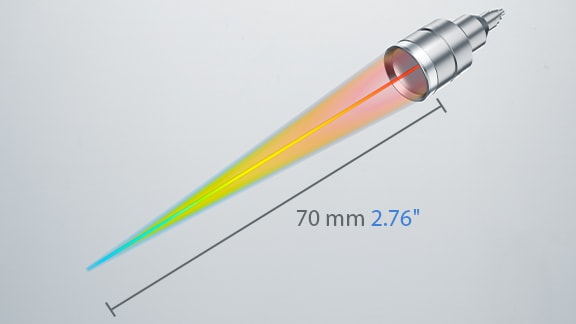

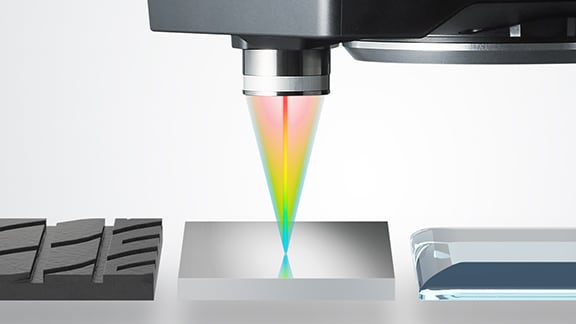

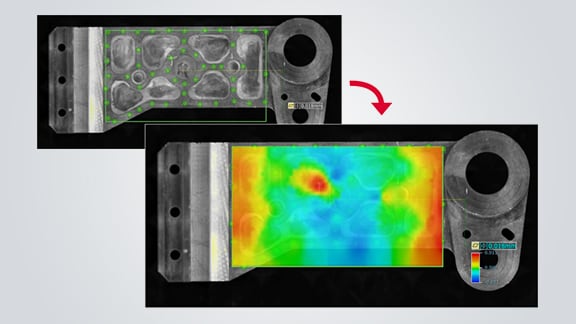

The non-contact, multi-color laser allows instant measurement of the Z-direction dimension. This results in an overwhelming reduction in labor hours when measuring the height of multiple points or measuring flatness over a wide range.

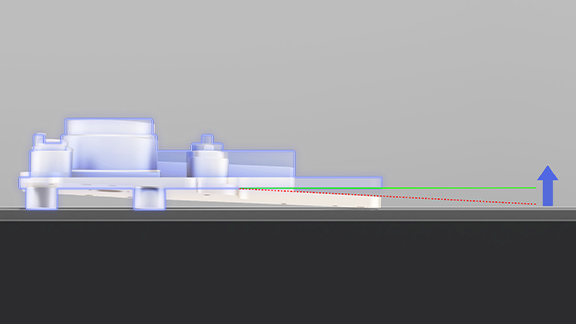

The tilt compensation function enables accurate measurement of tilted targets (+/- 1 degree) without them having to be perfectly horizontal. You can set a reference plane and obtain the height and other dimensions based on that plane.

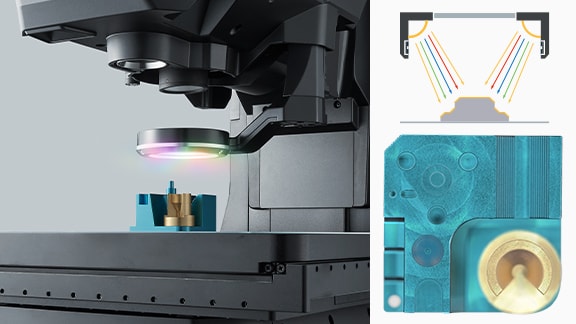

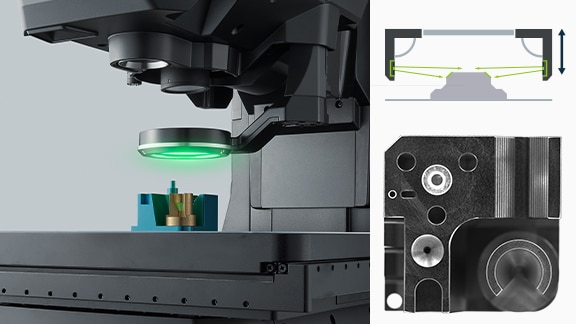

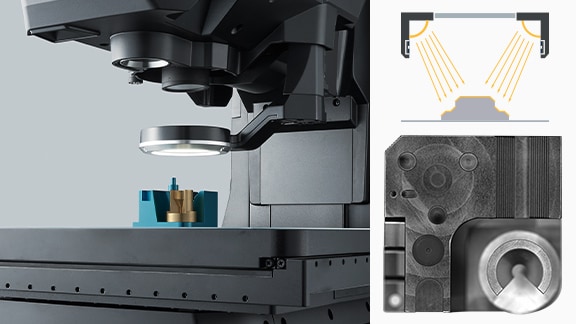

The programmable ring-illumination unit, which includes new color lighting, allows you to set optimal lighting conditions to highlight the edges of the part. Once set, the same lighting conditions are automatically reproduced for continuous measurements.

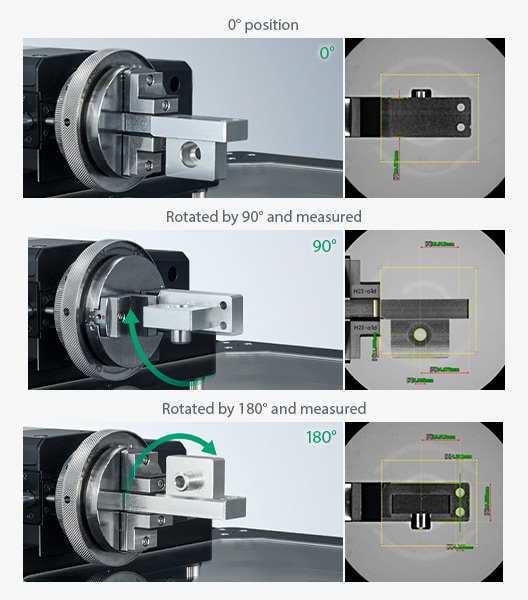

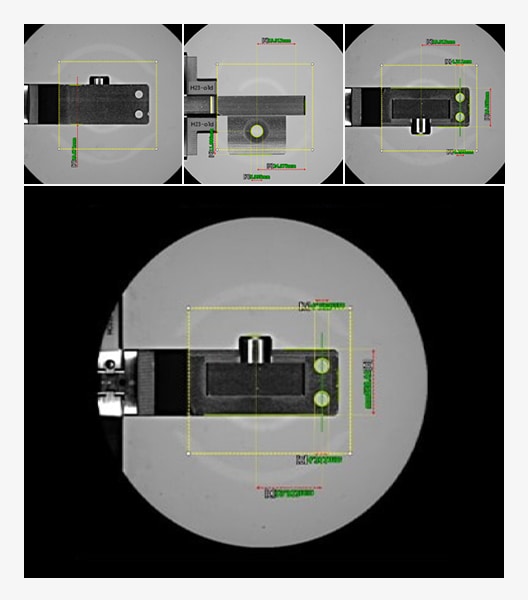

Even parts machined from multiple directions, all surfaces in the rotation direction can be measured with a single operation, eliminating the need to create multiple settings or reposition parts.

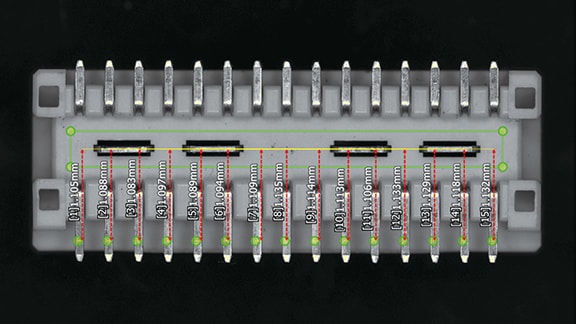

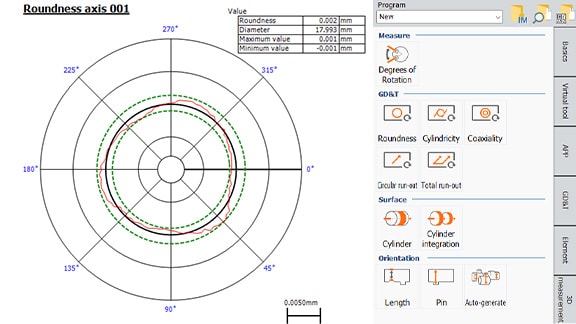

Characteristics such as circularity, coaxiality and runout that previously required a dedicated machine can now be measured easily. By fully utilizing the information within the field of view, this measurement method offers greater flexibility and stability compared to contact-type measurement systems.

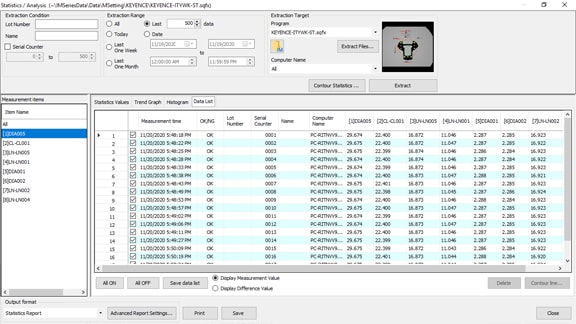

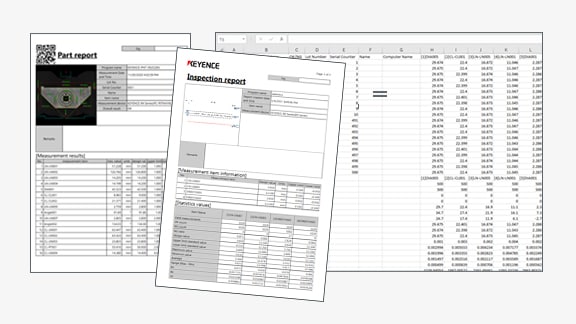

Inspection and statistical reports can be created with the click of a button. There is no need to transfer data or manually enter it into a PC. Measurement results can be easily imported into spreadsheet software for analysis using a USB device or a LAN connection.

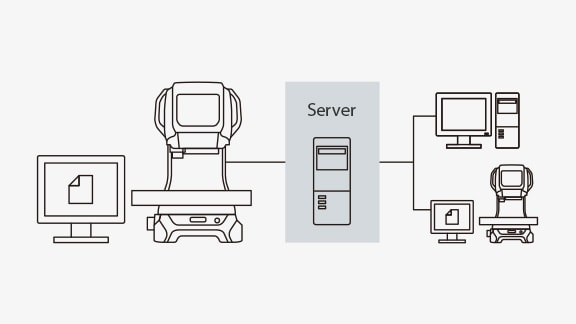

Using a network connection, you can share configuration files on the server and check measurement results on another PC.

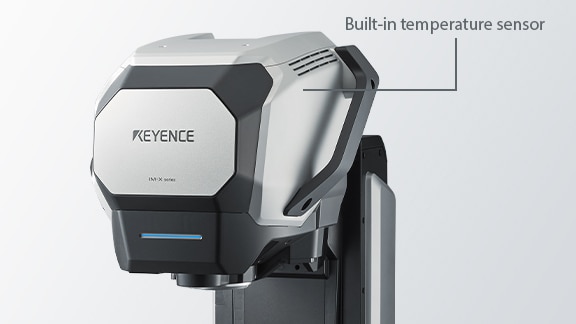

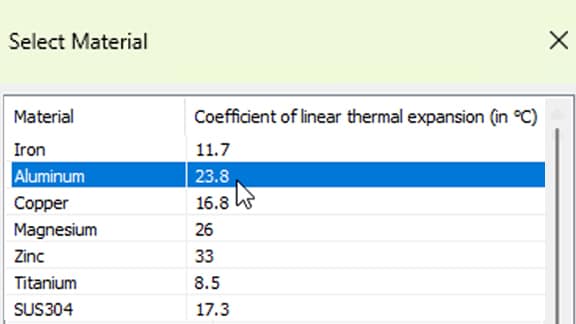

The head features a built-in temperature sensor which allows it to be installed in any location, not just in specialized inspection rooms. The system uses temperature compensation in a way that nullifies the effects of the surrounding environment, eliminating the need for air conditioning management. The new temperature compensation function allows the expansion coefficient of the target material to be reflected in the measurement results. Accurate measurements are now possible on site.

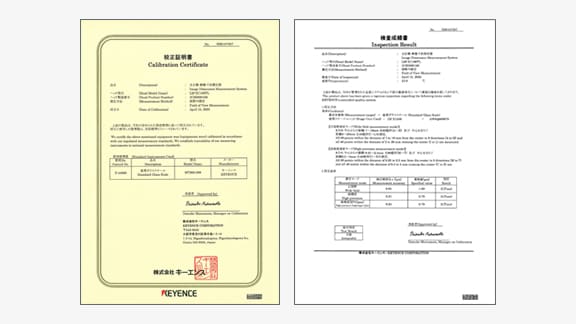

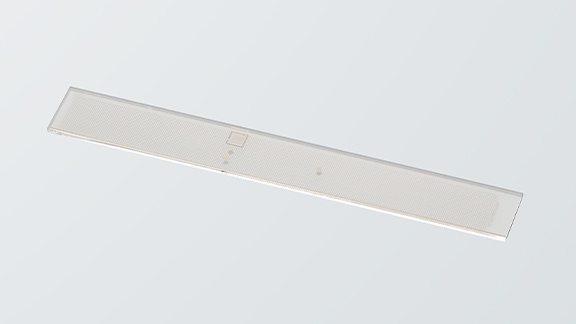

By installing a dedicated scale, customers can perform their own accuracy checks at any time. It can also be adjusted in place, making it convenient if the installation location changes. The dedicated scale itself is able to produce a report, making measurement management easy.

In addition to the system’s control screen, manuals and otherdocumentation are also provided in a wide range of languages.Your local staff can easily use KEYENCE’s products are installed atinternational manufacturing locations.

• English
• Italian
• Spanish
• Czech
• German
• Simplified Chinese
• Thai
• Polish
• French
• Traditional Chinese
• Korean
• Vietnamese
