Precision Position Detection Systems for Automation

In industrial automation, position detection connects what is seen with what needs to be done. Automated equipment depends on accurate positional data to determine how far to move and whether a part is in the correct position before manufacturing begins. Without this reference, even high-performing robotics and motion systems have issues operating consistently.

Vision-based position detection systems capture an image of parts or assemblies as they move through the production line and compare them to known references. The system identifies positional offsets and angular deviation to communicate that information to controllers or mechanical equipment. Corrections can then be applied immediately, keeping the process aligned without interrupting throughput. As manufacturing environments shift toward higher speeds and greater product variation, these automated position detection systems provide a stable method for handling these changes.

In addition to the Pattern search that uses a normalized correlation method, there is the Geometry search that searches for targets based on profile information. The pattern search tool has ShapeTrax™3A for this purpose.

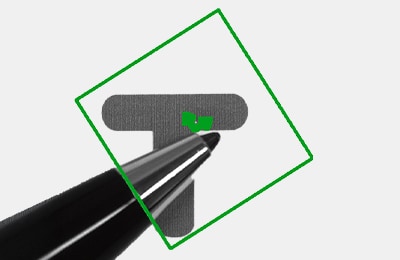

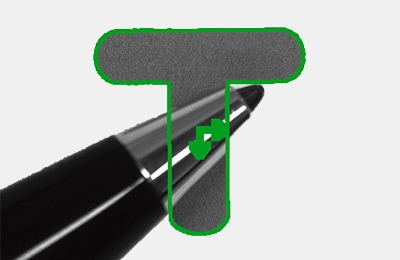

Since ShapeTrax™3A uses profile information, even when a part of the target is missing, it ensures accurate search based on the remaining shape information. This function can also address size fluctuations or black/white inversion of targets. Detection is stable regardless of the change in surface treatment conditions.

Remember the following points to ensure stable search with machine vision.

• Knowledge of the search detection principle helps select the optimum mode and detailed settings.

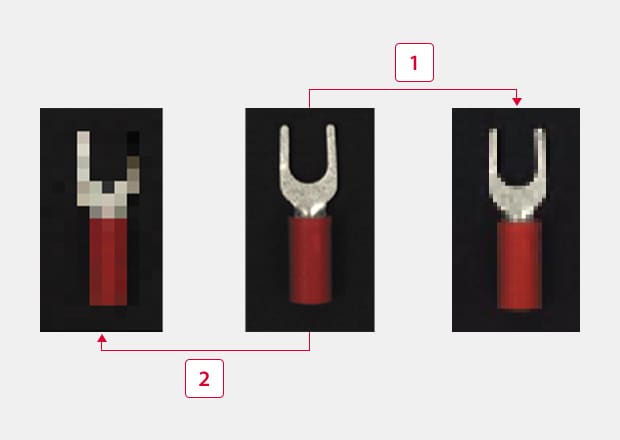

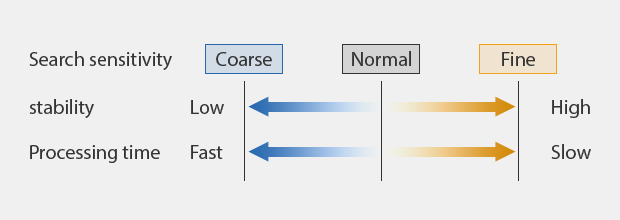

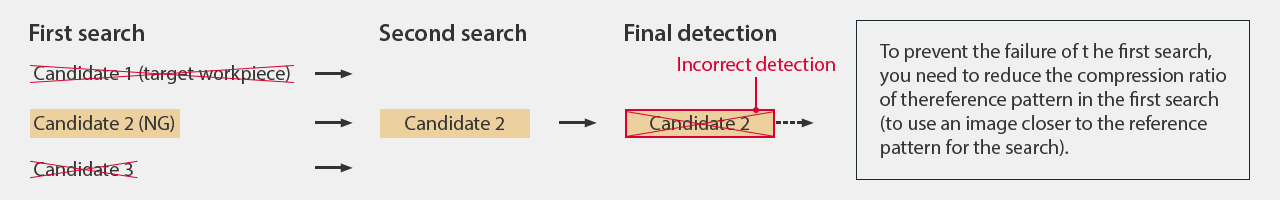

• Changing the Search sensitivity is effective when the search deviates from the target.

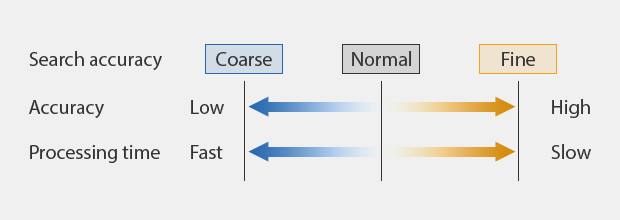

• Changing the Search accuracy increases the accuracy of the final detection.

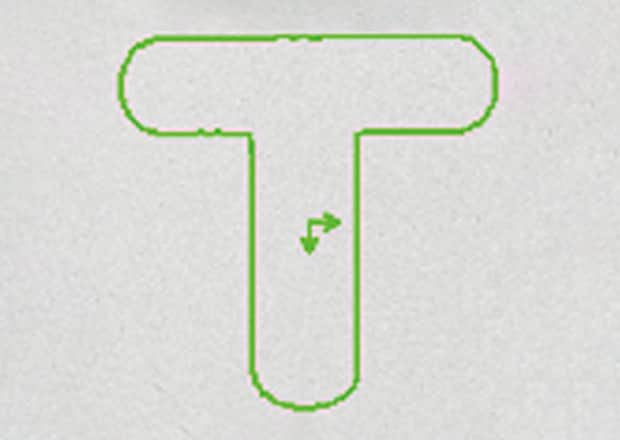

• Geometry search uses profile information according to the condition and shape of the target.

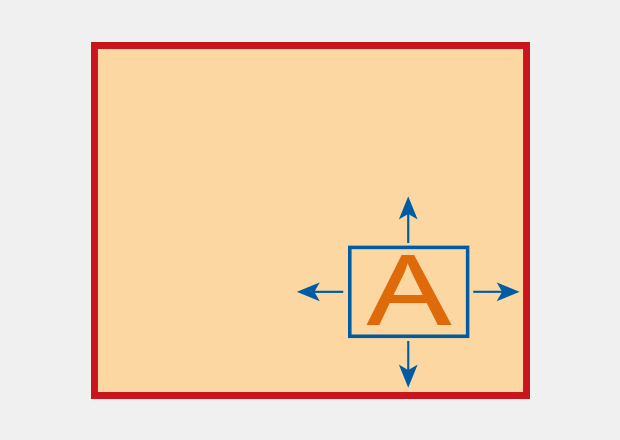

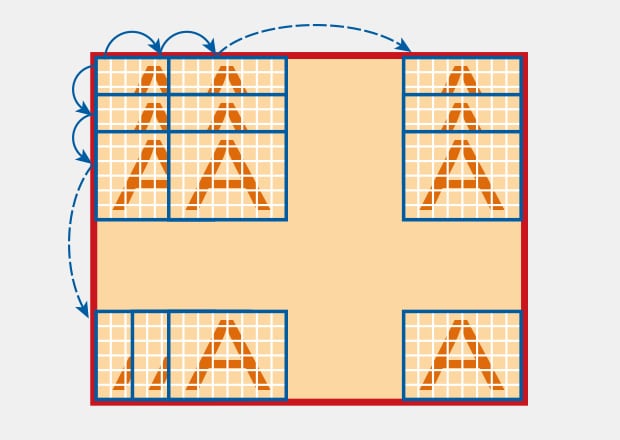

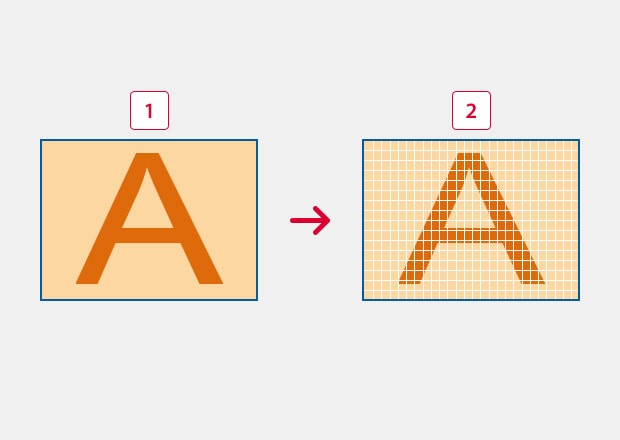

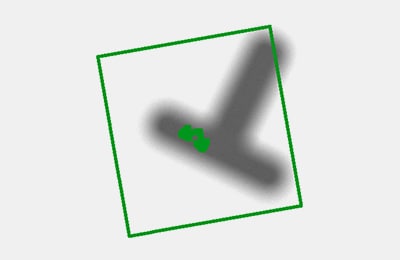

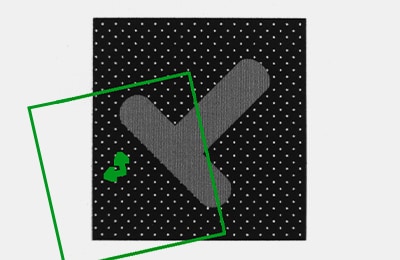

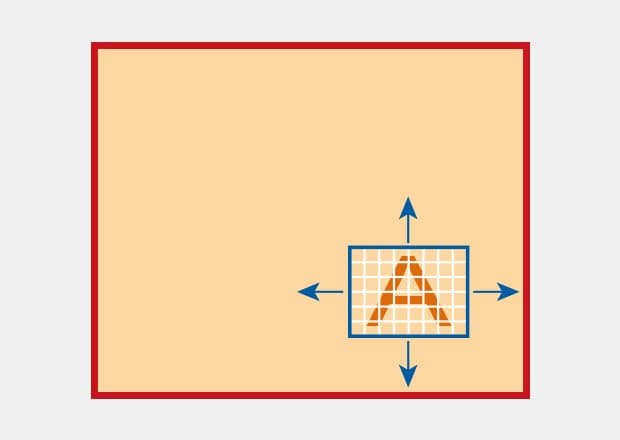

Traditional pattern-based detection relies on matching pixel data from a reference image to a captured image. While this is effective in testing and control scenarios, it can struggle when it comes to parts that vary slightly in appearance or when markings are partially obscured.

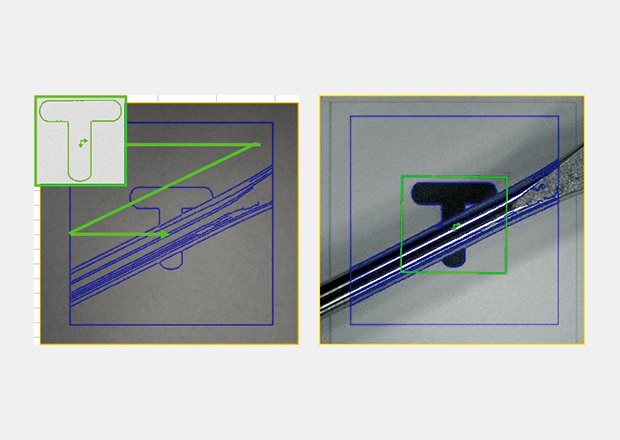

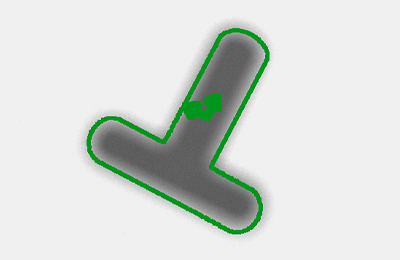

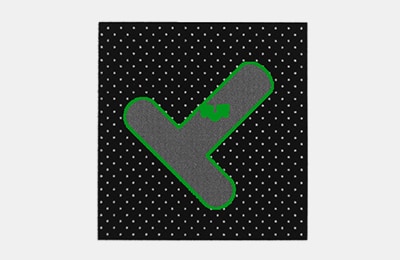

Geometry searches address these limitations by focusing on shape and edge information rather than on surface appearance. Even when the portions of the target are missing or visually altered (like surface finish, contrast inversion, or minor size difference), these vision systems can analyze structural features and detect geometry.

For precision position detection, this approach offers greater stability on real production lines where conditions are rarely consistent. Geometry searching creates consistent position measurements without having to constantly re-teach or adjust, making it a well-suited option for applications that demand repeatable uniformity while production lines run at speed.

Position detection systems are expected to perform consistently, but in high-speed production, challenges come from factors like motion blur, background interference, and subtle visual differences between acceptable and unacceptable part positions.

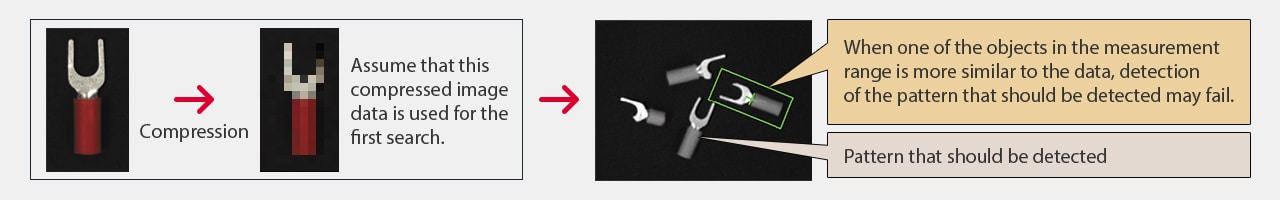

KEYENCE systems that support position searches, like the VS, manage these conditions by allowing detection behavior to be tuned to the application rather than forcing a fixed inspection approach. Adjustable ‘search sensitivity’ controls how much image information is evaluated during initial detection, helping to limit false matches. Accuracy settings can also be fine-tuned for the final position calculations.

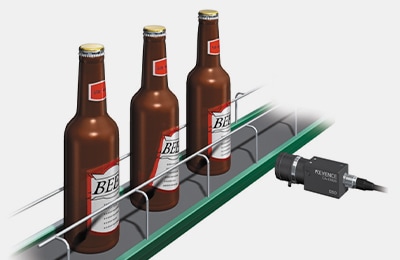

The VS Series also supports continuous capture methods that improve image stability when there is unexpected motion or vibrations present. The system evaluates multiple captures within the same event and can derive position data from the combined results.

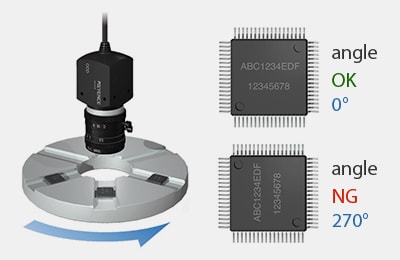

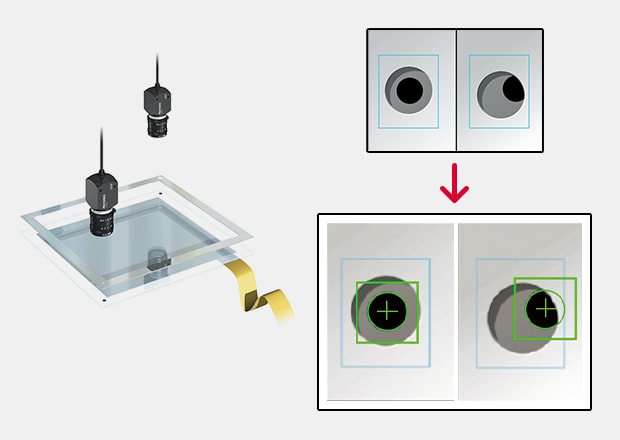

Position detection is widely used in robotics and assembly operations. This is especially true where parts must be aligned before they can be manipulated or joined. In robotic pick-and-place applications, vision systems locate parts on conveyors or fixtures and provide position and orientation data that guides robotic motion.

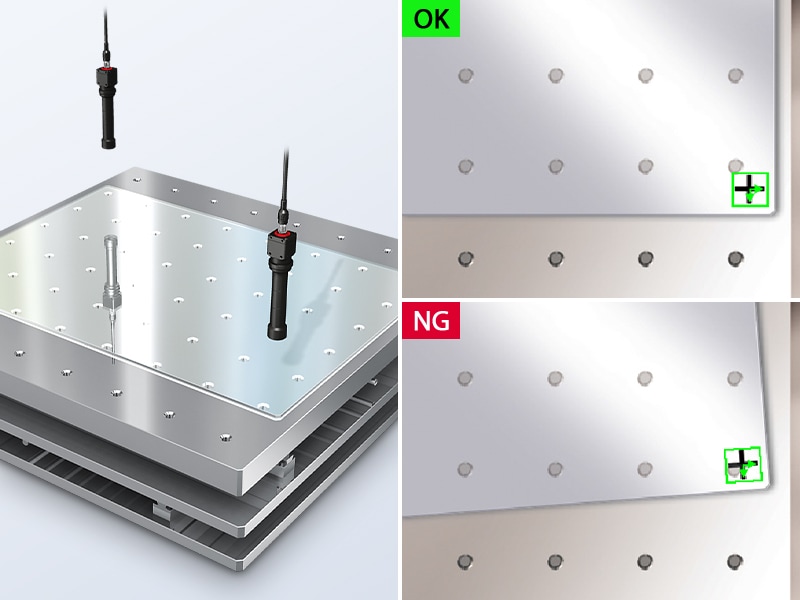

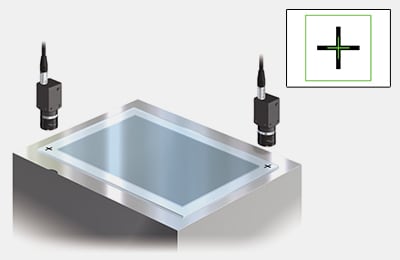

On assembly lines, precision position detection supports tasks like component joining, fastening, and bonding. Parts can be verified for alignment before any assembly begins, which helps reduce downstream errors and rework.

Across these applications and more, position detection links image-based recognition to motion control by supplying the necessary coordinate data used during part handling and alignment. Vision position systems help automation equipment operate consistently within defined tolerances, even as products and production demands change over time.
