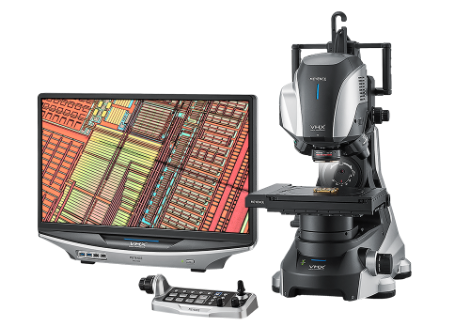

The VHX 3D display
function allows users to generate fully-focused 3D images of a
target even at high magnifications. By combining glare removal
functions and 3D compilation technologies, it is possible to
construct a 3D profile even on targets with extremely reflective
The 3D image contains
data in the XY and Z axes, providing for measurements such as
volume, distance, plane angle, and profile. These are typically
impossible with conventional optical
Compared to conventional microscopes,
the VHX is extremely flexible. With the ability to inspect targets
from any angle, users are able to view parts of a target that
are normally impossible to see.
