Weld Penetration Defect Measurement and Inspection

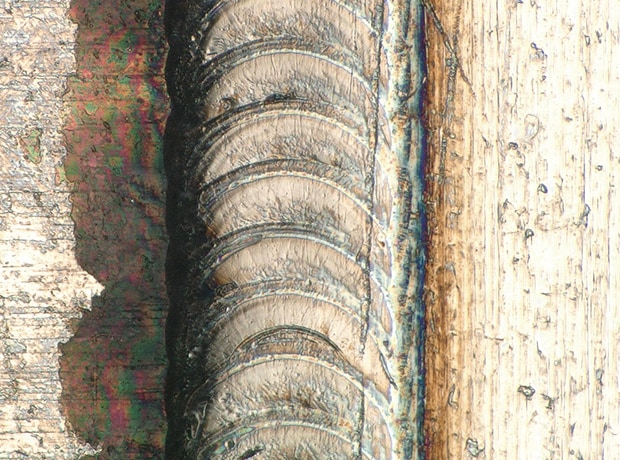

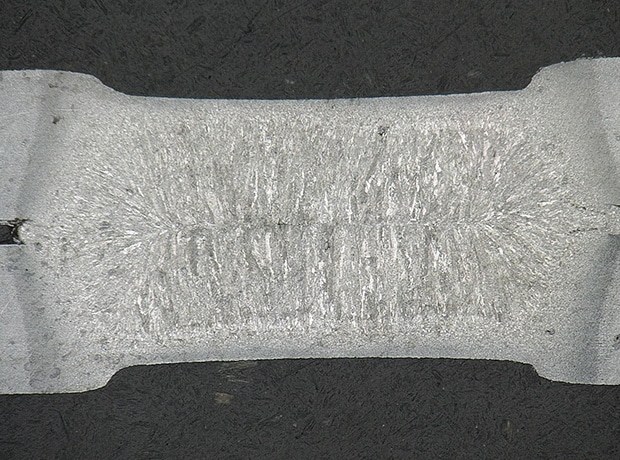

Welding is commonly used in metal joining processes for products such as automobiles and airplanes. The quality of the weld can be assessed by measuring the dimensions of the weld penetration on a cross-sectioned sample, and by inspecting defects such as insufficient penetration and joining failure.

KEYENCE's VHX Series Digital Microscope can clearly visualize metal structure boundaries and defective areas even for low-contrast weld cross sections. The microscope can also capture accurate 2D and 3D measurements which can then be output to a customized report to include the measurements and images.

Welding is commonly used in the joining of metallic components for products such as automobiles, airplanes, railroad cars, and ships. For automobiles, joining occurs by means of various types of arc welding, resistance spot welding, and laser welding. These techniques are utilized on bodies, frames, engines, transmissions, chassis, and other such components to which stress is applied when the automobile is being driven. This puts importance on the strength design of welds and weld quality inspection through dimensional measurement of cross sections.

Weld penetration inspection typically begins with preparing a cross-sectioned sample from the welded component. The sample is cut, ground, and polished so that internal weld structures become visible under magnification. This preparation step is important. Without it, boundary lines between the weld metal and base material can be too faint to measure reliably.

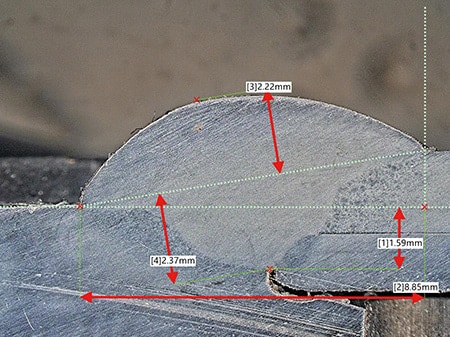

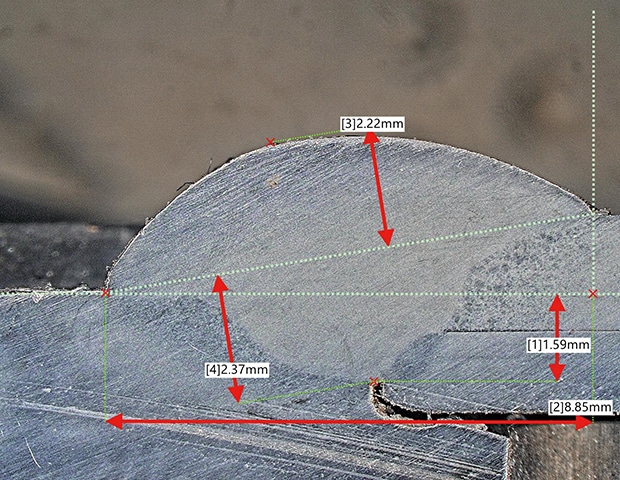

Once the sample is ready, inspectors examine key dimensional features. These include penetration depth, throat thickness, and leg length. Each measurement tells a different part of the story. Penetration depth shows how far the molten metal traveled into the base material. Throat thickness indicates the effective load-bearing cross-section. Leg length reflects the size of the visible fillet. Together, these values confirm whether a weld meets the design standard or falls short.

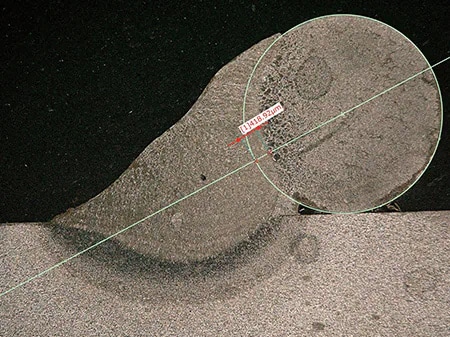

Traditional inspection relied heavily on optical microscopes and manual scales. Operators had to visually estimate measurement points, which introduced variability from one inspector to the next. Modern digital microscopes have replaced much of that guesswork. Digital microscopes allow inspectors to capture high-resolution images of the welds and then perform accurate measurements directly on the screen. Systems with automated edge detection help minimize measurement variability between users by ensuring that measurement lines snap to the edge that shows the highest contrast.

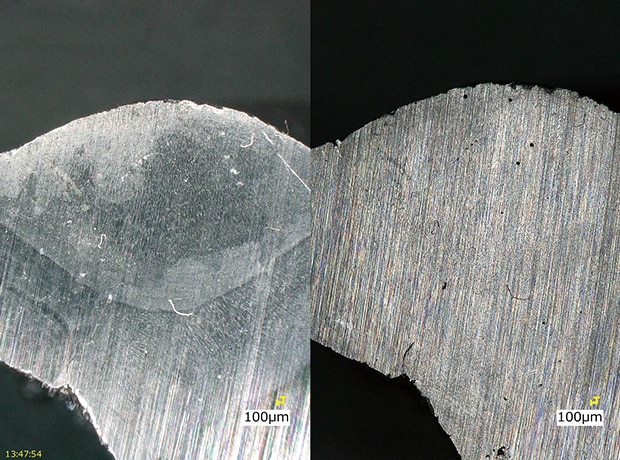

The cross sections of welds usually have low contrast between penetration and base material, so measurement using conventional microscopes is difficult and leads to variations between operators. Also, in the case of stereoscopic microscopes, it is necessary to visually check the scale and manually enter measured values.
In recent years, however, technological advancements in Digital Microscopes have solved the issues of conventional microscopes and have significantly changed the clarity of weld penetration and the efficiency of dimensional measurement. KEYENCE's VHX Series ultra-high-definition 4K Digital Microscope improves the efficiency of weld penetration inspection with clear images and dimensional measurement supported by the latest high-resolution lens, 4K CMOS image sensor, lighting innovations, and image processing technology.

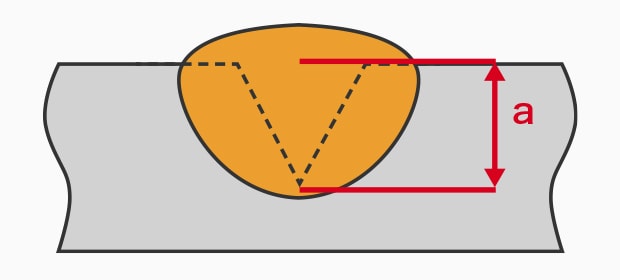

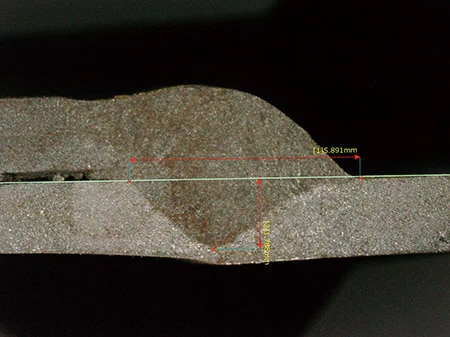

Accurate weld penetration measurement depends on capturing three core dimensions: depth, width, and the cross-section profile. Each provides a different view of joint quality. Depth confirms that the weld reached far enough into the base material to form a solid bond. Width shows the lateral spread of the weld pool. The cross-section profile reveals the overall geometry and highlights any asymmetry or irregular fusion patterns.

In high-volume production, capturing these dimensions manually is not practical. Even experienced technicians can struggle with consistency when measuring dozens of samples per shift. Automated digital systems address this by locking measurement points to detected edges rather than visual estimates. This makes results more comparable across batches and reduces the chance that marginal defects go undetected.

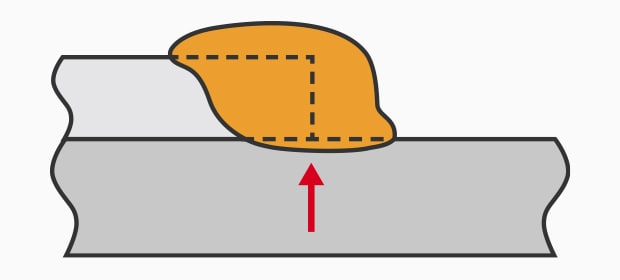

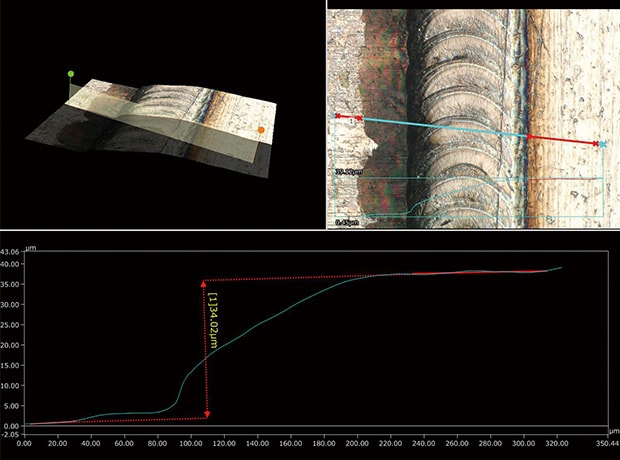

Cross-section profiling is especially useful when evaluating partial penetration welds. Because these joints do not run through the full plate thickness, the exact depth and shape of the weld must fall within specific tolerances to meet strength requirements. A digital microscope with profile measurement capabilities can extract a complete cross-section curve in seconds, giving quality engineers a clear record of each sample.

Getting weld penetration measurement right has real consequences for safety and cost. Components that pass inspection with inaccurate data may later fail under load, leading to costly recalls or, in critical applications, safety incidents. Reliable measurement eliminates that risk by confirming that every weld meets its specification before the part moves to the next stage.

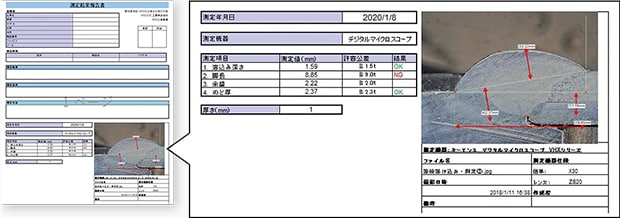

There are also efficiency gains worth noting. When operators can measure and report in a single workflow, inspection time drops significantly. Instead of switching between a microscope, a scale, and a spreadsheet, the entire process happens on one platform. Teams in automotive and aerospace manufacturing have reported measurable reductions in inspection time after switching to integrated digital solutions.

Consistent data also supports process improvement. When measurement records are stored digitally, quality teams can identify trends over time. If a particular weld type begins showing shallower penetration across multiple batches, that pattern becomes visible early. Catching it early means correcting the process before defective parts accumulate. For more on digital microscopy capabilities, review digital microscopes or explore the VHX Series for detailed product specifications.

The VHX Series is a powerful tool that solves problems in conventional measurement and inspection while improving work efficiency. It does so by way of its clarity that can be achieved only with 4K high-resolution images, acquisition of numeric data through high-accuracy measurement, and data saving and utilization. It is equipped with many other advanced functions that were not conventionally available. In addition, many other functions are also provided to meet on-site requirements for speed and accuracy, such as a seamless zoom function that automatically changes the magnification between 20× and 6000× without lens replacement, the Advanced Optical Shadow Effect Mode and multi-lighting functions that help express the fine details of uneven surfaces clearly, and automatic templates for repeated measurements.
