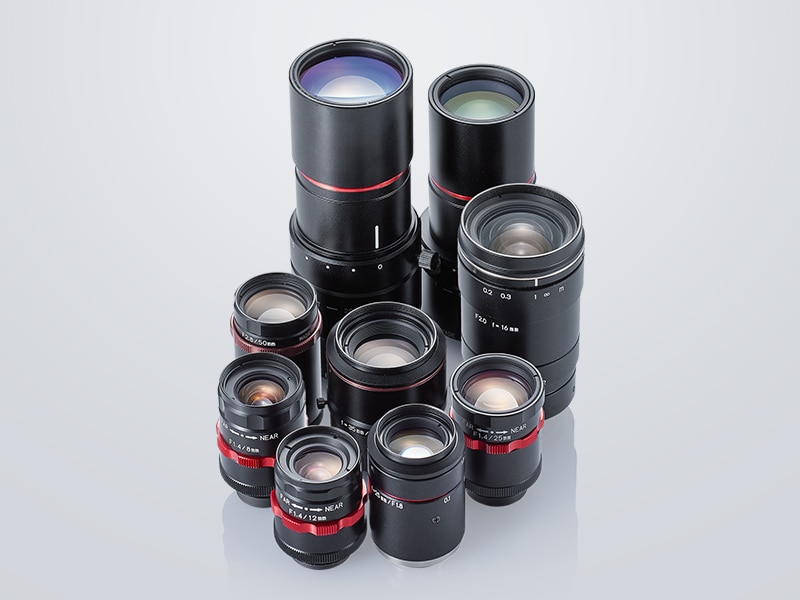

Optimizing Image Quality with the Right Machine Vision Lens
For industries like manufacturing and robotics, machine vision serves as the first step in capturing precise and reliable data. Machine vision lenses are included in every step of the process, from inspection to automation. This system directly influences the accuracy of measurements and defect detection and monitors system performance. Selecting the right lens is not merely a technical step. It has to be a strategic decision that provides optimal image quality for the unique demands of any application.
A poorly chosen lens, even with an advanced camera, can introduce issues operators would rather not deal with. Instead of improving workflows, they can instead be fighting blurry details and image distortion. Understanding the key factors that go into machine vision lens selection, like sensor compatibility, focal length, and aperture, is essential to making sure every pixel contributes to a more optimal production.
The Basics of Machine Vision Lens Selection
Much like a camera, a machine vision lens is a specialized component that is designed to project an image onto a sensor. However, unlike standard photography lenses, machine vision lenses are engineered for precision, consistency, and durability.
The fundamental principle lens is in its ability to manipulate light. For machine vision applications, this can be a pain point, especially if you are operating in low-light environments but need high-quality images. Lenses with built-in distortions can compromise the accuracy of the captured image.
We’re here to provide you with more details.
Reach out today!

Machine Vision Lens Selection Guide: Factors to Consider
When choosing a machine vision camera lens, there are quite a few factors to take into consideration to build an effective imaging system, including:
- Sensor Compatibility: This ensures that the lens matches the size of your camera’s sensor. A mismatch can cause vignetting (describing the darkened corners on photographs) or can waste a camera’s resolution by underutilizing the sensor.
- Lens Mount Type: Whichever lens you choose, make sure the mount type (C-Mount, CS-Mount, or M12) matches your camera. The wrong lens mount can prevent proper attachment or create focus issues.
- Field of View (FOV): Determine the area that the camera needs to capture. This will depend on the size of the object, the desired zoom, and the distance between the object and the lens.
- Working Distance: Consider the distance between the lens and the target object. This distance will affect the magnification capabilities of the lens.
- Focal Length: The focal length ties into the working distance and the FOV. Shorter focal lengths will result in wider FOVs, while longer focal lengths offer greater magnification.
- Aperture (f/#): The size of the aperture, the size of the opening in your camera’s lens, should be based on the lighting conditions and depth of field that a process requires. Larger apertures will let in more light, but the images will have a shallow depth of field. Smaller apertures increase the depth of field.
- Distortion and Optical Performance: Look for lenses with minimal distortion, especially if your industry requires precise measurements and intense defect detection.
- Environmental Factors: Account for temperature, vibrations, and dust. Some applications, such as sawmills or quarries, may require ruggedized or weatherproof lenses.
By understanding the fundamental aspects, you can weigh your options and choose a lens that aligns with your technical requirements and the environment of your desired application.
Discover more about this product.
Click here to book your demo.

Choosing the Right Machine Vision Camera Lens for Your Application
The success of a machine vision system depends almost entirely on selecting the right lens. This will determine how well the camera captures details and delivers accurate results. For tasks that involve the inspection of small components or identifying defects or lenses with precise imaging capabilities, this clarity is crucial.
For broader applications, like monitoring an assembly line, lenses with a wider FOV are more suitable. Environmental factors also play a role as, for example, lenses with larger apertures work better in low light conditions but need to be reinforced against debris entering the camera.
Tasks like optical character recognition or barcode scanning may require a lens with high optical accuracy and menial distortion. Applications that require flexibility may benefit from zoom lenses with variable focal lengths.
By aligning lens characteristics with the needs of a task, you can ensure optimal image quality and reliable performance.
Summarizing the Key Steps for Machine Vision Lens Selection
Selecting the right lens is just one step in the broader process of setting up a successful machine vision system. The lens plays a very central role in producing the desired image in the desired quality without needing constant adjustments.
The process begins when the four key parameters (FOV, resolution, working distance, and depth of field) have been identified. These factors are going to determine which lens will work best in the given environment. Once this information has been identified, the next step will be picking the lens that fully captures the intended target.
Standard-resolution lenses are typically suited for sensors with resolutions under one megapixel and work perfectly for basic applications. However, high-resolution lenses are essential for cameras with smaller pixel sizes as they offer minimal distortion.
See the benefits firsthand by signing up for a free trial now.
Free Trial
Why Investing In The Right Machine Vision Camera Lens Is Vital For Image Processing Success
The foundation of any successful machine vision system lies in its lens. It is needed to capture the high-quality images required to automate quality inspections and prevent malfunctions. A high-quality lens ensures that critical details are captured with precision. Whether the task involves identifying microscopic defects or reading printed codes, the lens must provide sharp, distortion-free images tailored to your application.
Beyond image quality, investing in the right lens enhances the overall efficiency of the system. A well-matched lens can provide real-time data and reduce the need for extensive post-processing of that data. It can also optimize a machine’s reliability and profitability as it minimizes downtime.
Ultimately, the choice of lens determines whether a machine vision system succeeds or fails in delivering the desired actionable insights.
Whether you track complex inspections or handle high-speed automation, a properly chosen lens is an investment in quality and reliability. Elevate your machine vision systems today with KEYENCE advanced lens solutions. With industry-leading technology and comprehensive support, we can ensure your system achieves peak performance.
Contact KEYENCE today to discover the perfect lens for your application and elevate your operational precision.
