Automotive Machine Vision: Zero-Defect Quality in Every Component
Modern vehicles demand exacting precision. An automotive vision system plays a central role in meeting that standard across every line from stamping to final assembly. With zero-defect production as the goal, manufacturers rely on these systems to inspect, guide, and verify with unmatched speed and consistency.
The KEYENCE VS Series provides fast and accurate machine vision solutions. Features like one-click image optimization and powerful AI tools help manufacturers meet regulatory standards and ensure quality control.
Why Vision Systems Matters in Automotive Manufacturing
In a production environment defined by tight tolerances and high volume, each weld, seal, and connector must meet exact specifications. Vision systems in automotive lines replace outdated spot-check methods with inline, real-time inspection, which reduces rework, escapes, and unplanned downtime.
What Are Automotive Vision Inspection Systems?
An automobile inspection system uses advanced image-based tools to monitor every part, process, and final assembly step. These systems combine flexible hardware with powerful software, some of which is AI-enabled to detect defects, verify assembly, and measure tolerances. KEYENCE platforms support 2D, 3D, and multispectrum setups that address a wide range of inspection needs without custom coding.
Inspection of rubber brushings
O-ring color difference inspection
Missing-roller inspection for bearings
Shaft material sorting
Inspection of engraved characters of an ECU case
Inspection of engraved characters on a gear
Burn-mark inspection
Sealant coat inspection
Applications of Automotive Vision Systems

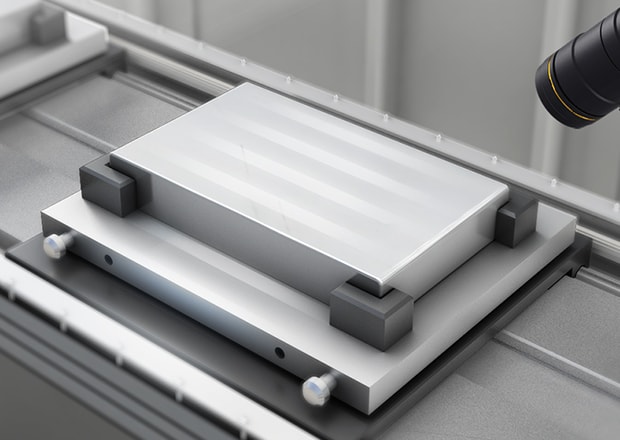

Surface Inspection of Automotive Parts
In the context of quality inspection for the automotive industry, vision systems are typically employed to inspect the surface paint quality on bodywork and detect defects like runs, dirt, or orange peel texture. Early detection of these defects is essential, as it allows for corrective action before further assembly, reducing waste and rework.

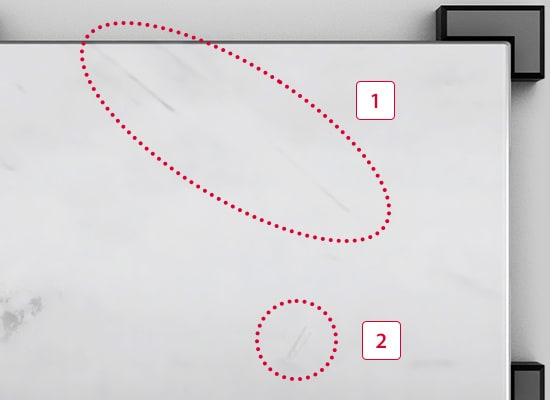

Normal image
-
1Scratch
-
2Dent

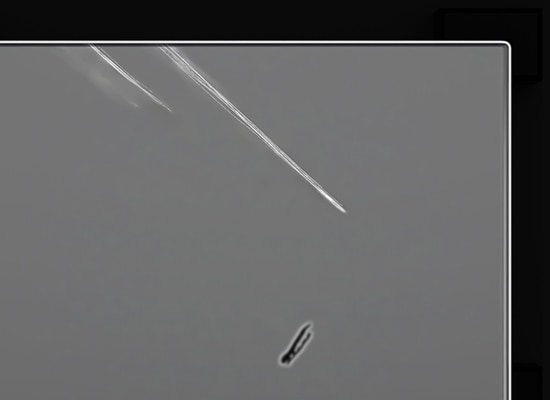

LumiTrax™ image
Dimensional Measurement in Automotive Manufacturing
Vision systems for the automotive manufacturing industry are used to measure all the important dimensions and tolerances of the automotive components and body to ensure they meet the specifications. This is crucial for vehicle performance and customer satisfaction.

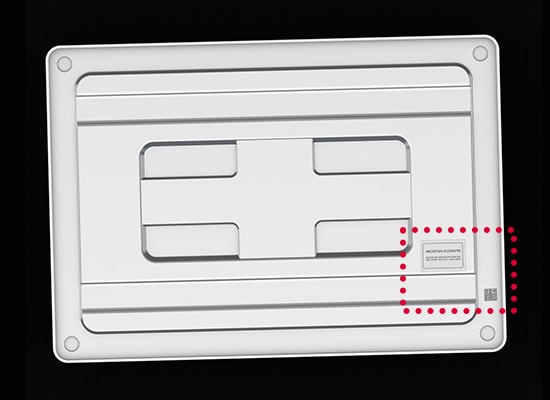

Whole field-of-view image

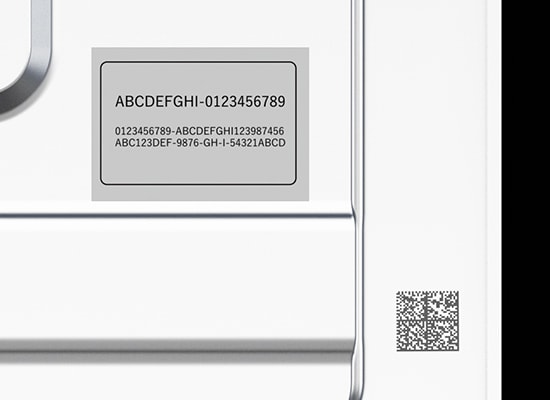

Magnified image

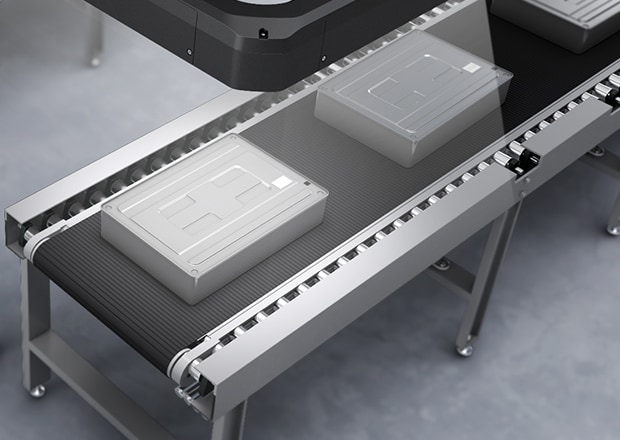

Assembly Line Verification
Aside from robot guidance and precise placement in automated assembly lines, a vision system for the automotive manufacturing industry ensures that the assembly is installed correctly, using the correct components. This includes checking for presence, correct orientation, and placement of components used in the assembly.
Typical Automotive Use Cases
Surface flaws on gears, scratches on mirror housings, and o-ring color differences are detected early, before they move downstream. Dimensional checks confirm tolerances in pistons, shafts, or EV battery components. During assembly, vision systems verify part presence, alignment, and fastener orientation on moving lines. In EV and powertrain applications, 3D machine vision for automotive manufacturing enables robots to handle fragile components with high accuracy.
Key Technologies & Platforms
KEYENCE offers platforms to match any production scale. The VS Series includes AI tools and one-click optimization for fast inspections. The CV-X Series delivers logic-based configuration and reliable part recognition. For complex or large-scale jobs, the XG-X Series offers customizable architecture with support for line scan, multispectrum, and telecentric optics. Each system integrates easily with PLCs, MES, and vision-guided robotics.
Benefits for Automakers
In automotive manufacturing, machine vision systems reduce inspection variability and catch defects before they move downstream. These platforms also simplify the changeover process for new vehicle models.
Introducing Our AI-Powered Vision System for the Automotive Industry
Technological advancements are constantly enhancing workplace efficiency and accuracy, transforming the way businesses operate. AI-powered vision systems significantly improve productivity and minimize errors, leading to consistent, high-quality output. Our vision systems also enable manufacturers to contribute to sustainability by identifying issues early on in the manufacturing process, reducing waste.
The core features of our vision system include:
- Accurate Inspection: Identifies defects and deviations immediately during production.
- Adaptive Learning: Consistently improves accuracy by learning from new data and patterns.
- Scalable Integration: Easily integrates with the existing manufacturing system for seamless automation.
- High-Speed Processing: Analyzes vast amounts of visual data quickly, maximizing production uptime.
Discover how our vision system can transform your manufacturing process and elevate your production efficiency and operation quality today.
Applications and Examples
FAQs About Vision Systems in the Automotive Industry
What Are the Benefits of Using Vision Systems in the Automotive Industry?
The automotive industry is governed by strict regulations and standard requirements for quality, safety, and efficiency. It was one of the first industries to embrace robotics in manufacturing and machine vision systems, by extension, as these significantly aid the vehicle manufacturing process.
What Types of Vision Systems Are Commonly Used in Automotive Manufacturing?
Vision systems for the automotive manufacturing industry use a variety of sensors and cameras to ensure precision, quality, and efficiency throughout the entire manufacturing process.
However, these systems are often application-specific, with one part of the manufacturing process relying on its respective vision system.
What Challenges Do Vision Systems Help Address in the Automotive Industry?
Vision systems for the automotive manufacturing industry address various challenges, from parts sorting, material handling, and logistics to vision-guided pick-and-place and welding robots, assembly verification, and quality control.
How Do Vision Systems Support Traceability and Compliance Requirements in the Automotive Industry?
The automotive industry faces strict regulatory standards and high consumer safety expectations, so traceability and compliance requirements are crucial in manufacturing. Vision systems for the automotive manufacturing industry enable manufacturers to track the movement and use of parts and components throughout the manufacturing process, which is important in case of a recall.
What Are the Primary Considerations When Selecting Vision Systems for the Automotive Industry?
Primary considerations when selecting the right vision systems for the automotive manufacturing industry include understanding the specific application needs before finding the right type of vision system. Once found, consider the system’s integration with your current system, its technical specifications, and cost.
How Do Automotive Inspection Vision Systems Improve Defect Detection?
Inspection vision systems for the automotive manufacturing industry improve defect detection through advanced imaging technologies and analytical algorithms—including machine learning and AI.
What Are the Benefits of Using Vision-Guided Robotics in Automotive Manufacturing?
Automotive vision systems enable robots to perform their operational tasks with high precision, including part pickup and precise placement, welding, spotting, detailed inspections, and complex assembly operations.
How Do Automotive Vision Systems Contribute to Cost Reduction and Efficiency Improvement in Manufacturing Processes?
Vision systems for the automotive manufacturing industry help reduce manufacturing costs in several ways. They can perform operational tasks much faster than humans while being less prone to errors. This increases operational efficiency while also aiding in defect detection before further value is added. They also reduce manual labor costs, downtime associated with malfunctions, etc.
Are Vision Systems Suitable for EV and Battery Production?
Yes. Vision systems are commonly used to inspect EV battery packs, terminals, welds, and connectors. They deliver high accuracy even in compact or heat-sensitive environments.
Can AI Detect Anomalies Invisible to Rule-Based Tools?
Built-in AI tools identify surface and dimensional defects that traditional systems might miss. These tools adapt to pattern variations without extensive retraining.
