I want to automatically change the screen.

This section explains how to automatically change the screen from a PLC without operating any switches.
To change to the alarm screen or another specific screen, use global function control. To change to an arbitrary screen, use the system memory area.

Changing to a specific screen

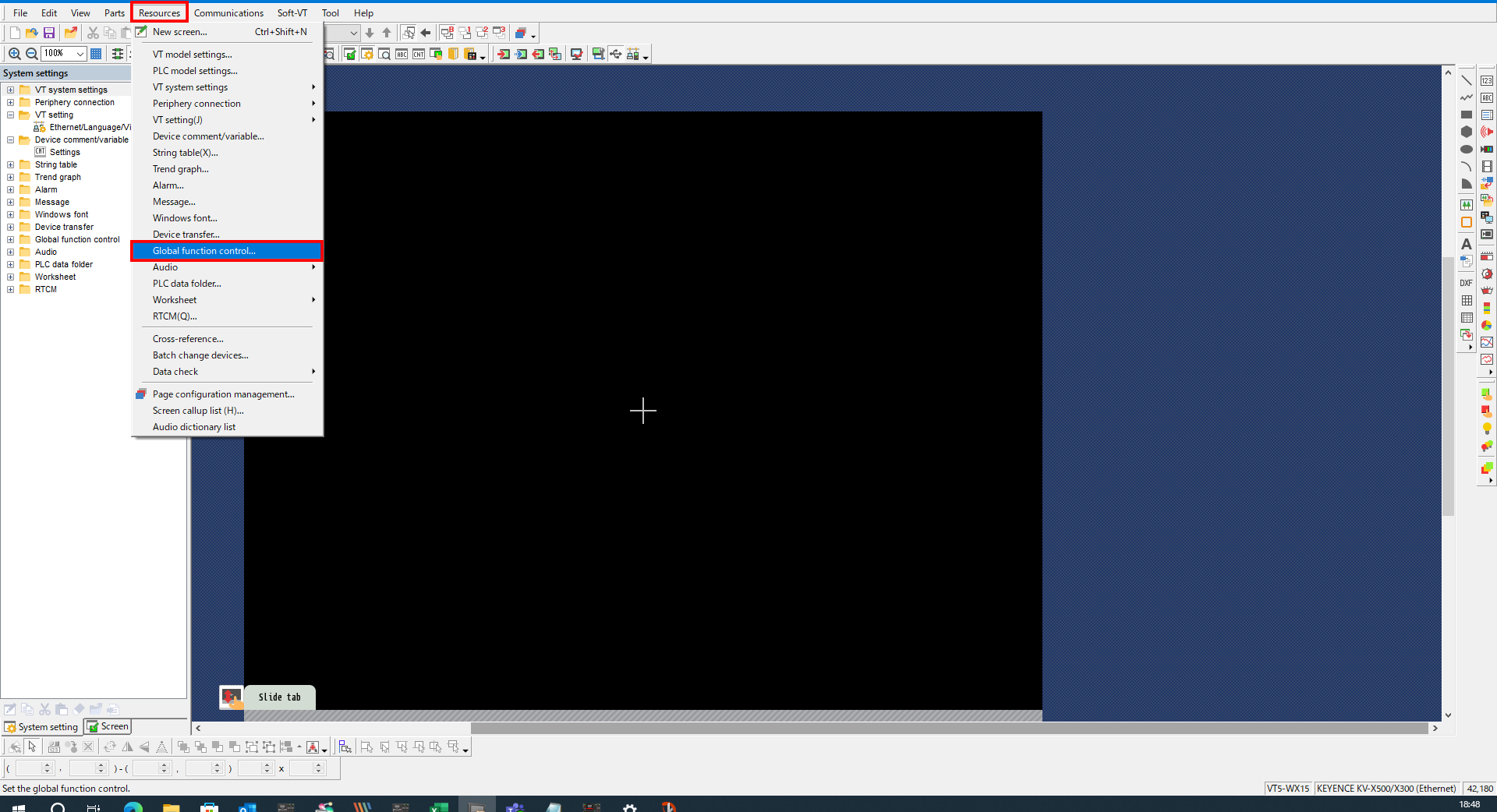

1. From the menu, select [Resources] -> [Global function control].

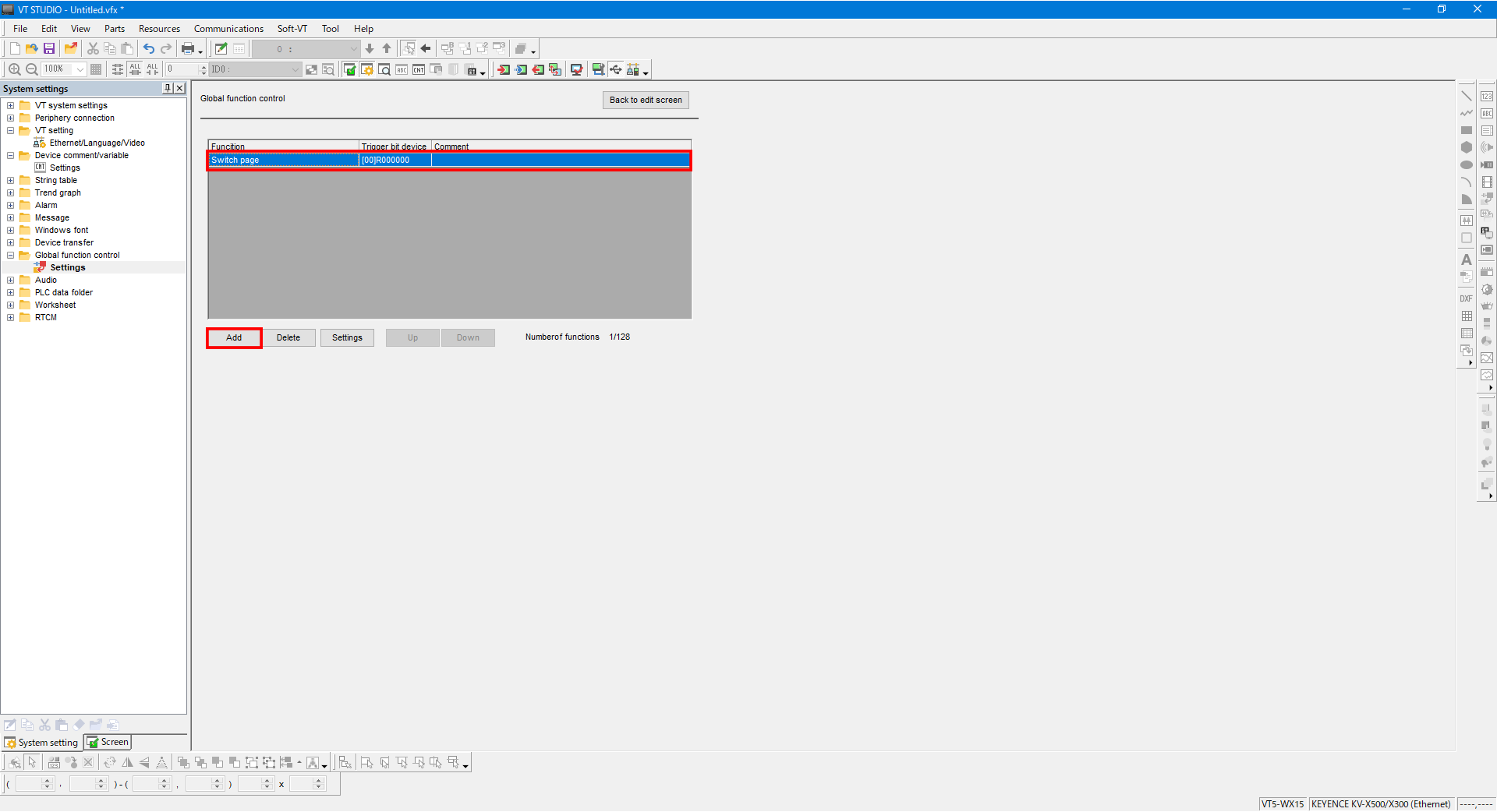

2. Click [Add], and then double-click the added function.

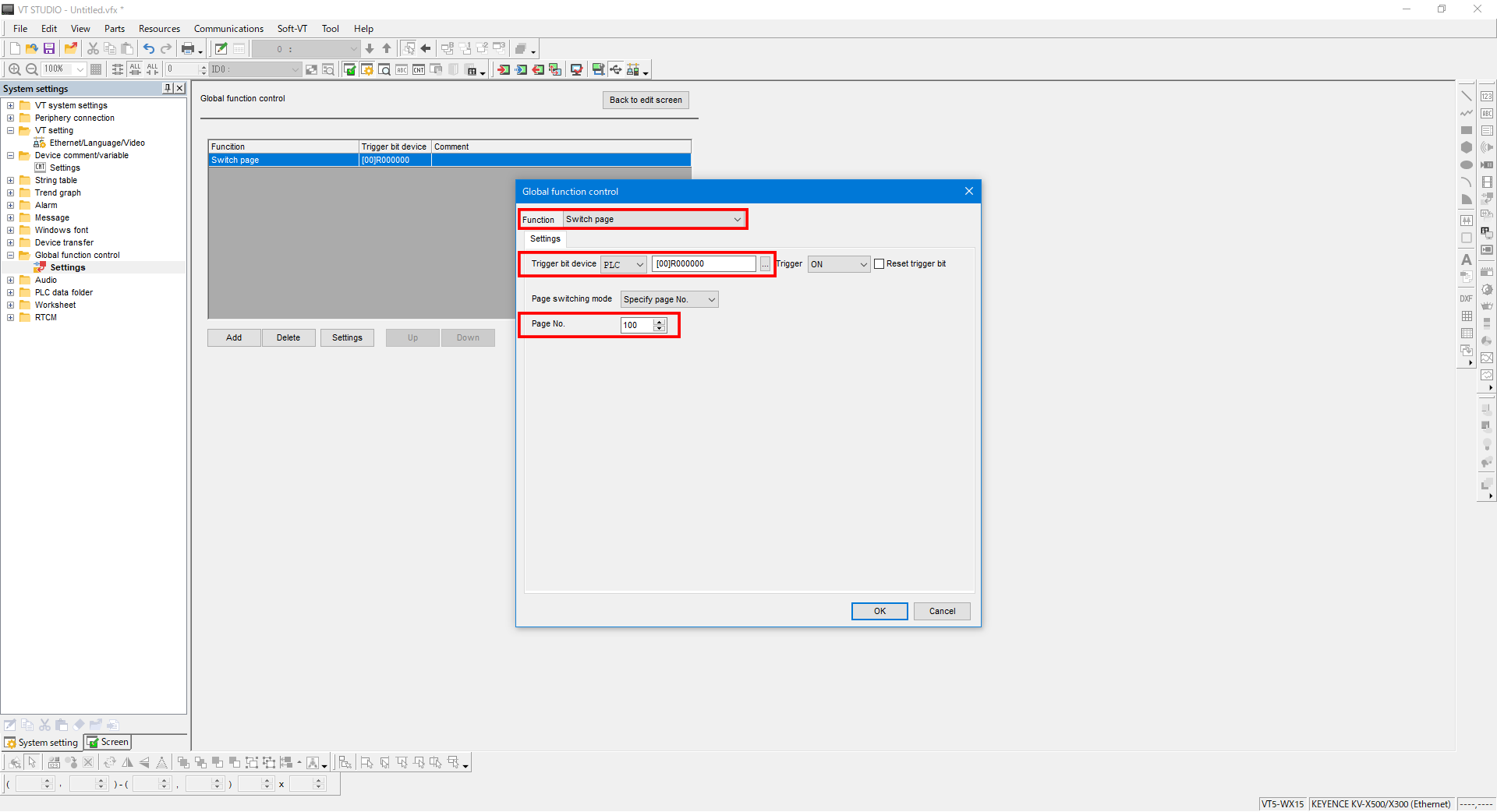

3. The example settings in the following figure are for changing to the screen of page number 100 when R000000 is set to ON.

Changing to an arbitrary screen

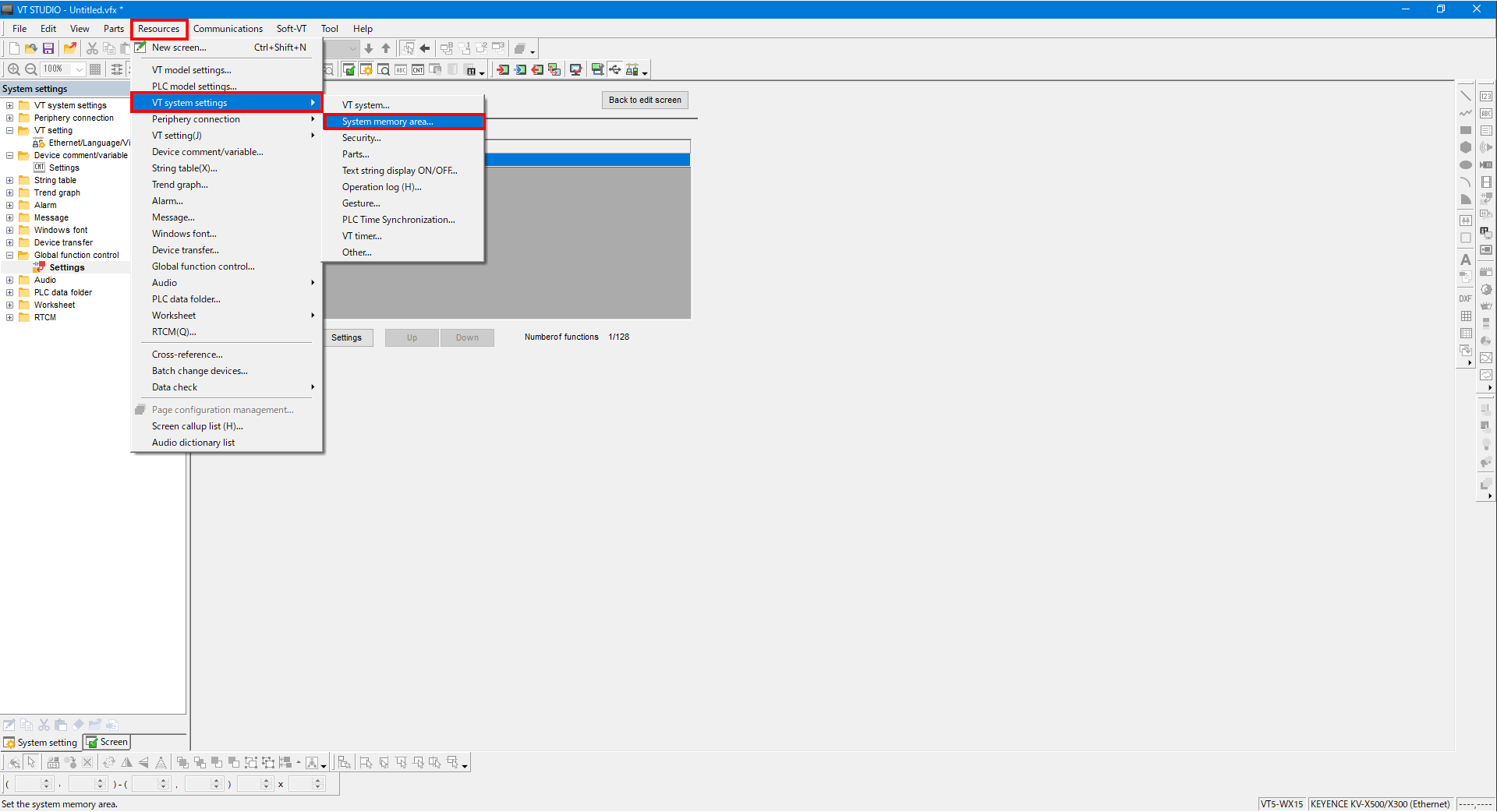

1. From the menu, select [Resources] -> [VT system settings] -> [System memory area].

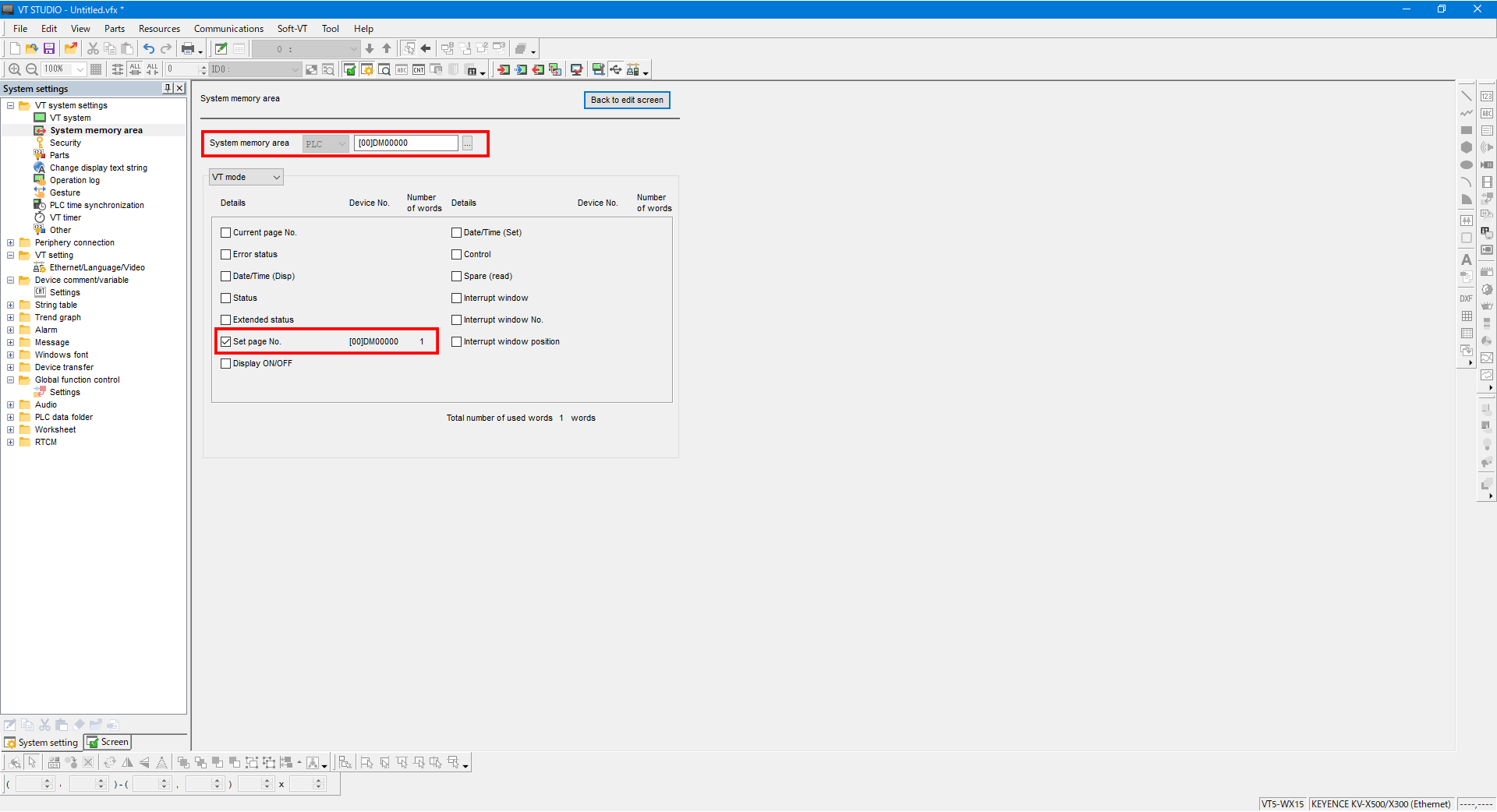

2. With “System memory area,” specify the leading device of the devices to occupy as the system memory area.
Select the “Set Page No.” check box. In the device displayed to the right of this check box, store the page number of the desired screen to switch to that screen.
