I want to arrange multiple copies of the same part just by changing its device number.

This section explains how to paste multiple instances of the same part by changing its device number.

Setting procedure

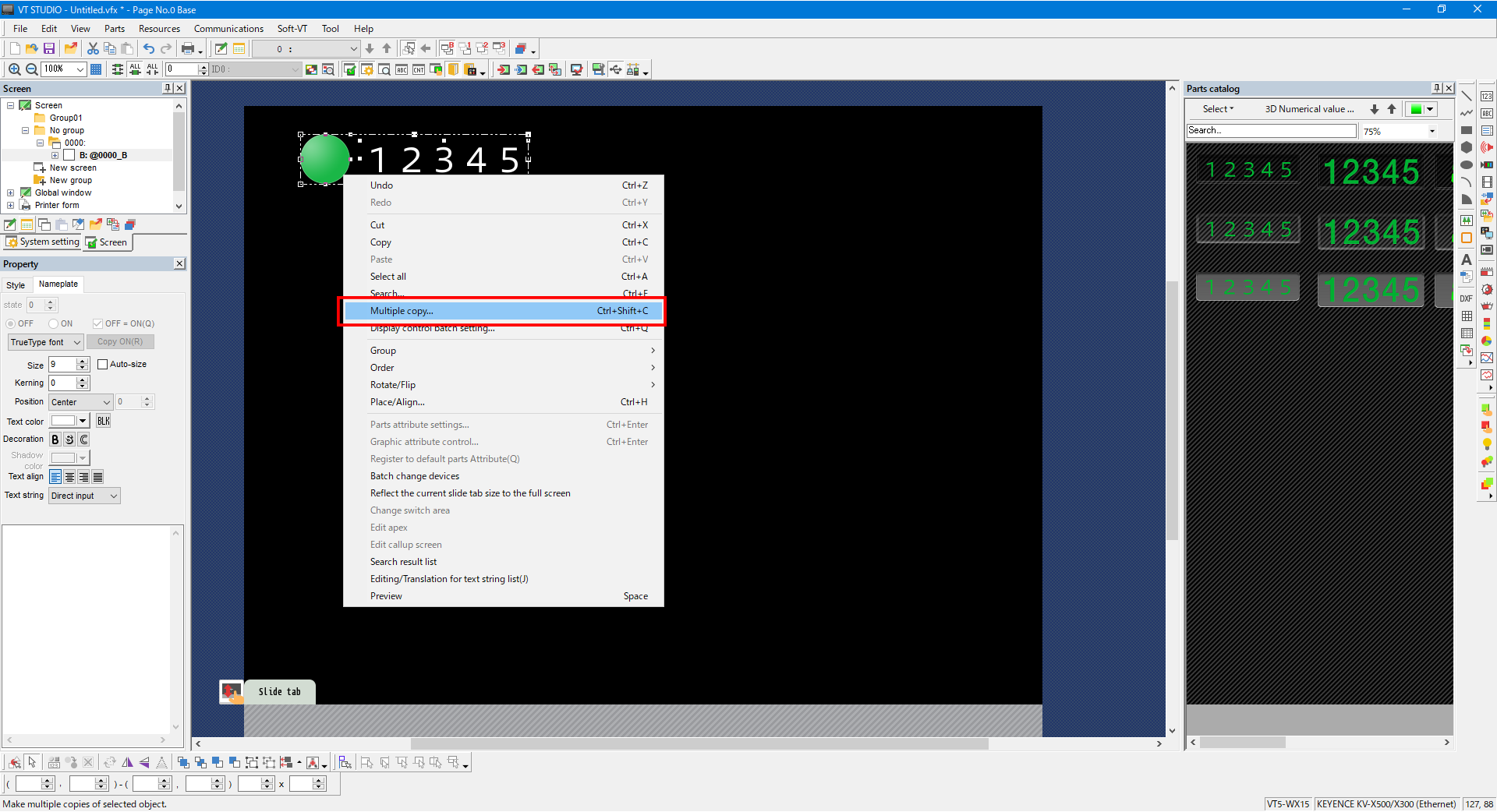

1. Right-click the part to copy, and then select [Multiple copy] from the menu that appears.

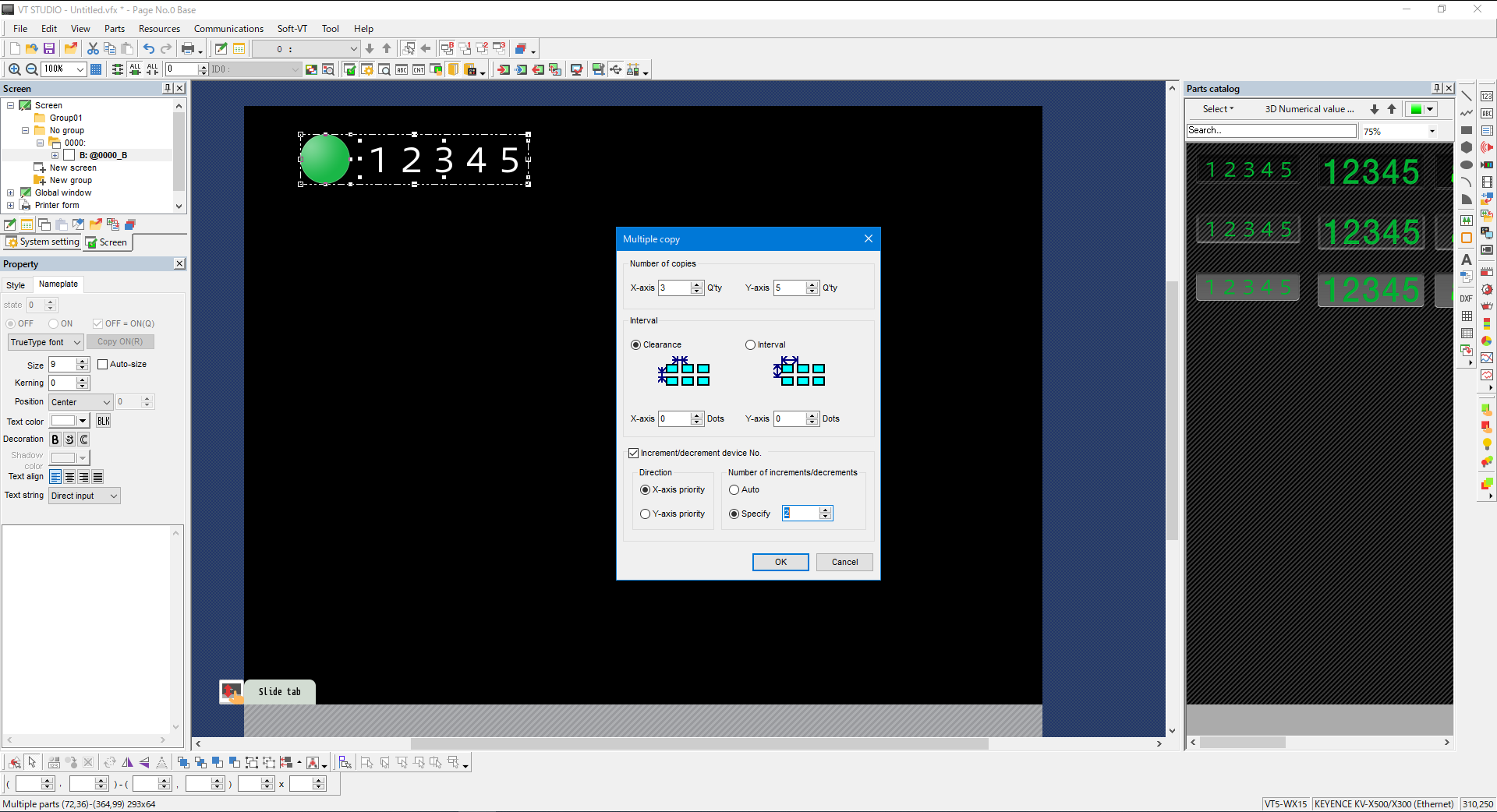

2. The [Multiple copy] dialog box appears. Set the number of copies and the offset between device numbers.

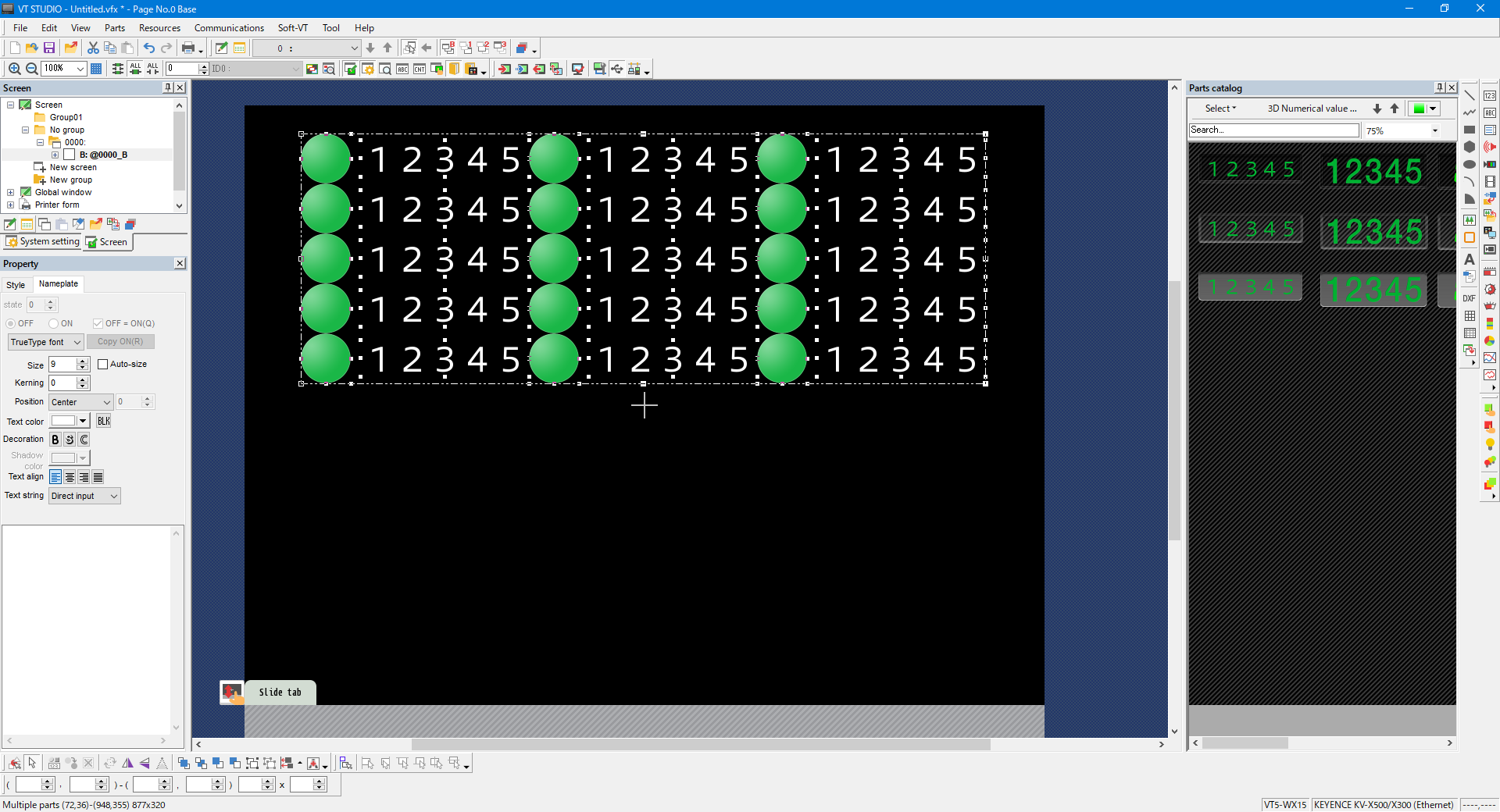

3. Click [OK] to place the set number of parts.
