I want to select parts.
This section explains how to select parts by dragging and dropping them from the part catalog and by using the menu.
Selecting from the part catalog

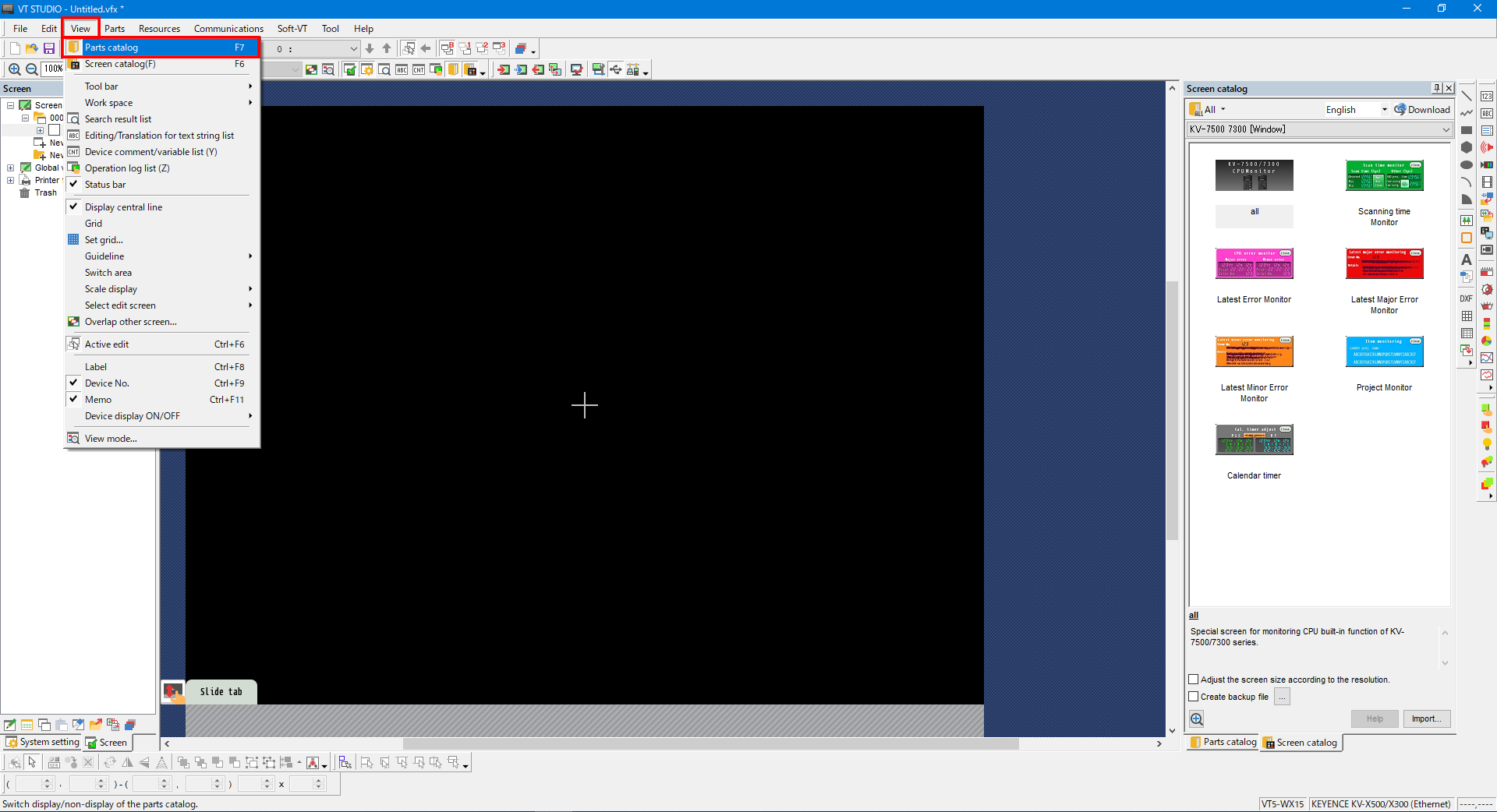

1. On the menu, enable [View] -> [Parts catalog].

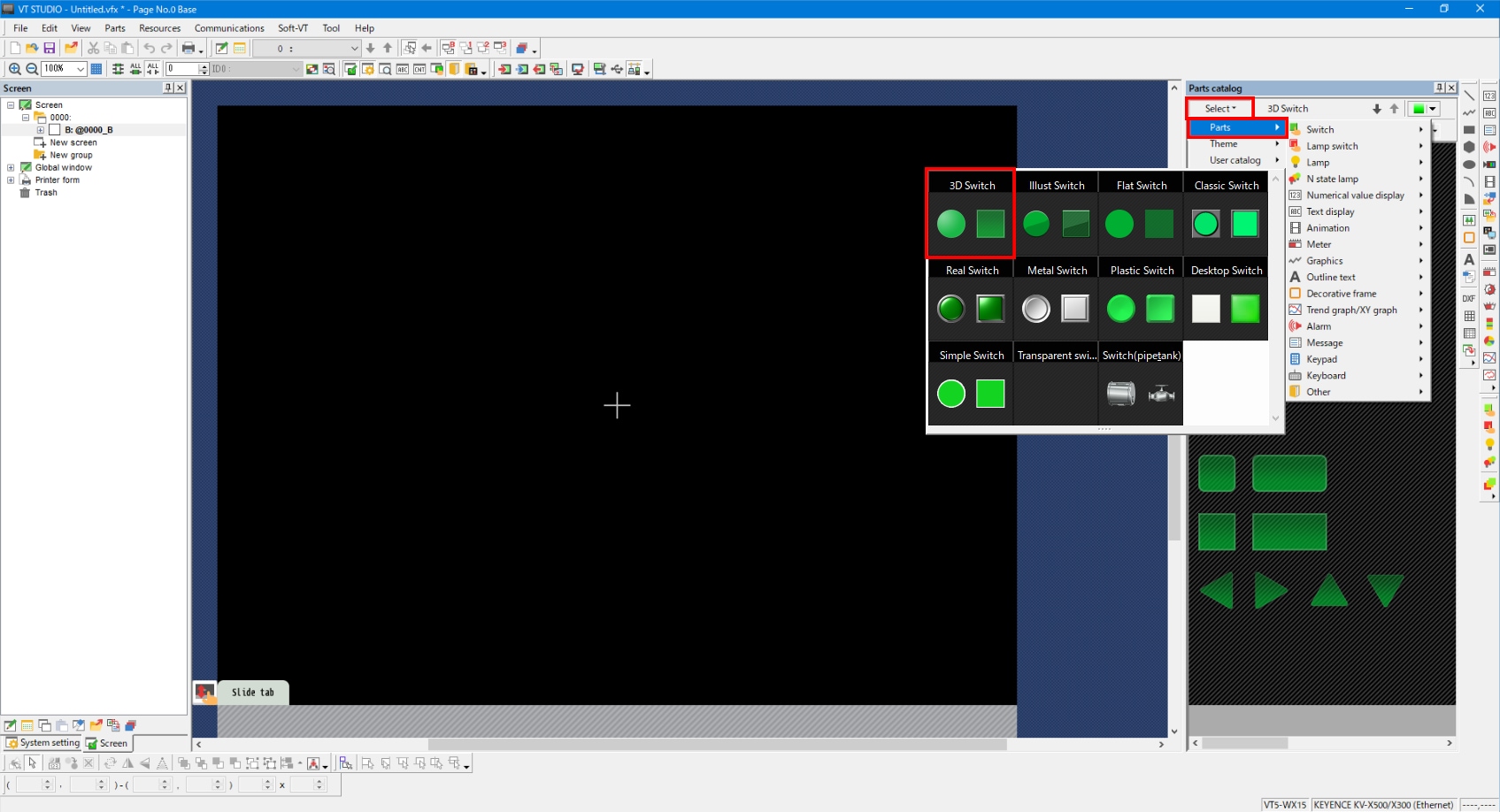

2. The part catalog is placed in VT STUDIO, so select the type and style of the part you want to place from [Select] -> [Parts].

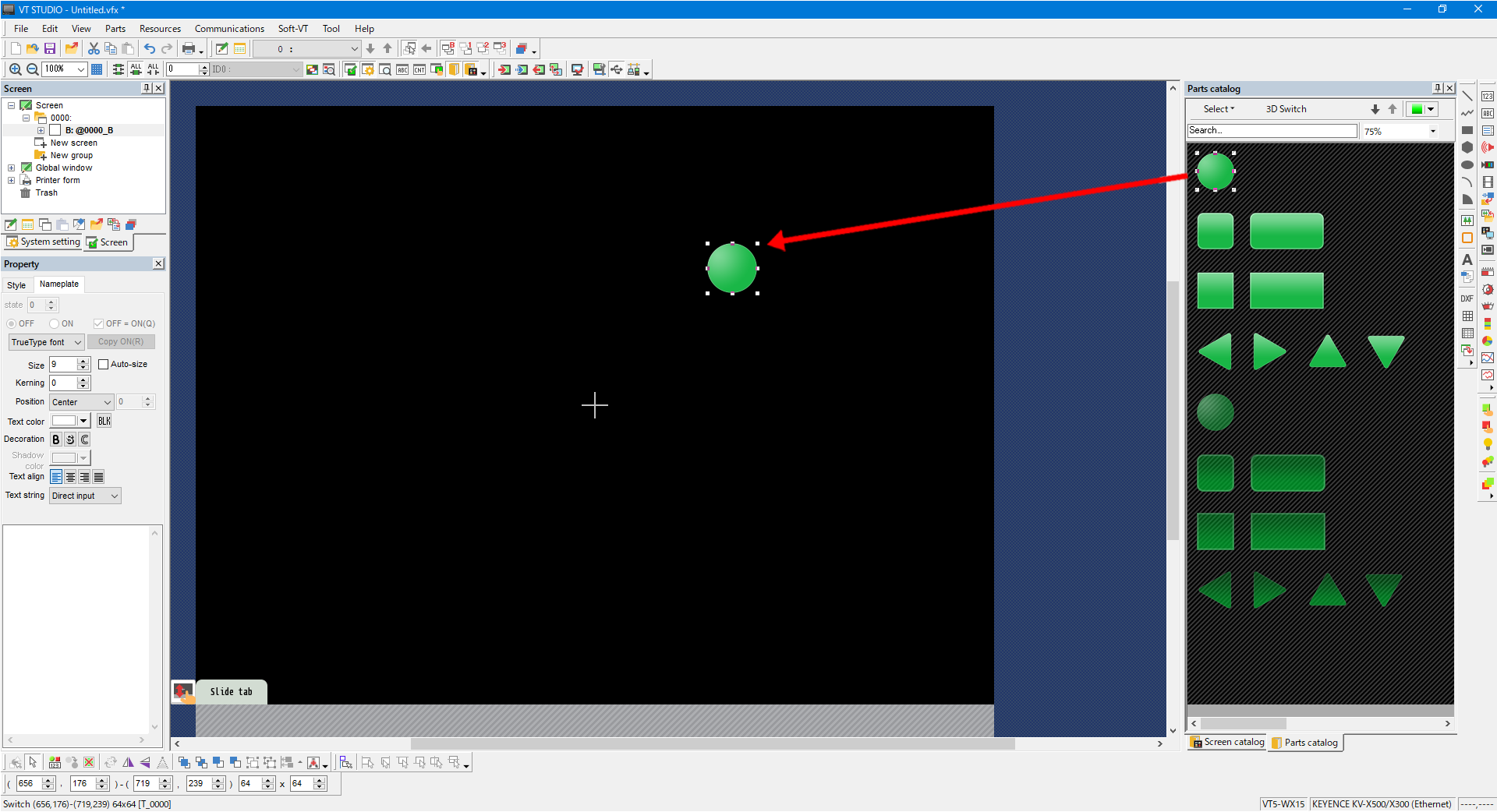

3. Drag and drop the displayed part sample to the screen.

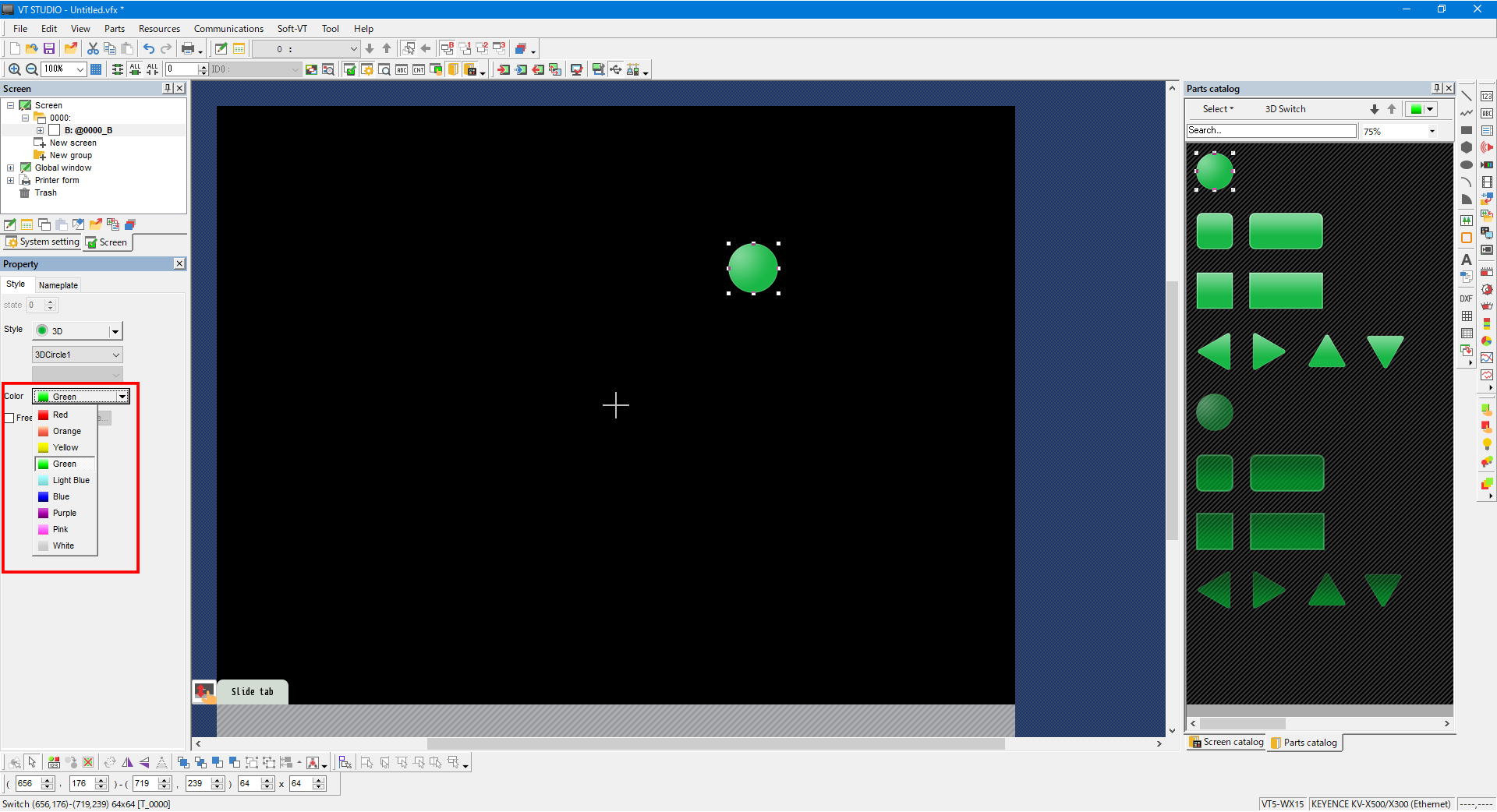

4. To change the color of the part, click it to open its properties.

Selecting from the menu

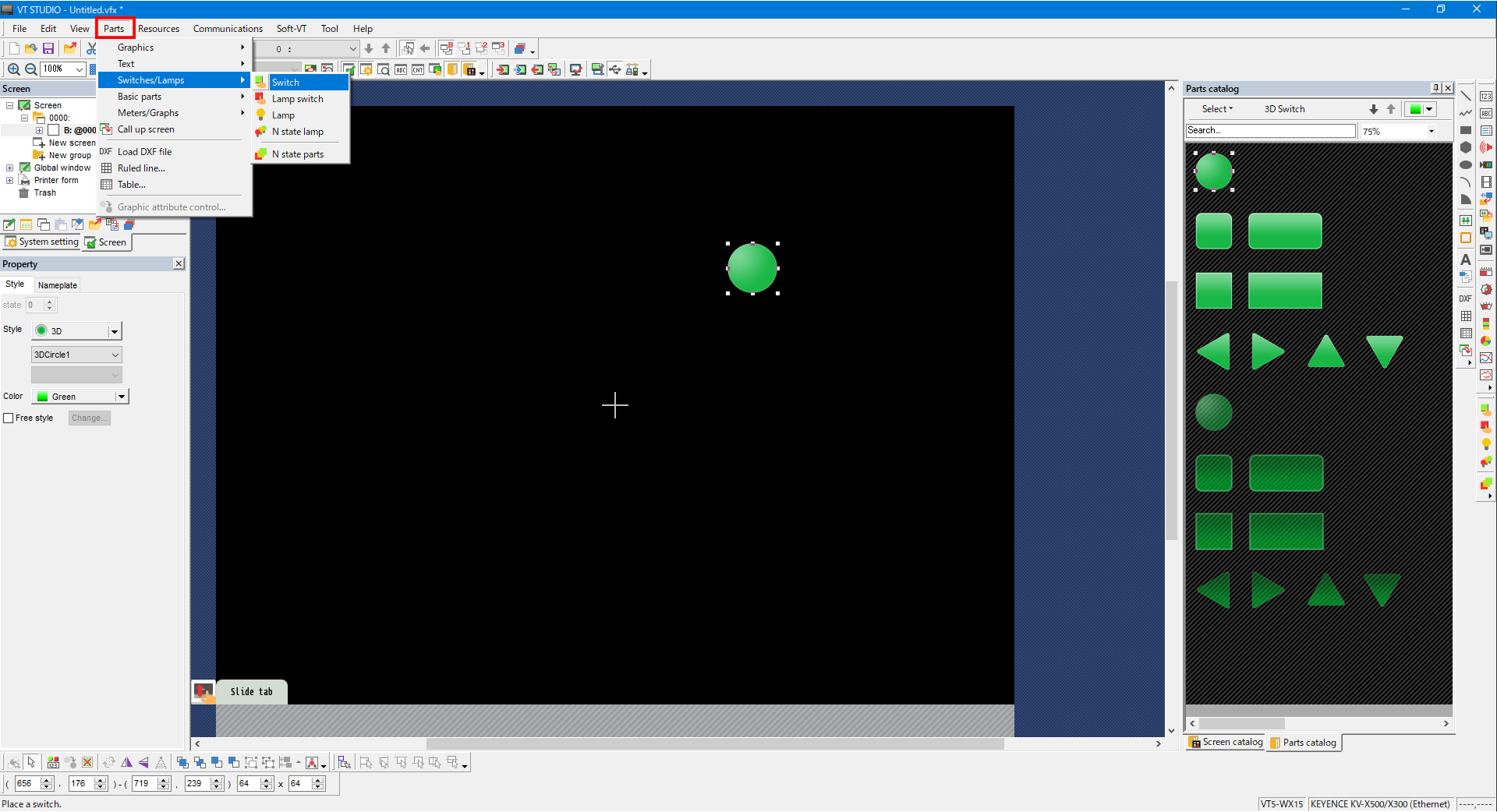

1. From [Parts] on the menu, select the part to use.

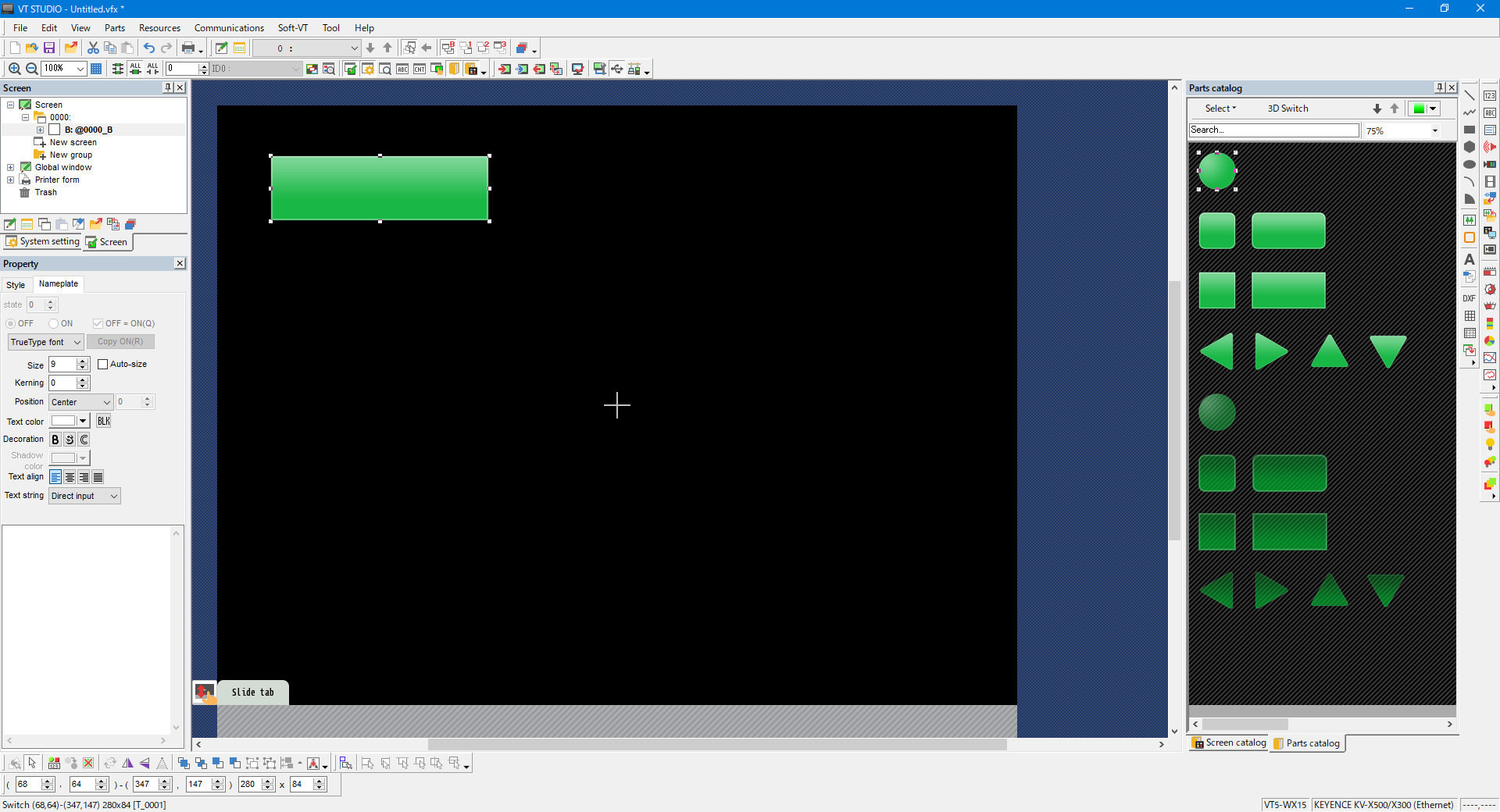

2. Place the part on the screen.
