I want to adjust the part layout.

This section explains how to align multiple parts such as by left-justifying or bottom-justifying them.

Setting procedure

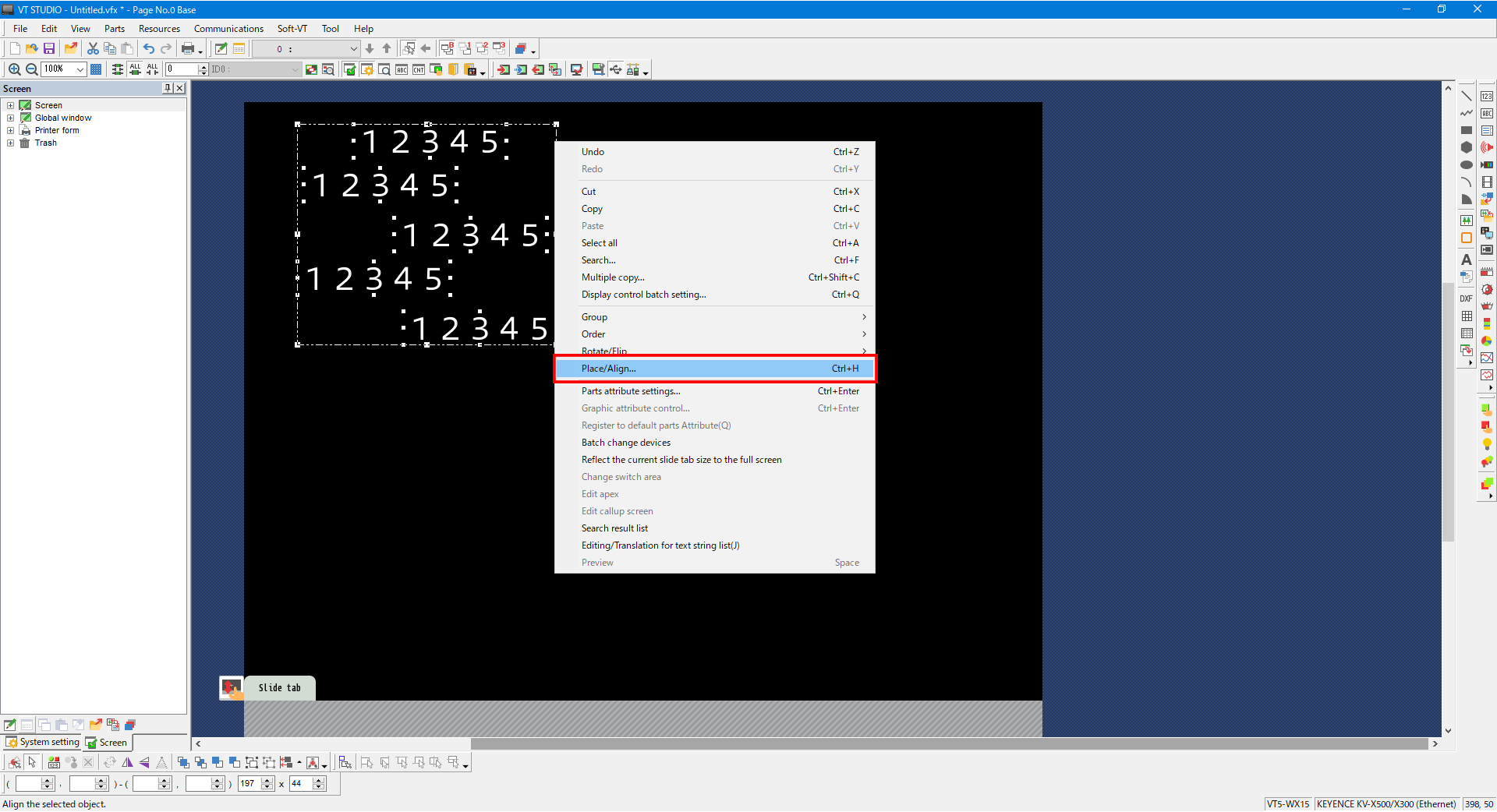

1. Select all the parts to align, right-click them, and then select [Place/Align] from the menu that appears.
Alternative operation: Ctrl + H

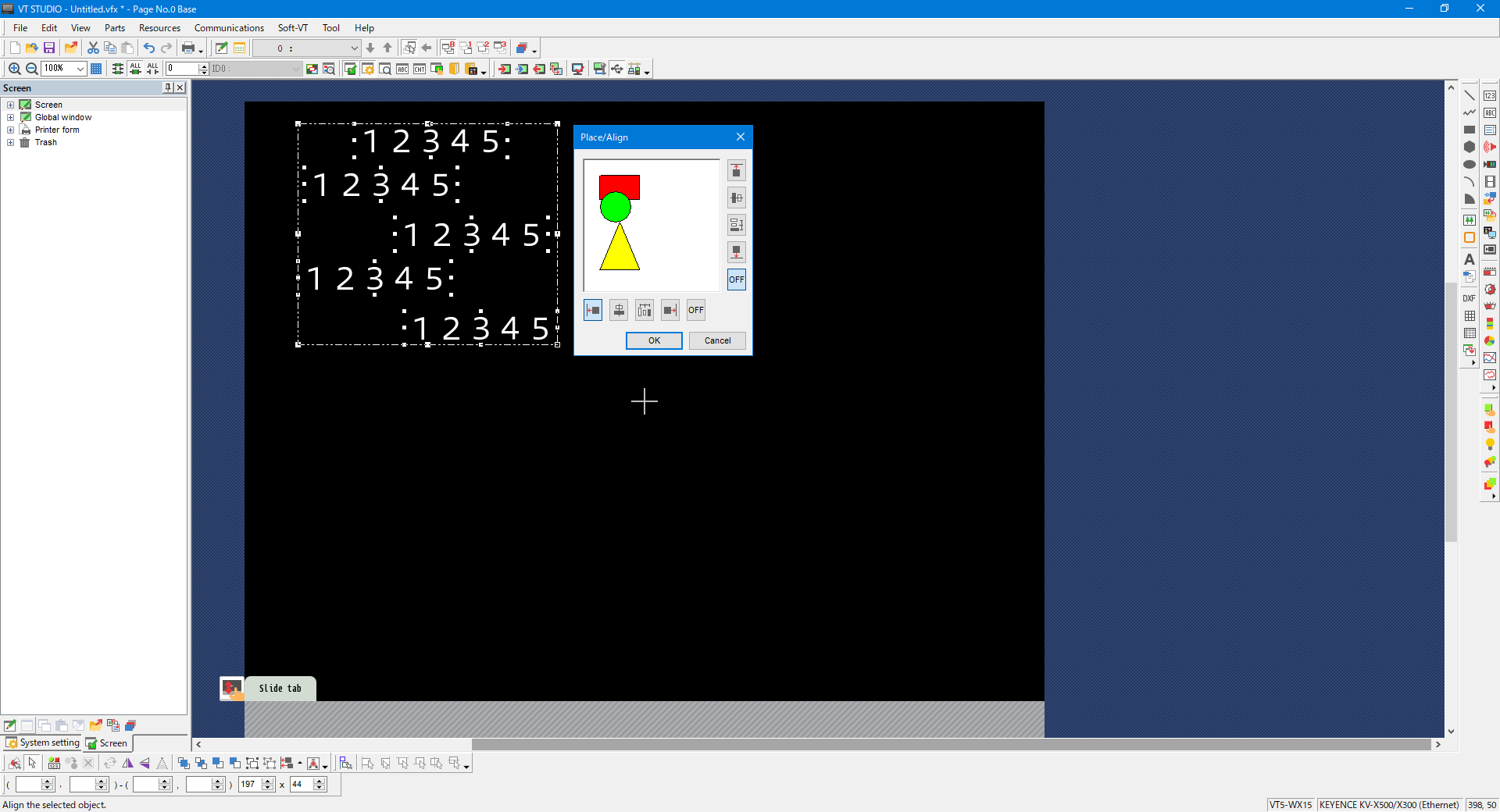

2. Specify the parts to justify, and then click [OK]. The example settings in the following figure are for left-justification followed by top/bottom alignment.

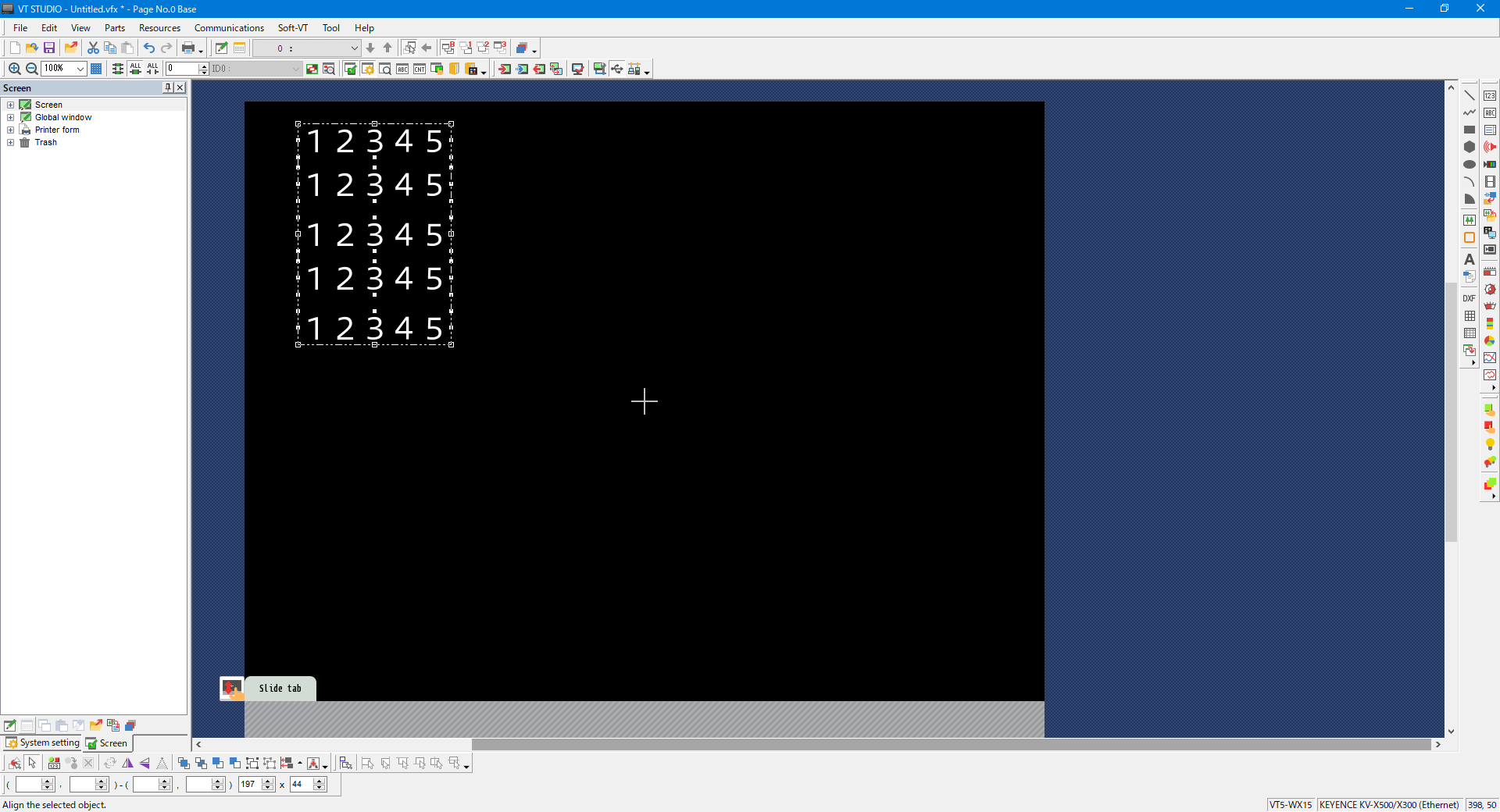

3. The parts are aligned in reference to the specified position.
