I want to transfer/read screens.
This section explains how to use VT STUDIO to transfer/read screen data.
Communication settings

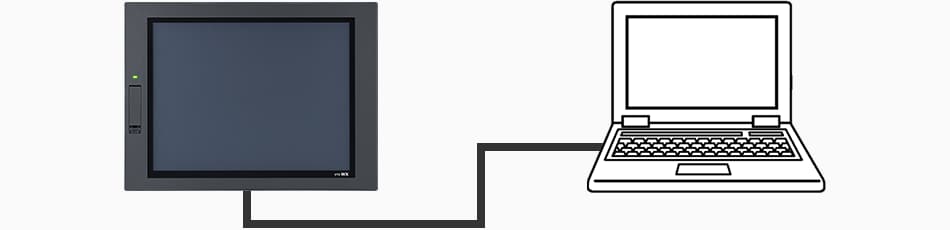

1. Connect the PC and the VT5 with a USB cable or LAN cable.

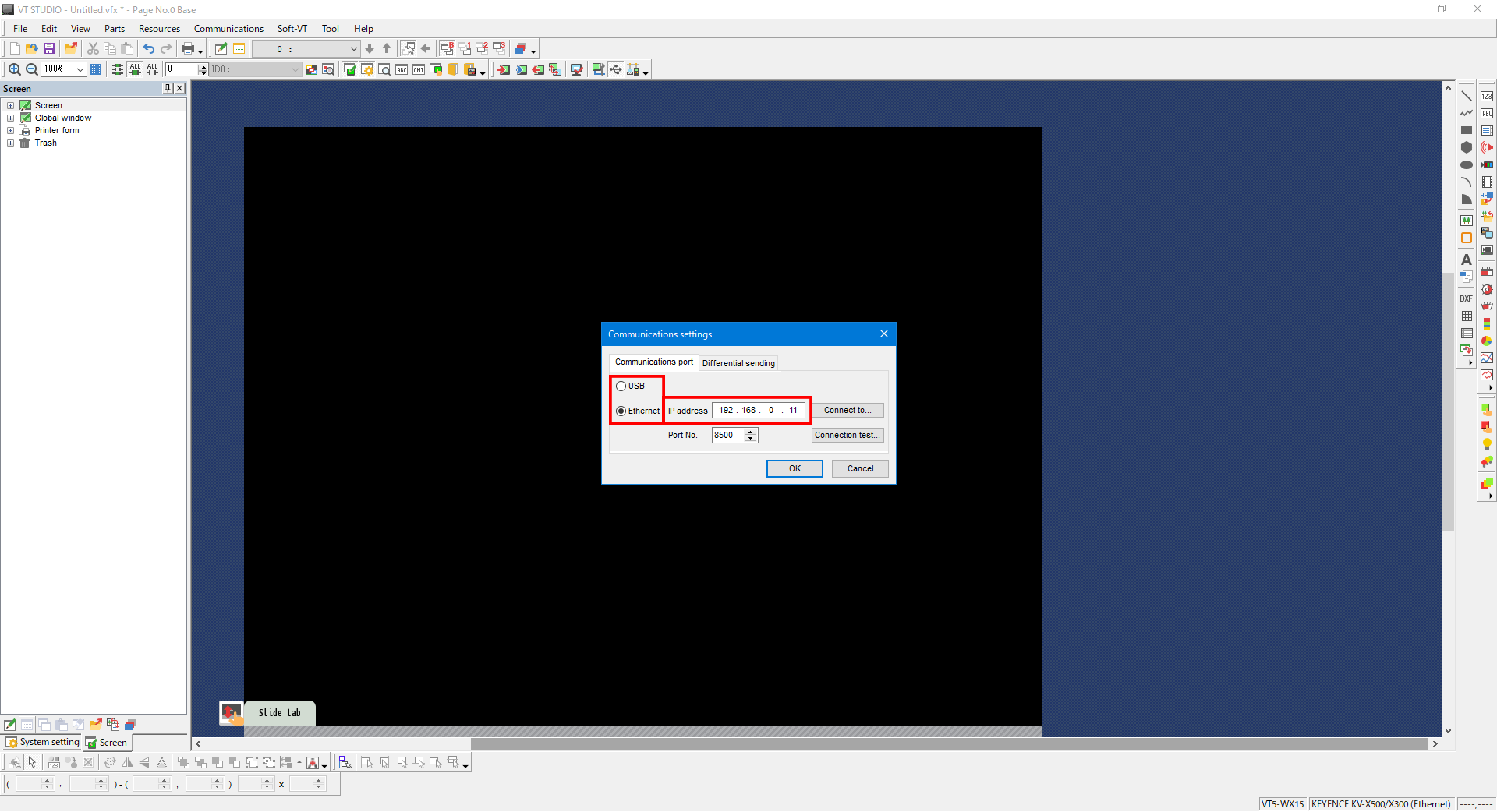

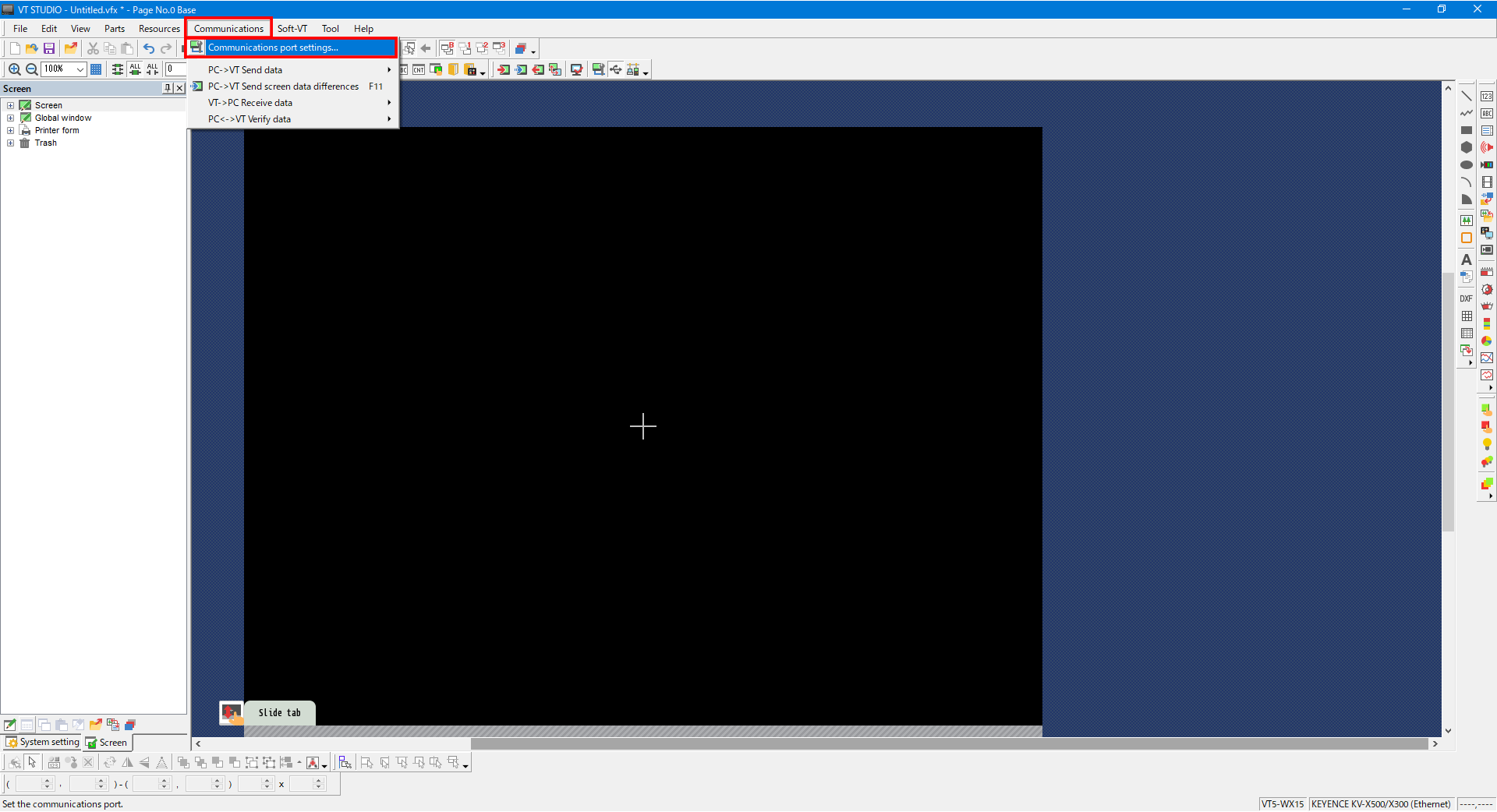

2. From the VT STUDIO menu, select [Communications] -> [Communications port settings], and then configure the settings for communication between the PC and the VT5.


Transferring

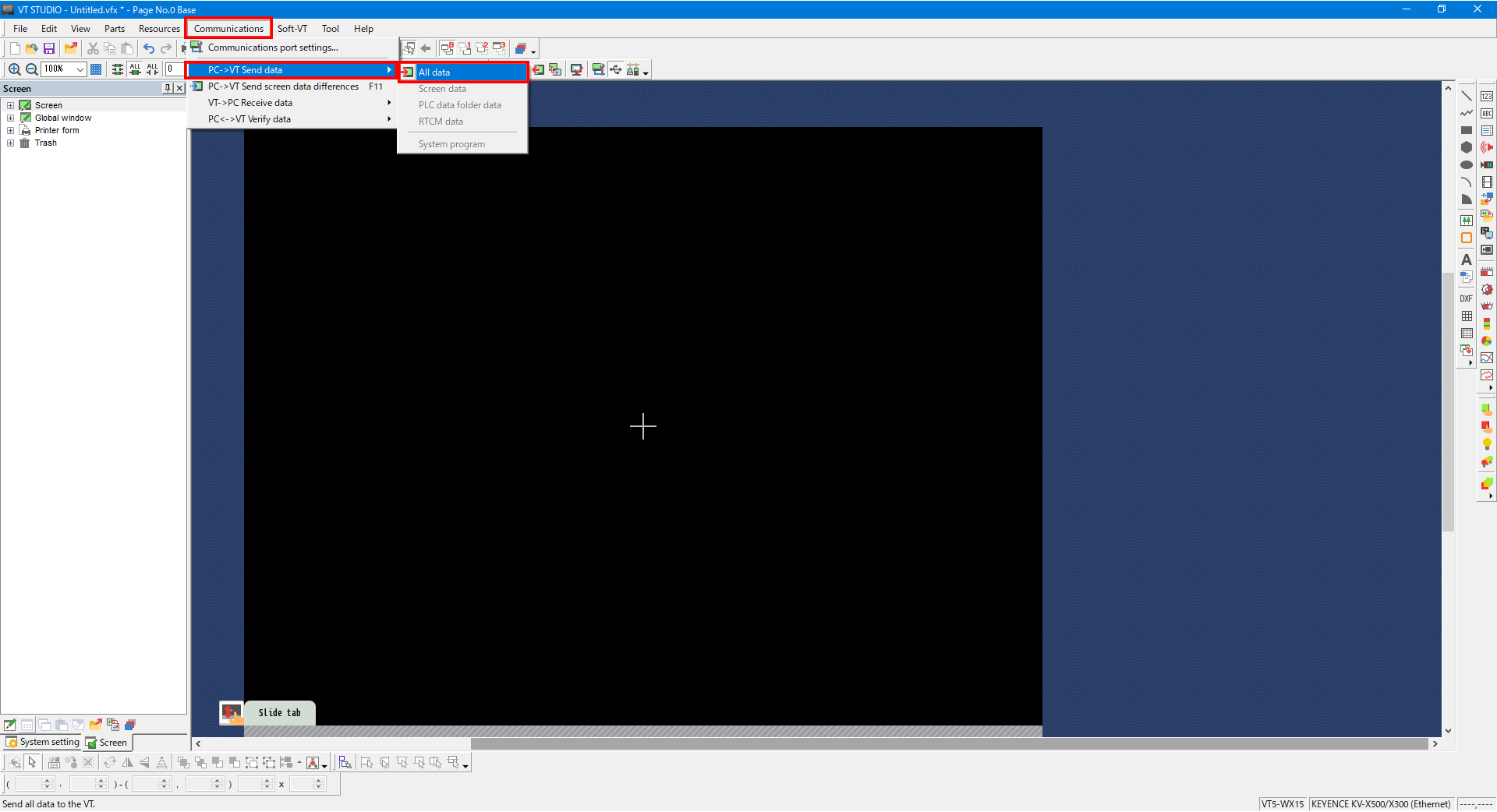

From the VT STUDIO menu, select [Communications] -> [PC -> VT Send data] -> [All data] to transfer the screen data.

Reading

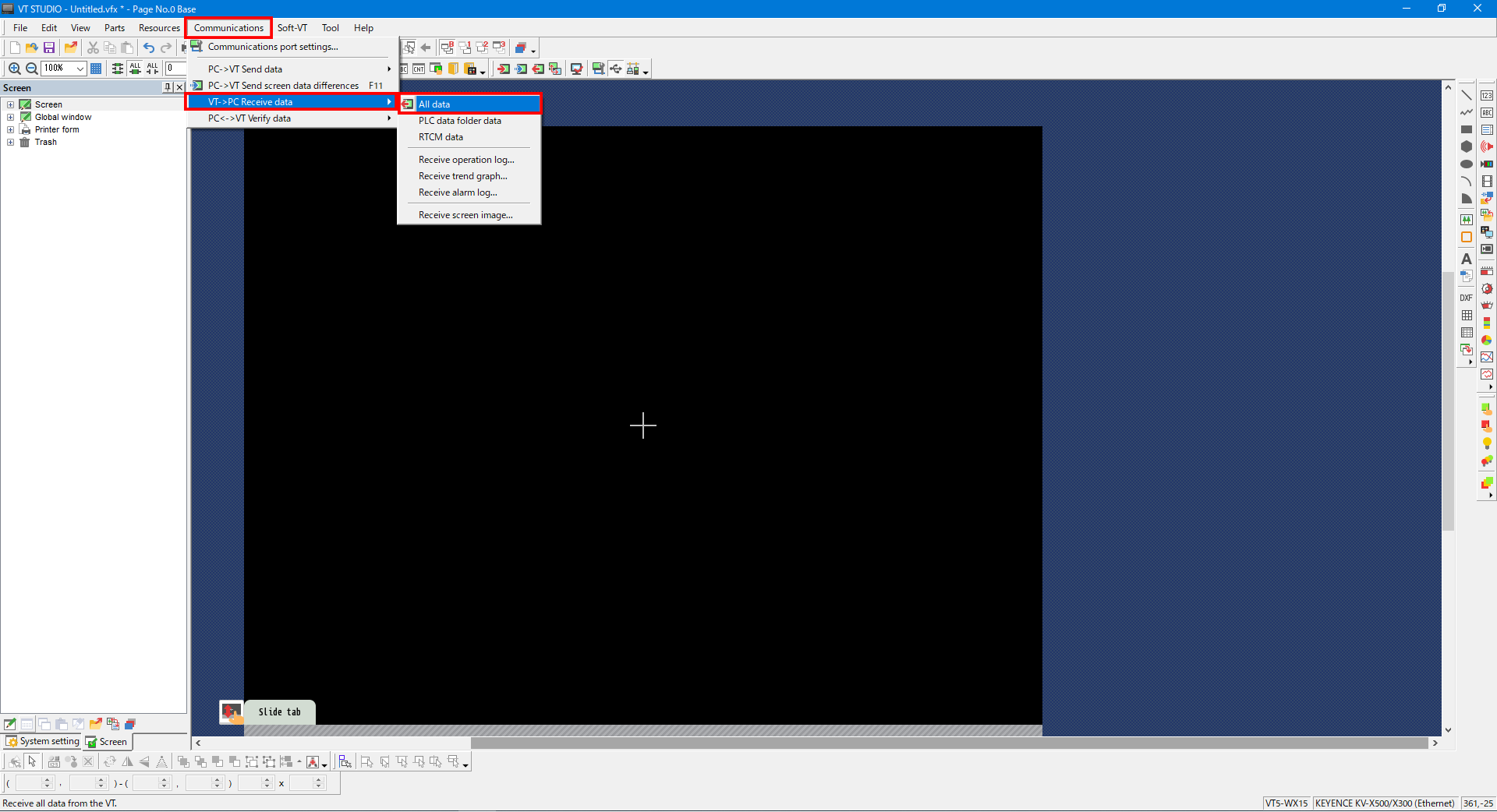

From the VT STUDIO menu, select [Communications] -> [VT -> PC Receive data] -> [All data] to read the screen data from the VT5.
