I want to change the HMI model for the screen data.

This section explains how to maintain the same screen data and change to a different VT5 model when changing the model of VT5 that is used.

Setting procedure

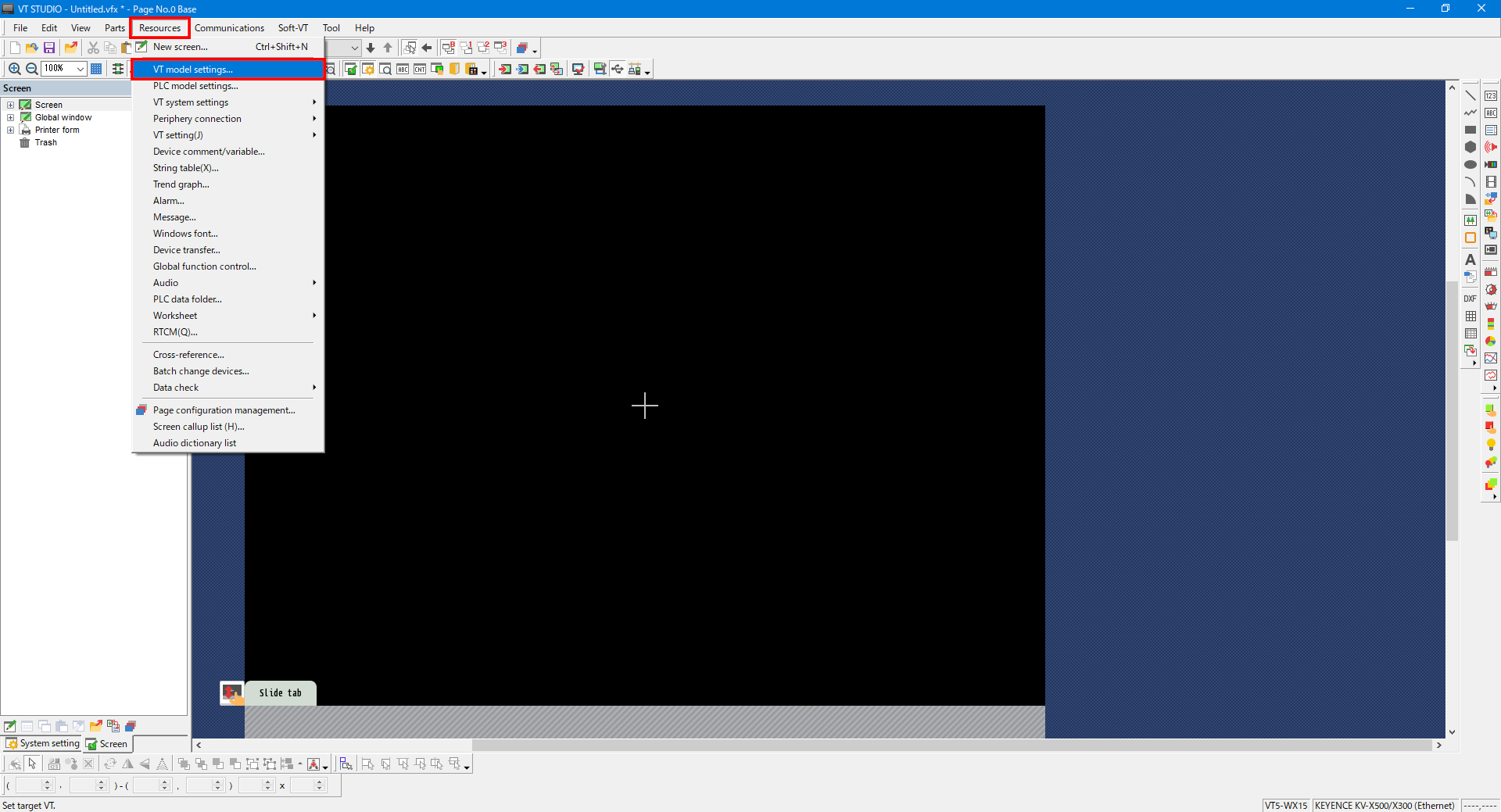

1. From the menu, select [Resources] -> [VT model settings].

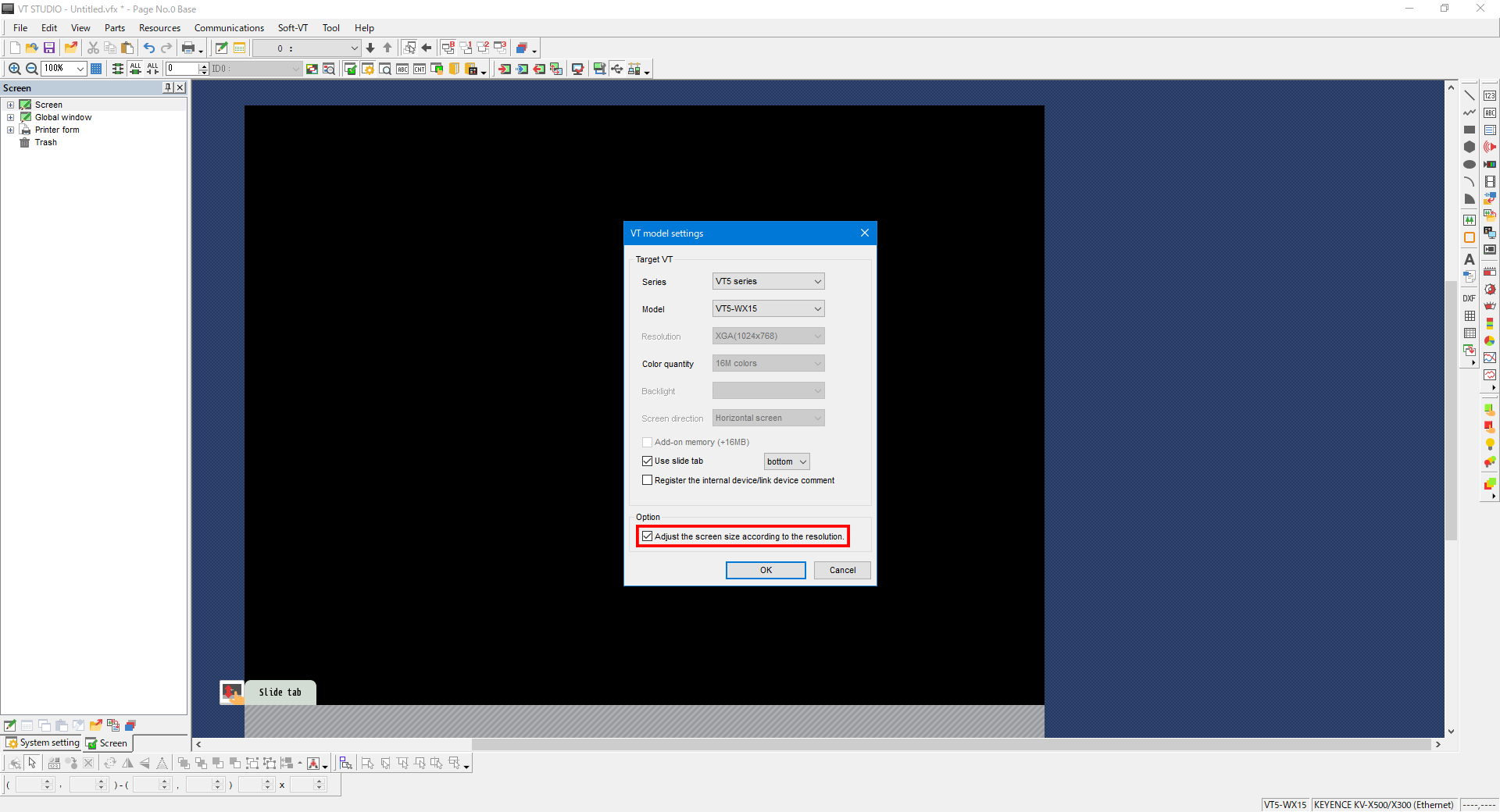

2. Select the model to change to. When changing to a model with a different resolution, select the “Adjust the screen size according to the resolution” check box.

XGA
1024 × 768
WVGA
800 × 480
VT5-WX15
VT5-WX12
VT5-X15
VT5-X12
VT5-X10
VT5-W10
VT5-W07
VT5-W07M

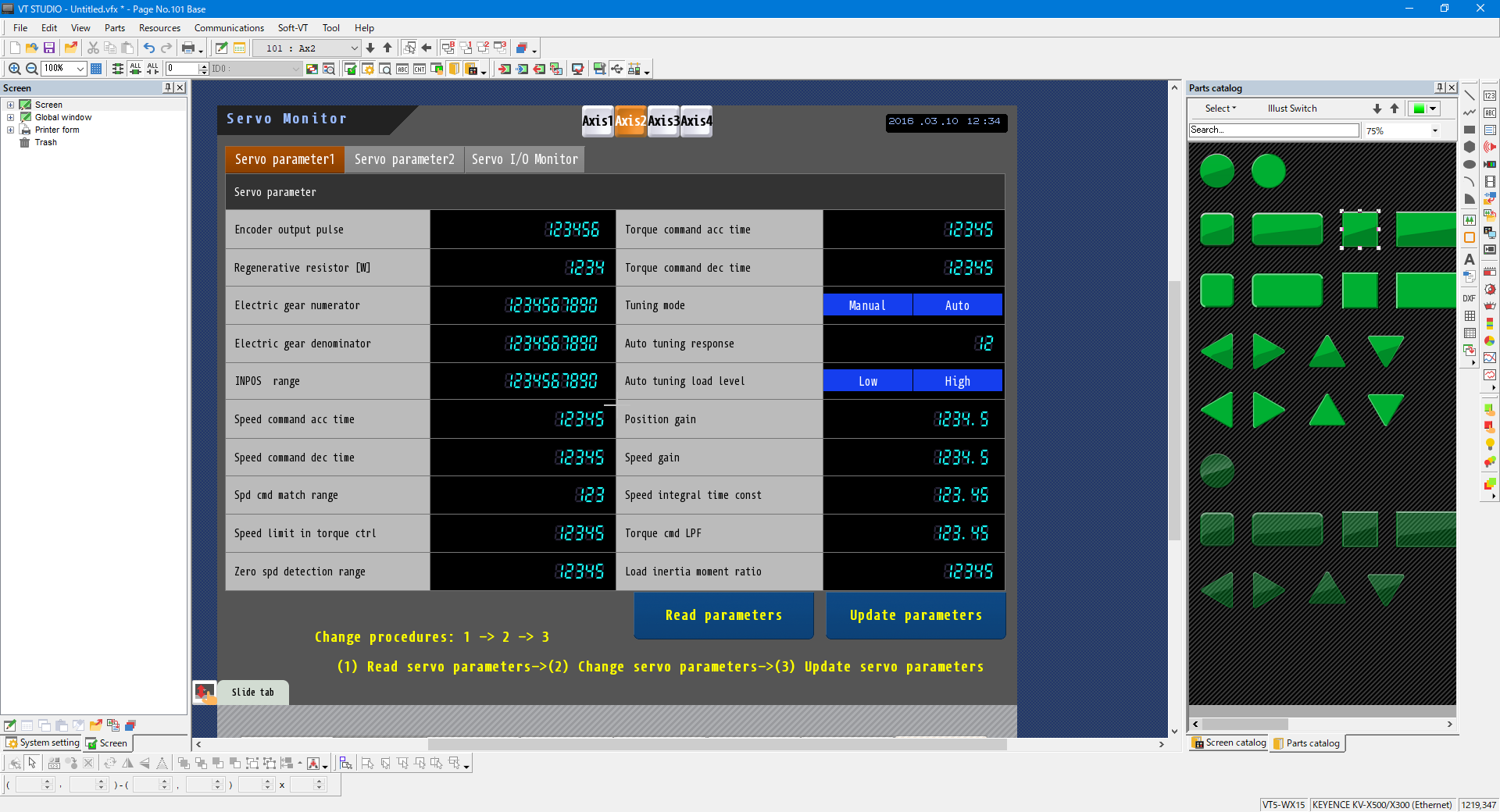

3. If you have changed to a model with a different resolution, there may be gaps in the screen, so make adjustments, such as by resizing parts, as necessary.
