I want to create an I/O list screen.
This section explains how to create an I/O list screen.
Importing device comments
1. Import from KV STUDIO device comments assigned to I/O.
Creating an I/O list
2. From the menu, select [View] -> [Device comment/variable list].

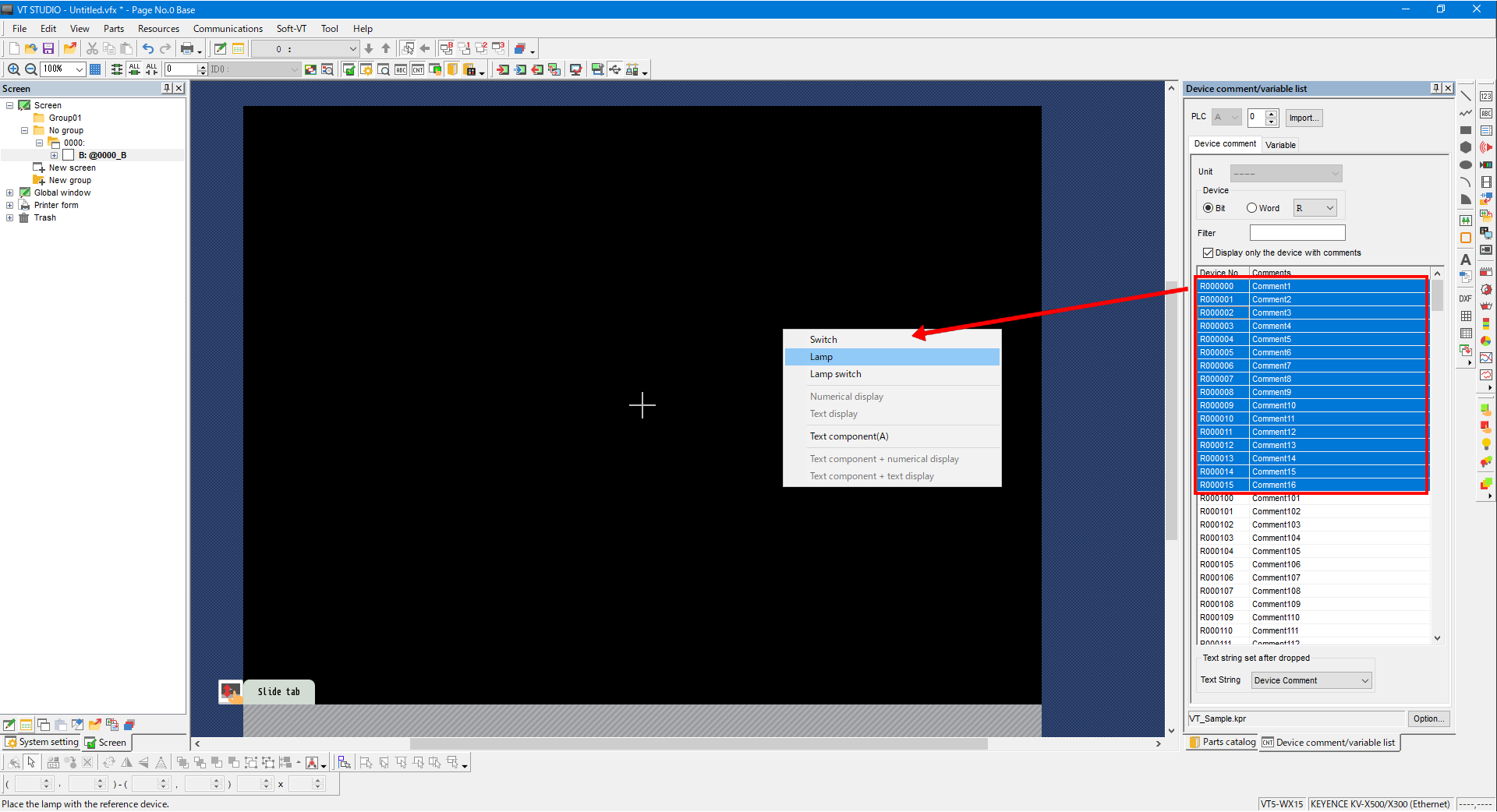

3. Select multiple I/O lists to create and drag and drop them to the screen to place them there. Select the part type.

4. The selected part is placed with the device comment registered as a nameplate.

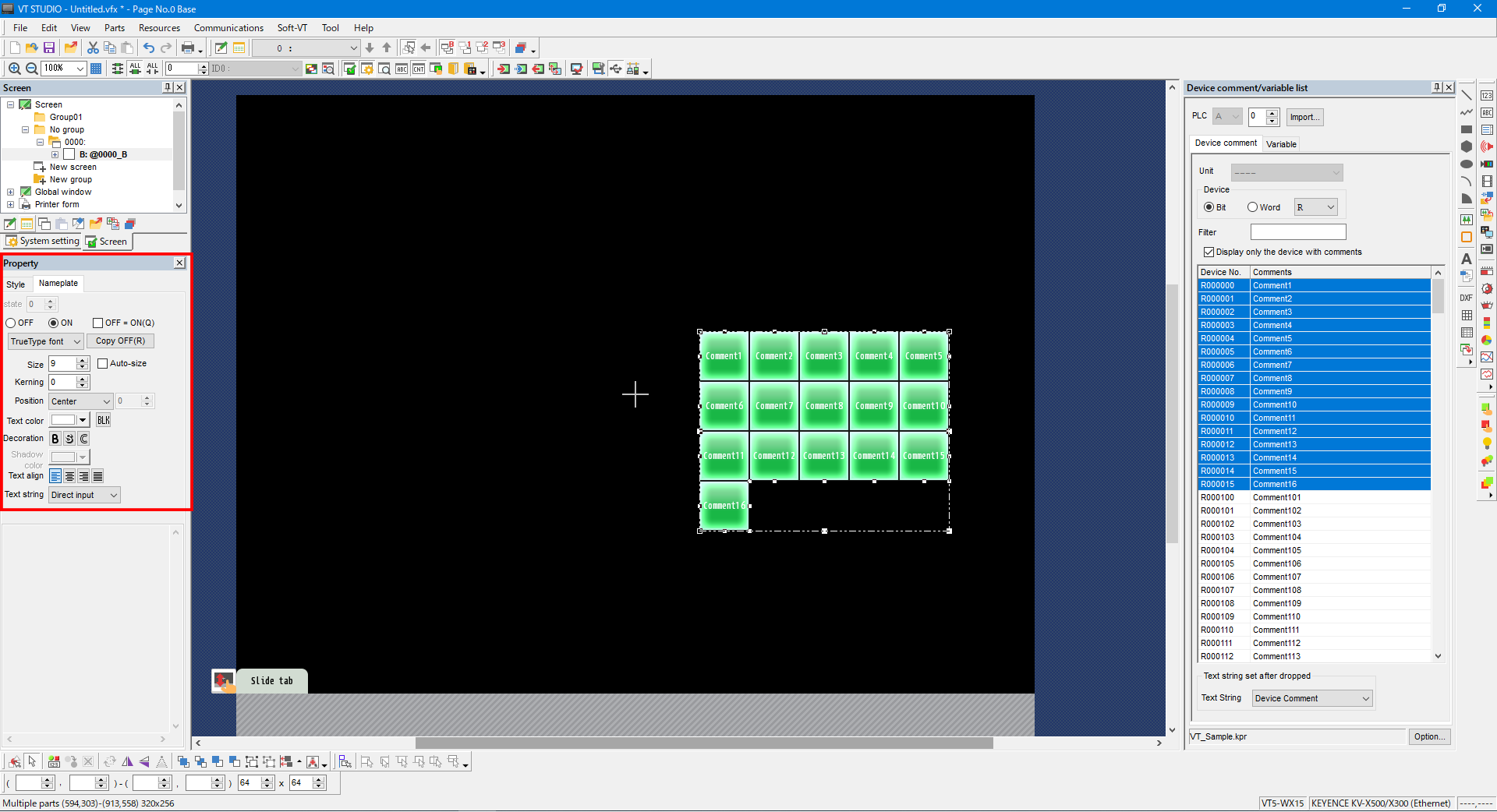

If you change the style with multiple created parts selected, the change is applied as a batch, allowing you to set the desired style.

5. Use the part alignment function to rearrange the created parts.
