I want to set the IP address from VT STUDIO.

This section explains how to change the IP address of the VT5 from VT STUDIO.
If you will change the IP address only from the touch panel, without using VT STUDIO, click the following link.

[Reference] I want to change the IP address of the touch panel.

Setting procedure

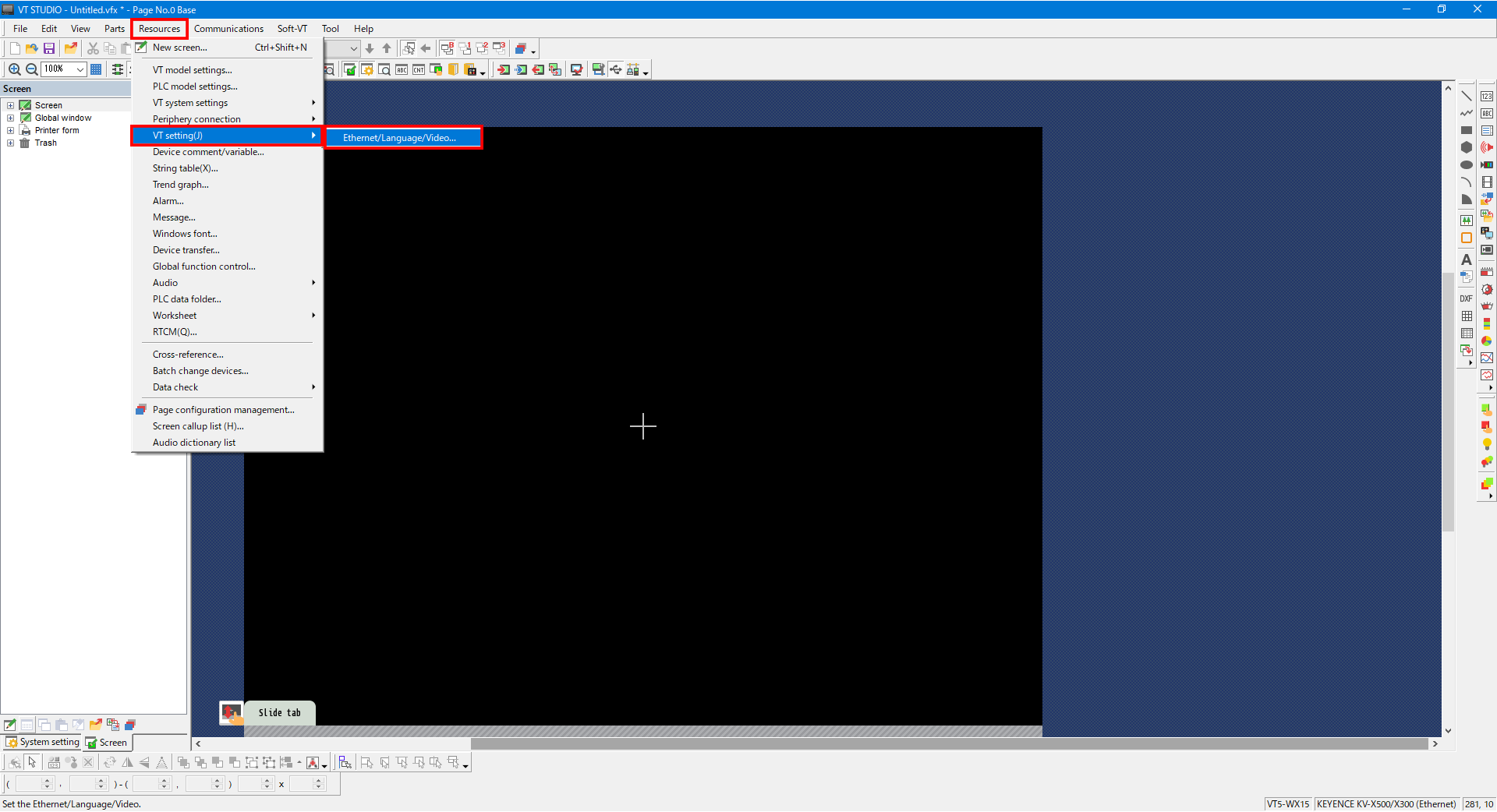

1. From the menu, select [Resources] -> [VT settings] -> [Ethernet/Language/Video].

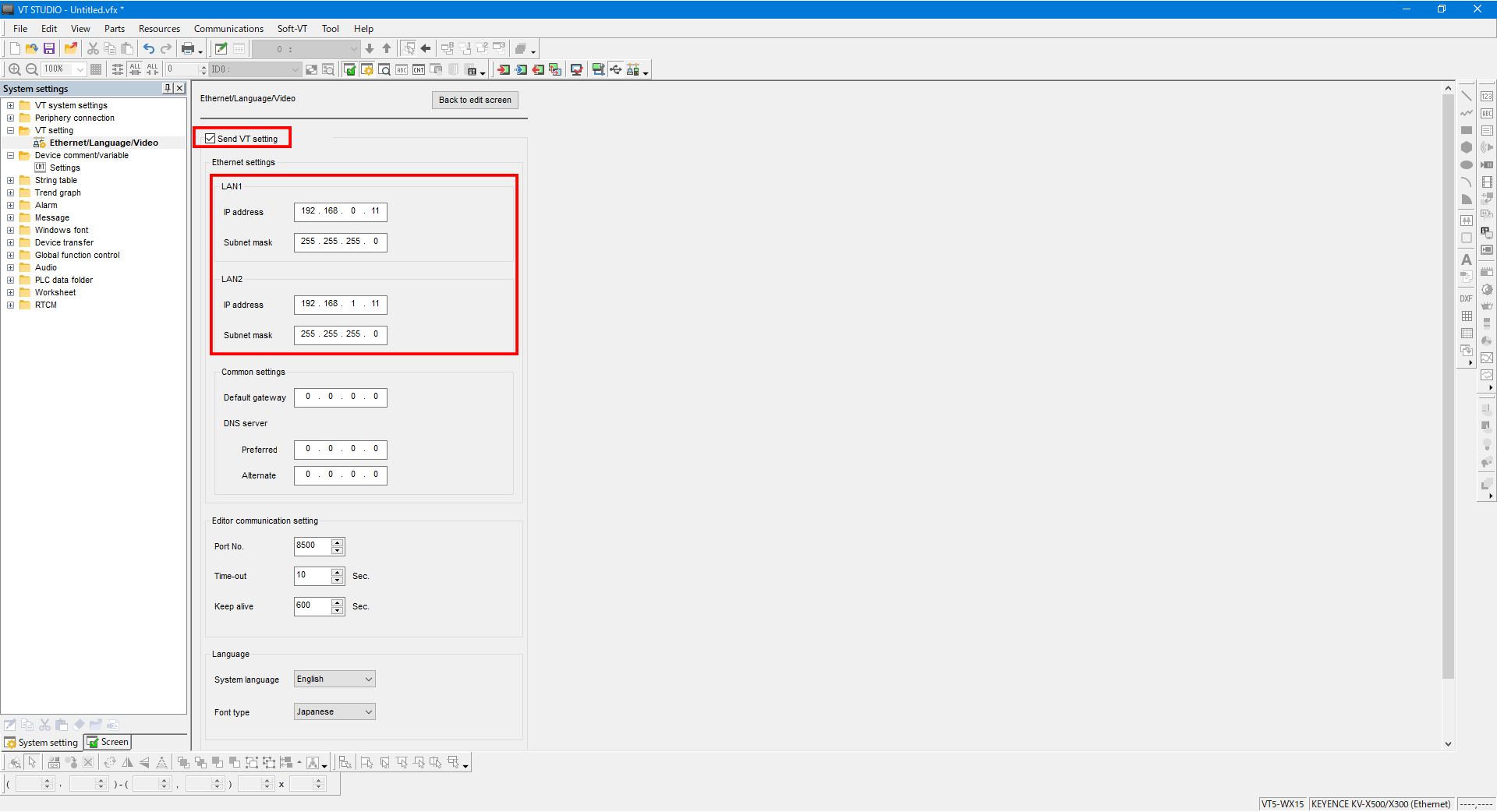

2. Select the “Send VT setting” check box, and then set the IP address.

  • *
    On the VT5-WX, specify different IP addresses for LAN1 and LAN2.

3. Transfer all the screen data.

[Reference] I want to transfer/read screens.
