I want to display the date and time.

This section explains how to display the current date and time.
This section explains how to place calendar parts and value display parts.

How to place calendar parts

This section explains how to place calendar parts from the part catalog.
For details on displaying the part catalog, see the following section.

[Reference] I want to select parts.

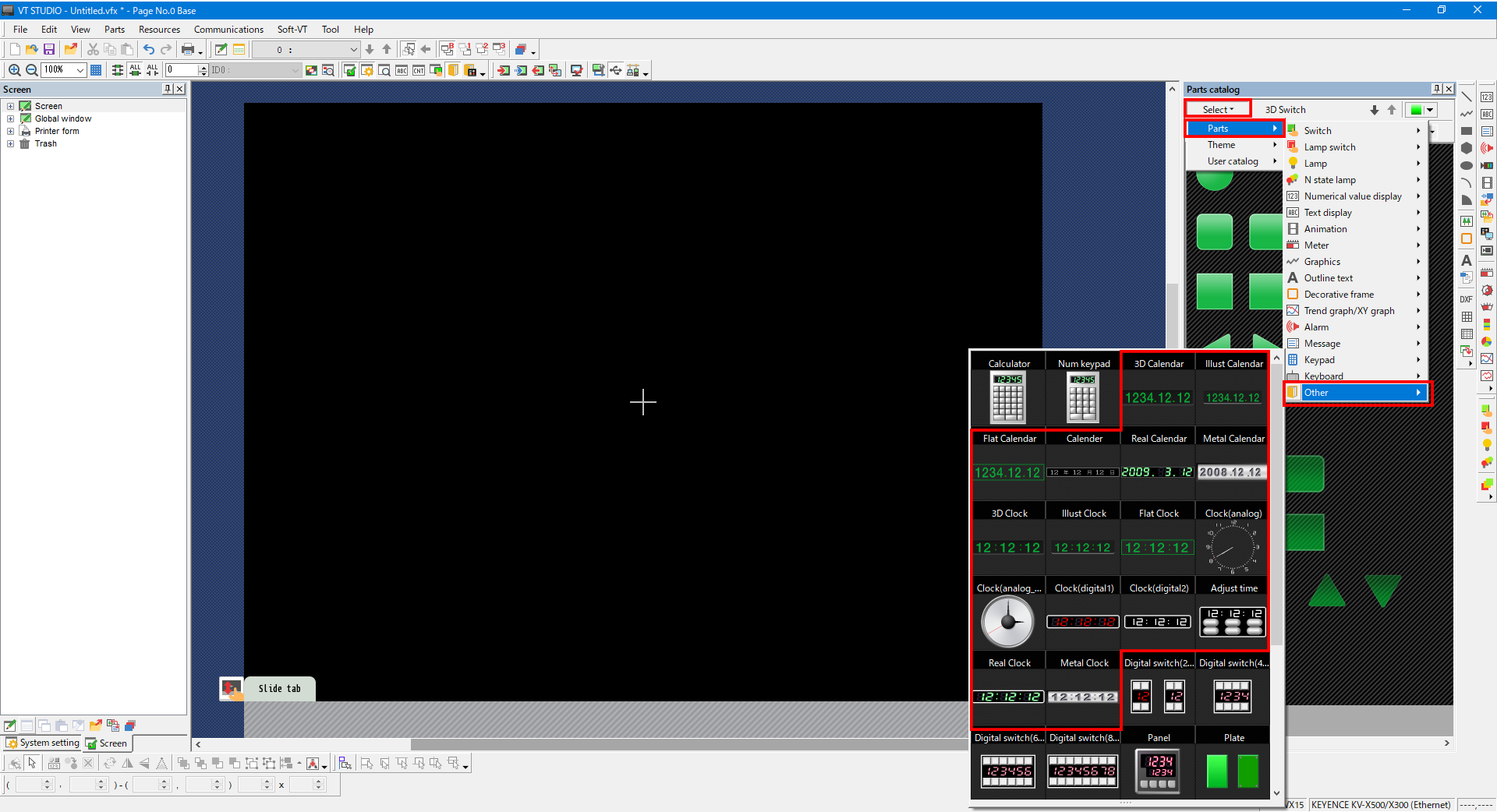

1. In the part catalog, select [Select] -> [Parts] -> [Other], and then select a calendar part and a clock part.

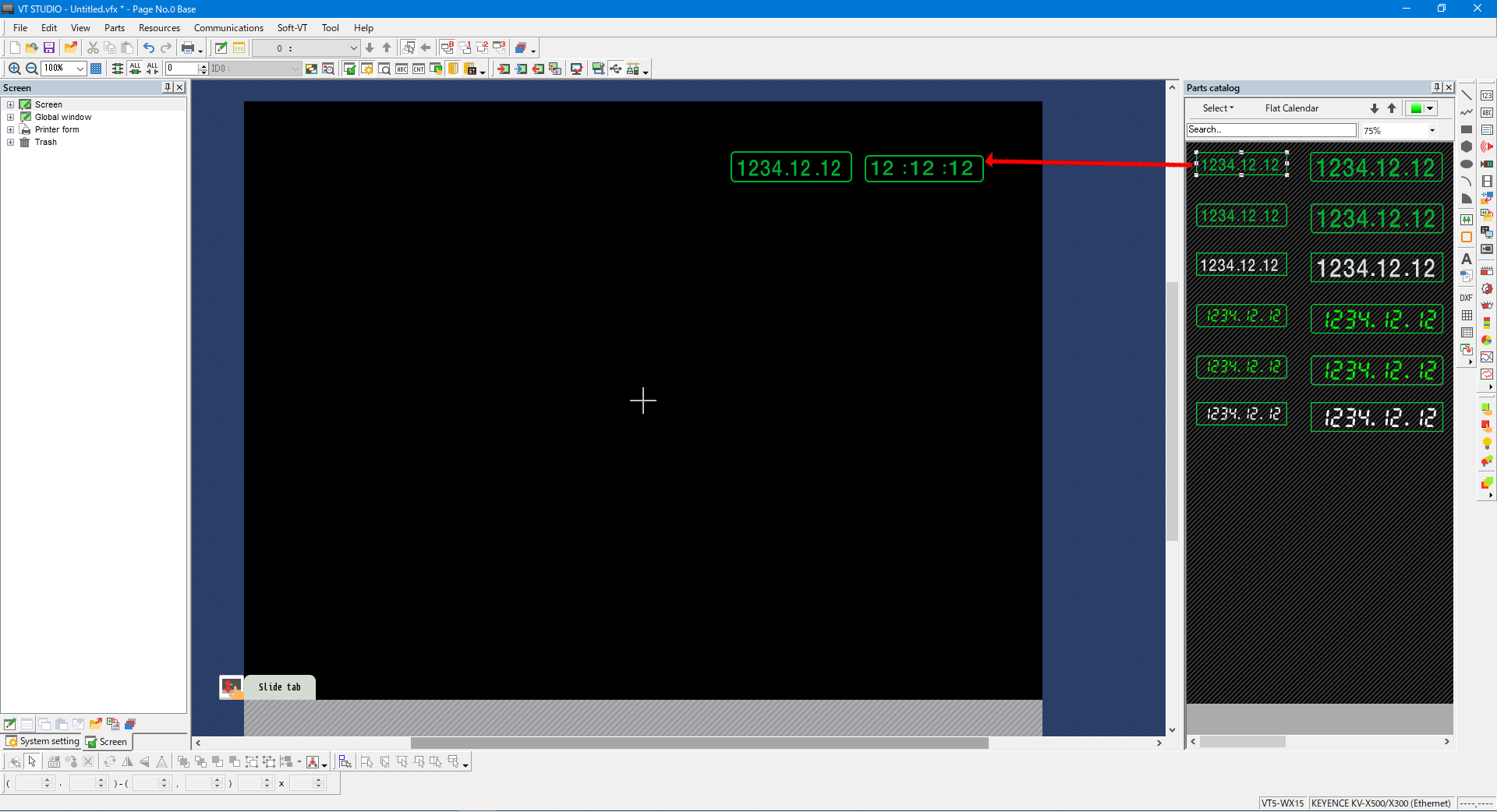

2. Drag and drop the parts to place them.

How to place value display parts

The date and time are stored in memory areas known as internal devices on the VT5, so display the date and time by displaying the values of these internal devices with value display parts.
The VT5 time information is stored in the following areas of internal devices (MW).

  • MW0010: year (00 to 99 indicating the last two digits of the year in the western calendar)
  • MW0011: month
  • MW0012: day
  • MW0018: hour
  • MW0019: minute
  • MW001A: second

Set value display parts for displaying these values.

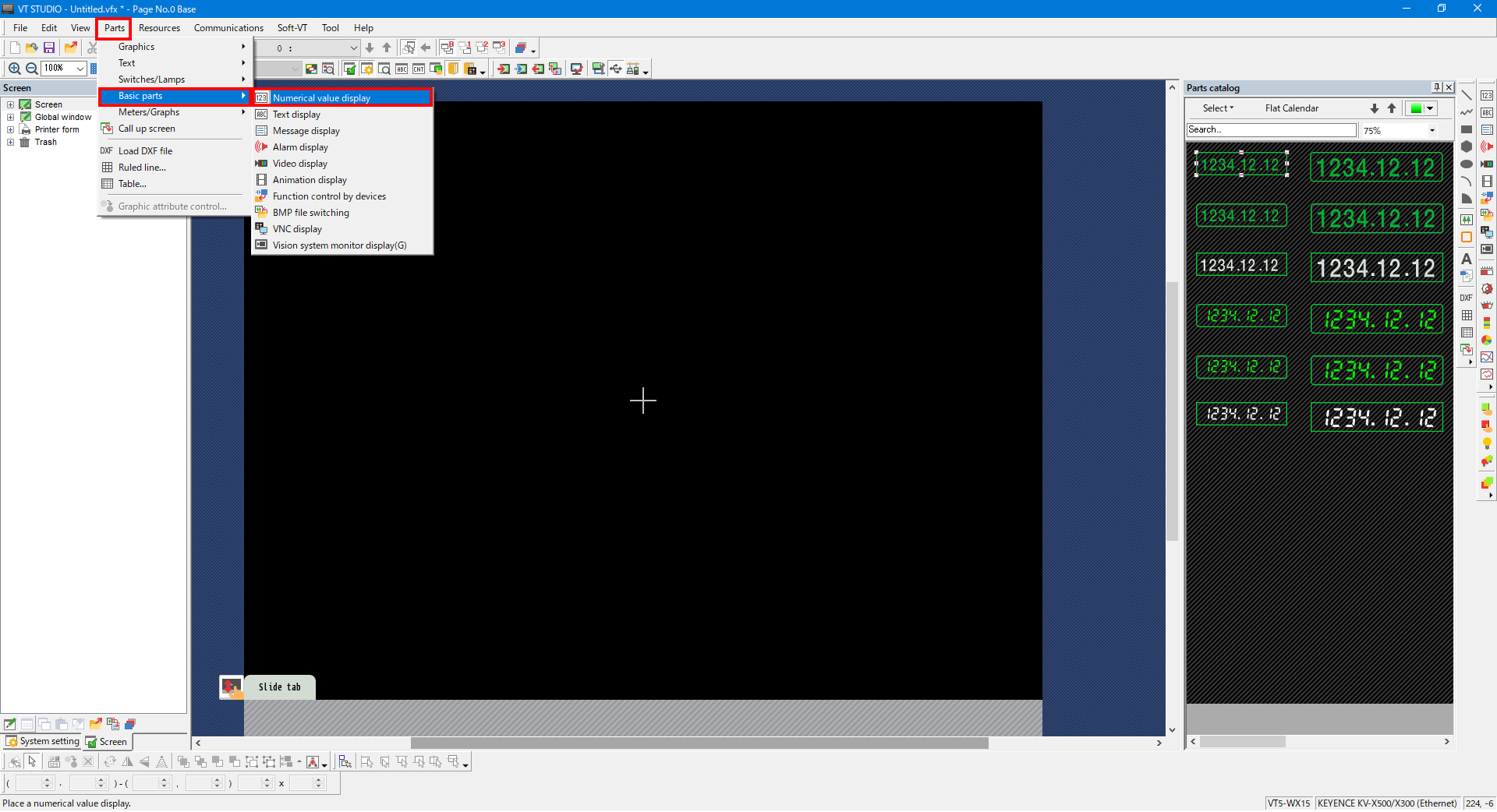

1. From the menu, select [Parts] -> [Basic parts] -> [Numerical value display], and then drag a value display part to place it on the screen.

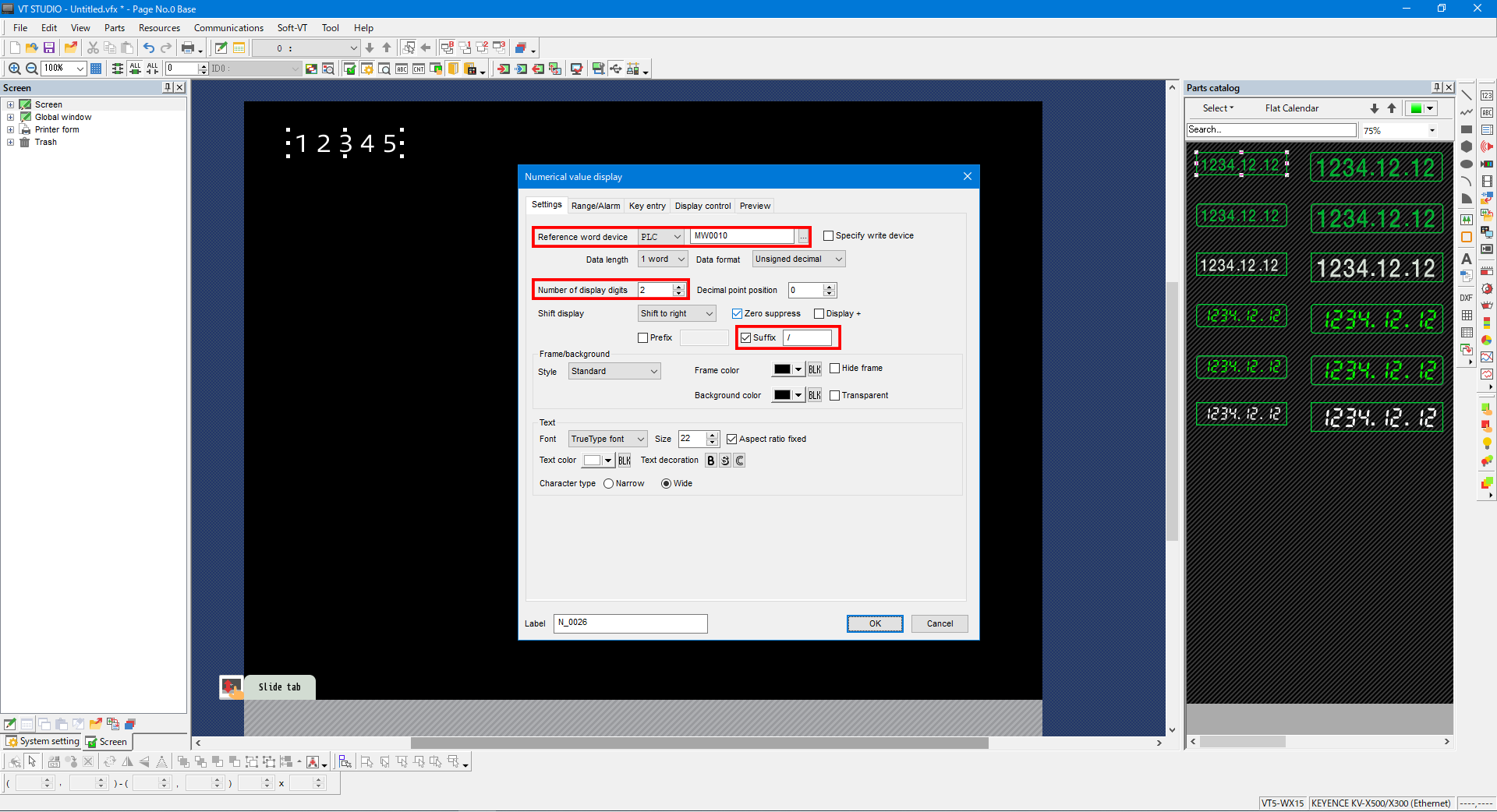

2. Double-click the placed value display part, and then set it as shown below.

  • Reference word device: MW0010
  • Number of display digits: 2
  • Suffix: / (slash)

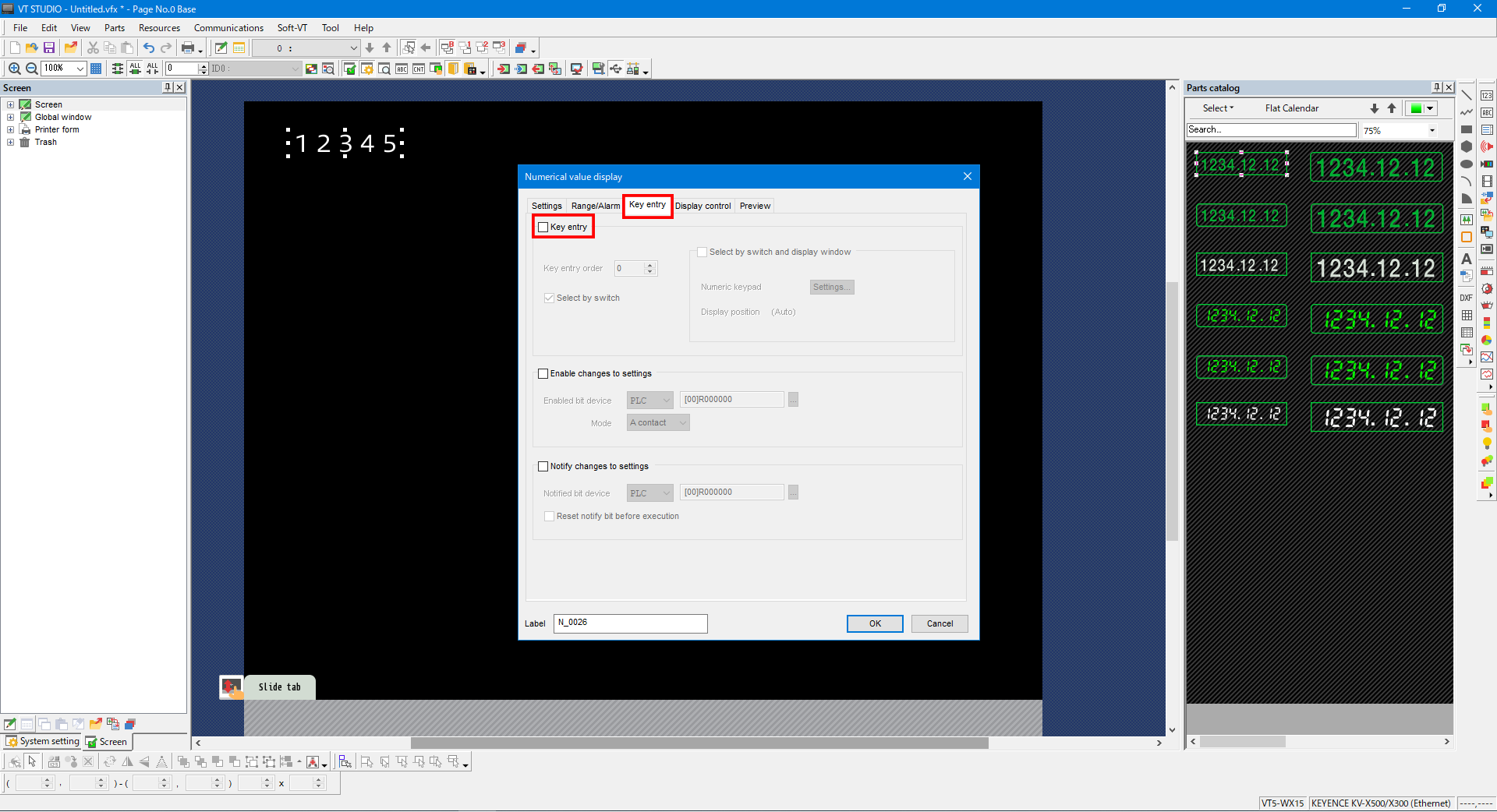

3. Switch to the “Key entry” tab and clear the “Key entry” check box.

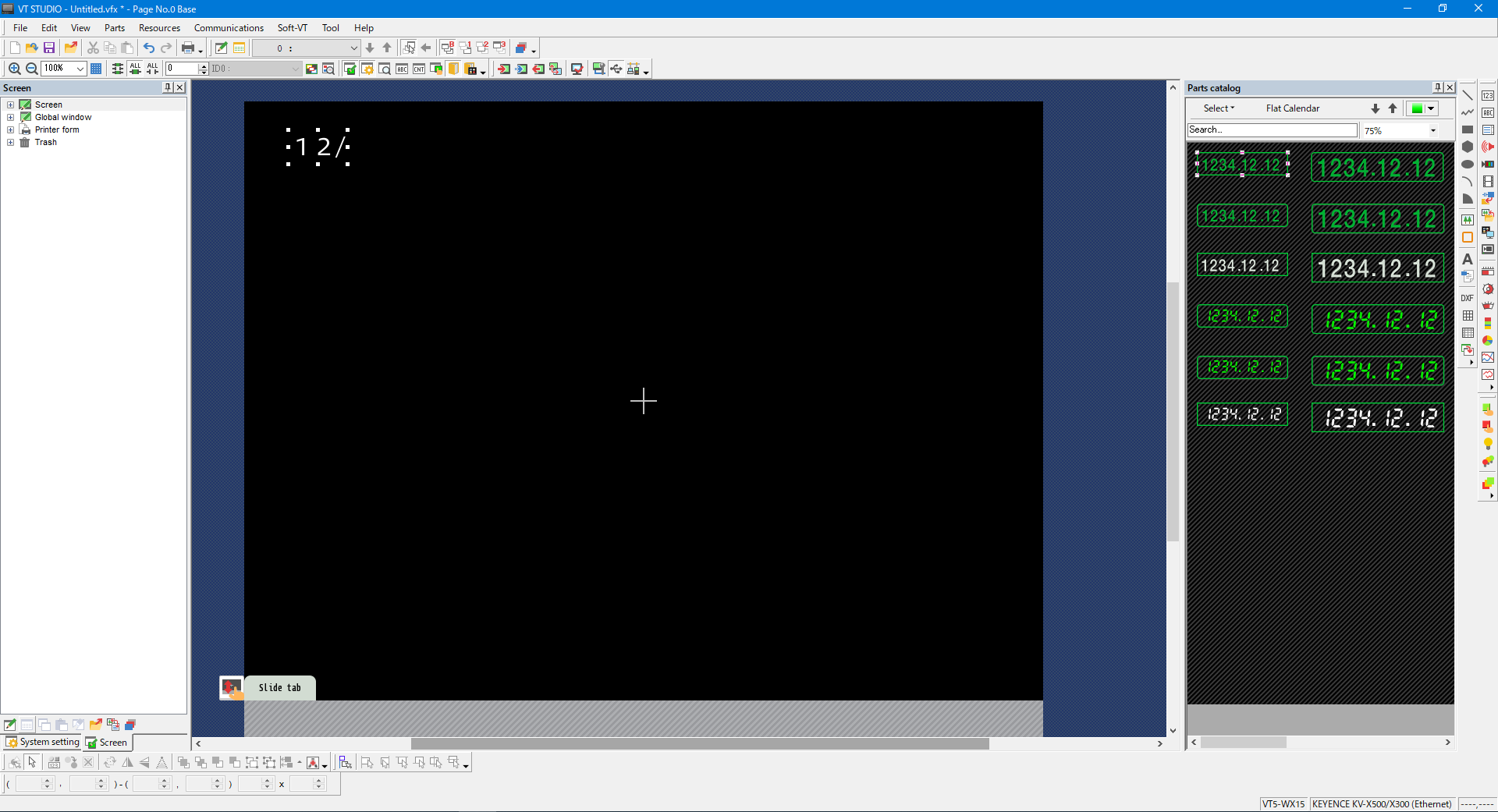

4. Click [OK] to place the following value display part.

5. Set the remaining month, day, hour, minute, and second parts.
Copy the “year” value display part and set the copies as shown below.

Setting item Month Day Hour Minute Second
“Settings” tab Reference word device MW0011 MW0012 MW0018 MW0019 MW001A
Number of display digits 2 2 2 2 2
Suffix / (slash) (none: blank) : (colon) : (colon) (none: blank)
“Key entry” tab Key entry Cleared

6. Align the copied parts as necessary.

[Reference] I want to adjust the part layout.
