Optical Comparator (Profile Projector)
Enhancing Dimensional Inspection with the KEYENCE IM-X1000 Series
Key Takeaways
- The IM-X1000 resolves inspection bottlenecks by automating measurements, significantly reducing time and operator dependency.
- Automated focus and edge detection eliminate operator-to-operator variation, ensuring consistent and repeatable measurement quality.
- Multi-sensor capabilities enable inspection of complex geometries and 3D features in a single, streamlined workflow.
- Automated data logging and built-in statistical tools strengthen process monitoring and simplify quality documentation.
Company: Rolled Threads Unlimited
Industry: Precision Manufacturing
Application: High-volume, high-accuracy dimensional inspection
Challenge
As demand increased and part complexity grew, Rolled Threads Unlimited sought a way to strengthen their inspection capabilities without slowing production. Traditional measurement methods—while accurate—required multiple steps, operator experience, and significant time to validate dimensions across complex components. Ensuring consistent, repeatable results at high throughput became a priority.
Rolled Threads Unlimited needed a system that could:
- Reduce inspection bottlenecks
- Improve measurement repeatability across multiple operators
- Capture numerous dimensions rapidly
- Support ongoing quality initiatives and continuous improvement
Solution: KEYENCE IM-X1000 Image Dimension Measurement System
To meet these requirements, Rolled Threads Unlimited invested in the KEYENCE IM-X1000 Series, an advanced optical inspection system designed for instant, high-precision measurement.

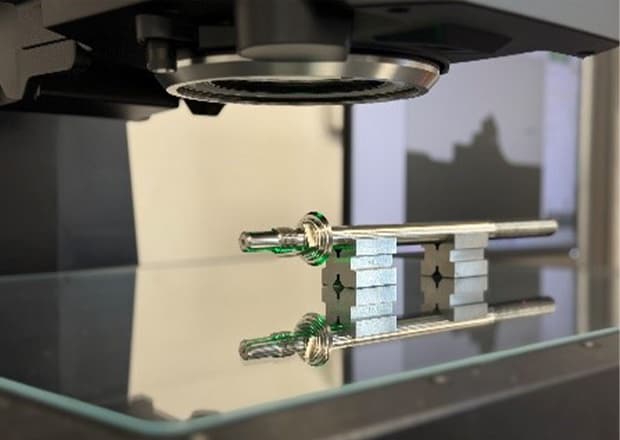

The IM-X1000 delivers automated dimensional inspection with the push of a button, enabling operators to measure even complex parts in seconds. Its one-touch operation, automated focus adjustment, and sub-pixel edge detection allow the system to eliminate operator influence and ensure consistent measurement quality.
Get detailed information on our products by downloading our catalog.
View Catalog
Implementation

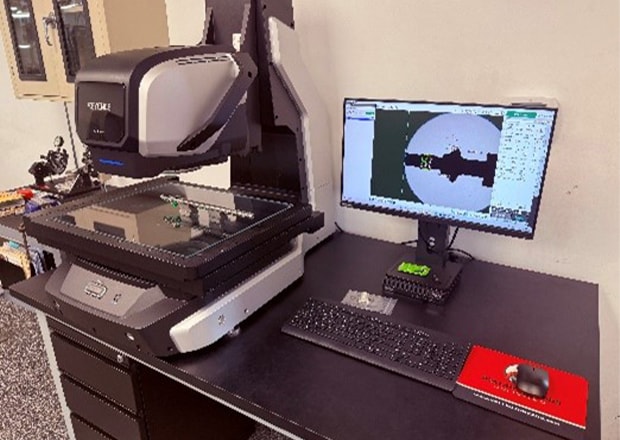

Once integrated into the inspection department, the IM-X1000 immediately streamlined the dimensional verification process:
- Multiple components can now be measured simultaneously
- Up to 5000 dimensions are captured in a single cycle
- Automatic drawing import simplifies programming
- Measurement data is recorded and stored automatically
- Built-in statistical tools (Cp/Cpk, trend graphs, and reporting) support process control
The system’s multi-sensor capabilities—including optical measurement, contact probe, laser profiling, and an optional 360° rotary unit—allow Rolled Threads Unlimited to validate more part features than before, including multi-surface and 3D characteristics.
Results
The addition of the KEYENCE IM-X1000 has significantly enhanced inspection speed, repeatability, and data reliability. Key outcomes include:
- Reduced inspection time: High-volume parts are now validated far faster than with traditional tools.
- Improved measurement consistency: Automated focus and edge detection eliminate operator-to-operator variation.
- Expanded measurement capability: Complex geometries and multi-surface features can now be captured in a single workflow.
- Enhanced quality control: Automated data logging and statistical reporting have strengthened process monitoring and documentation.
This investment directly supports Rolled Threads Unlimited’s mission of delivering defect-free, dimensionally verified parts to their customers.
Conclusion
By incorporating the KEYENCE IM-X1000 Series into their inspection department, Rolled Threads Unlimited has not only increased throughput but also reinforced their commitment to precision and continuous improvement. The system’s advanced measurement technology, combined with the company’s deep manufacturing expertise, ensures that every component meets the highest quality standards.
