Achieving Full 360° Precision with Rotary Indexers for Vision Measurement

Key Takeaways

Rotary indexers enable true 360° non-contact inspection for cylindrical and rotational parts.
Capture multiple isometric views in one automated routine to reveal hidden features.
Support full 3D GD&T (runout, total runout, coaxiality, cylindricity, roundness) with micron accuracy.
Integrating RU1 with the IM-X boosts throughput, automation, and inspection of fragile/reflective parts.

In precision manufacturing, inspecting a part from a single angle is no longer sufficient. As components become more complex—especially cylindrical parts like shafts, fasteners, medical implants, and connectors—360-degree measurement becomes essential. One of the most effective tools enabling this level of inspection is with a Rotary Indexer integrated with a Vision Measurement System. By rotating the part and capturing multiple isometric views in a single routine, rotary indexers unlock new levels of dimensional accuracy.

What Is a Rotary Indexer for Vision Measurement?

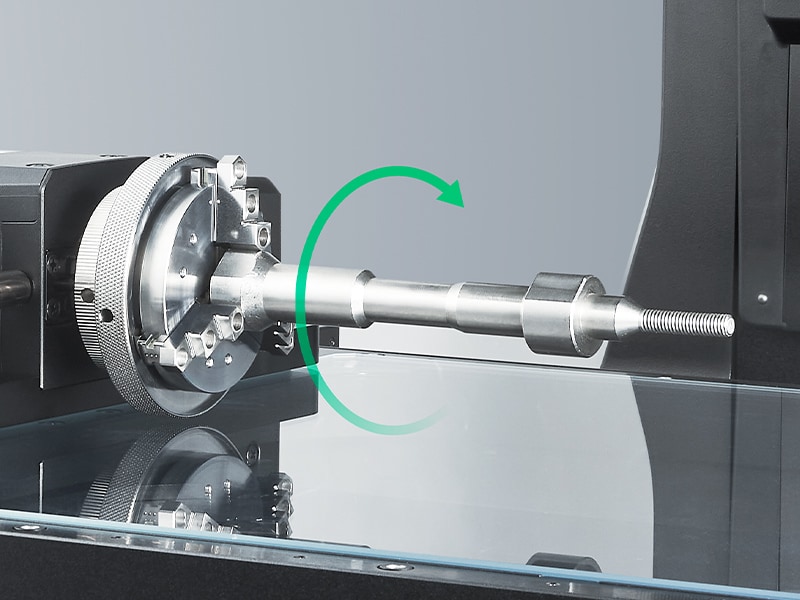

A Rotary Indexer is a precision-controlled rotating platform that can be integrated into a Vision Measurement System. It allows the part under inspection to be rotated to multiple indexed positions or continuously through 360 degrees. At each position, high-resolution cameras and telecentric optics capture data from different angles, enabling full circumferential analysis.

Unlike traditional metrology setups, which are limited to 2D or planar measurements, a Rotary Indexer combined with vision metrology provides true multi-angle visibility and non-contact inspection—without the need to reposition or re-fixture the part manually.

Key Capabilities:

360-Degree Measurement of parts
Multiple Isometric Views in a single automated routine
Seamless integration with 3D GD&T analysis software
Automatically index to an measure key features without operator intervention

The Power of Multiple Isometric Views

Rotary indexing enables the collection of multiple isometric views—side, angle, bottom, or even internal reflections—within one routine. This results in a comprehensive representation of the part's shape and condition, enabling:

Detection of features not visible from the top-down view
More accurate location of key features
Measurement of part symmetry and alignment
Angular comparison between different features

Inspecting 3D GD&T with Rotary Vision Systems

Rotary indexers enable automated, non-contact inspection of key 3D GD&T features with full 360° coverage:

Runout & Circular Runout: Runout captures surface variation as a part rotates, combining form and orientation errors. Circular runout focuses on a single cross-section. Rotary vision systems map these deviations with micron-level accuracy, ideal for shafts and rotating components.
Total Runout: Total runout measures both axial and radial variation across the full cylindrical surface. By rotating and scanning linearly, the system builds a full 3D profile—crucial for dynamic parts like spindles and drive shafts.
Coaxiality: Coaxiality checks that multiple cylindrical features share the same center axis. Rotary systems capture axis locations at different diameters to ensure alignment—vital for assemblies involving bearings, bushings, or couplings.
Cylindricity: Cylindricity assesses how well a surface conforms to an ideal cylinder. Combining circular and axial data, the system identifies form deviations that impact uniformity and performance in parts like pistons and rollers.
Roundness: Roundness evaluates consistency of a circular cross-section. The rotary system captures multiple angles in real time, producing a precise form profile—essential for seals, gears, and bearing fits.

Benefits of the KEYENCE RU1 Unit

Integrating the RU1 with the IM-X system transforms inspection capabilities, especially for turned parts, cylindrical features, and symmetrical geometries.

Key Advantages:

Comprehensive 3D Inspection: Capture all relevant surfaces in a single routine
Automated 360° Measurement: No manual repositioning or part flipping
Increased Throughput: Full form and orientation checks with minimal operator intervention
Non-Contact Accuracy: Perfect for fragile, reflective, or smaller parts
GD&T Analysis: Ideal for compliance to advanced geometric tolerances

Real-World Applications of 360-Degree Vision Measurement

Rotary indexers are used in diverse industries where precision, repeatability, and speed are essential:

Medical Device Manufacturing: Inspect stents, bone screws, dental implants, and catheter components
Aerospace: Measure engine shafts, couplings, and precision spacers for runout and coaxiality
Automotive: Evaluate gear shafts, pistons, and rotating assemblies for roundness and cylindricity
Electronics & Connectors: Inspect pins, contacts, and hybrid connectors for alignment and concentricity

Conclusion: Elevating Metrology with Rotary-Enabled Vision Systems

As manufacturing tolerances tighten and part geometries become more complex, Rotary Indexers for Vision Measurement offer an essential upgrade to traditional metrology. By enabling 360-degree measurement, capturing multiple isometric views, and supporting full 3D GD&T inspection, rotary systems drastically improve quality assurance for cylindrical and rotational parts.

For manufacturers looking to boost inspection capability without sacrificing speed or precision, rotary-integrated vision systems are not just beneficial—they are transformative.
