CMM (Coordinate Measuring Machine)
CMM for Heavy Machinery: Precision Inspection for Construction and Agriculture
Heavy machinery construction is difficult. Every frame, bolt, and gear needs to be precisely placed. Manufacturers can get it right the first time with the use of CMM for heavy machinery. When you're working with large equipment parts, traditional measurement instruments lack capabilities.
How CMM Machines Are Used in the Heavy Machinery Industry
Consider measuring the arm of an excavator or the blade of a bulldozer. These components have intricate forms and weigh thousands of pounds. You can't merely use calipers and a ruler. These large tasks are completed by CMM machines, which measure 3D points accurately on the surface using a probe.
Dimensional measurements for heavy machinery work differently for smaller parts. Operators use cranes to load components onto the CMM table, then program the machine to measure key points automatically.
This data shows if parts match the design. Problems appear immediately when fixes are cheap and easy. Finding bad parts on the assembly line costs ten times more.
Choosing the Right CMM for Heavy Machinery Applications
Not every CMM can accommodate heavy machinery parts. Large components require a measuring system with enough volume to capture the entire piece, as well as the weight capacity to support parts that may weigh several tons. Accuracy needs also vary depending on the part’s function and how tight the tolerances must be.
CMM solutions in this industry come with unique challenges, and that’s exactly what the WM Series was designed to solve. Built for demanding applications, it makes measuring even the largest parts possible, while still delivering the kind of precision that traditional methods simply can’t achieve.
Applications in Construction Equipment
Construction equipment takes a beating. Excavator buckets slam into rocks and concrete, and bulldozer blades push through tough soil and debris. 3D dimensional inspection makes sure these parts can handle the punishment before they leave the factory.
Complex shapes are everywhere in construction equipment. Hydraulic cylinders need perfect bore dimensions for seals to work properly. Track components must fit together precisely, or they'll wear out fast. Regular measuring tools simply can't check these features accurately.
The inspection process becomes much faster and more reliable with CMM technology. The documentation is better, too, which helps with quality certifications and customer requirements.
Applications in Agricultural Machinery
Farm equipment operates in some of the harshest conditions imaginable. Dust gets into everything, and moisture causes corrosion. A CMM for large-scale parts helps prevent failures that could shut down farming operations during busy seasons. CMMs help:
- Combine threshing mechanisms that have exact clearances to avoid grain damage.
- Conveyor systems maintain smooth operation for efficient crop movement.
- Grain elevators achieve precise angles for proper flow.
- Tractor transmissions meet specifications for enormous torque loads.
- Engine blocks maintain strict tolerances despite temperature changes.
Why CMM Technology Matters for Heavy Machinery
Catching problems late in production is expensive. If a defective part makes it into a finished machine, fixing it could mean tearing down the entire assembly. Wide area measurement identifies these issues early, when adjustments are far less costly.
The KEYENCE CMM product line handles the special requirements of heavy machinery manufacturing. These systems manage oversized components while delivering the accuracy levels that safety regulations demand.
Leveraging 3D Inspections in Agriculture
During planting and harvesting, agricultural equipment is subject to seasonal rushes. Farmers may lose entire growing seasons as a result of delays. Complex shapes that are impossible to capture with simple tools are captured by three-dimensional measurement. For optimal soil flow, plow curves require precise profiles, and for precise planting, seed meters need precise measurements. These complex features are successfully measured by CMM technology.
Enhancing Fruit Harvesting with Precision Technology
Fruit harvesting equipment needs the right touch. Too rough and you bruise the fruit, reducing its value. Too gentle and harvest takes forever. Getting this balance right requires precise manufacturing. Conveyor systems are equally important. Perfect belt tracking prevents fruit spilling. Proper roller spacing keeps products moving smoothly. Small measurement errors can ruin entire harvests.
Applications of the WM Series in Shipbuilding

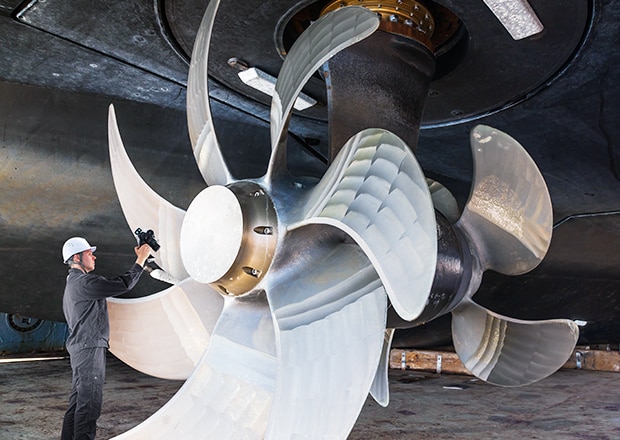

Heavy machinery principles also apply to shipbuilding. Ship components are massive and require exceptional accuracy for safety reasons. Hull plates must fit together perfectly, and propeller shafts need precise alignment for efficient operation.
The WM Series handles these marine applications just as well as traditional heavy machinery. Engine mounts, deck structures, and propulsion components all benefit from comprehensive CMM inspection. Put simply, quality control improves dramatically when you can measure everything accurately.
Contact us today to discover how the WM Series can enhance your CMM for heavy machinery operations.
FAQs
What Makes the WM Series Ideal for Large Construction Projects?
The WM Series measures huge parts quickly and accurately. It's built to withstand shop floors and can handle oversized components in one setup.
How do 3D Inspections Improve Agricultural Machinery?
3D inspections capture complex shapes that traditional tools miss, like curved plow surfaces and harvesting mechanisms, preventing field failures during planting and harvest when downtime costs farmers the most.
Can the WM Series be Adapted for Shipbuilding Applications?
Yes, the WM Series is an excellent fit for marine components. It delivers the precision needed for maritime safety standards while measuring everything from hull plates and propeller shafts to engine mounts and deck structures.
What are the Main Benefits of Using the WM Series in Construction?
The system reduces inspection time while increasing accuracy. It catches problems before expensive assembly and provides documentation for safety certifications. This prevents costly field failures of excavators, bulldozers, and other equipment.
How Does WM Series Technology Enhance Fruit Harvesting?
The technology measures the picking mechanisms to prevent fruit bruising. It also verifies conveyor alignment and roller spacing to avoid product damage during harvest.
